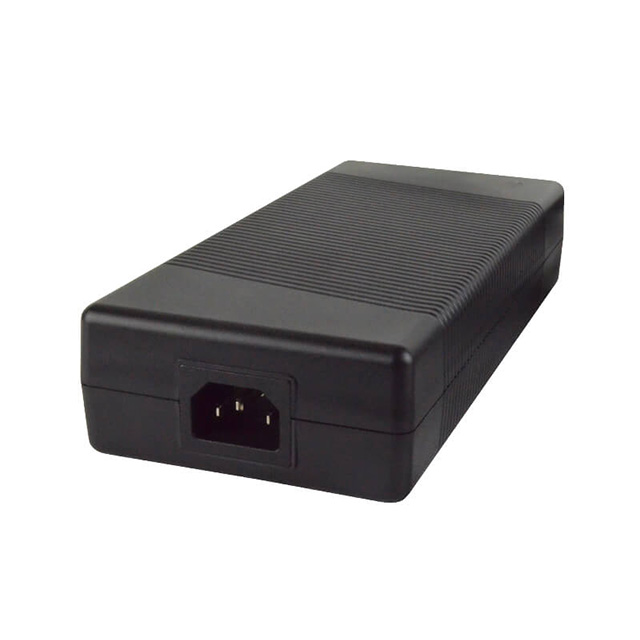

SDI250 Series

Manufacturer: CUI Inc.

Catalog

DESKTOP AC ADAPTERS 240W 12V 20A 6 PIN PLUG EU CABLE

Part	Output Connector	Output Connector	Input Connector	Voltage - Input [Max]	Voltage - Input [Min]	Approval Agency	Applications	Input Type	Region Utilized	Cord Length	Cord Length	Standard Number	Voltage - Output	Power (Watts)	Current - Output (Max) [Max]	Weight	Weight	Efficiency	Operating Temperature [Max]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	No Load Power Consumption	Form	Weight [custom]	Weight [custom]
CUI Inc. SDI250-12-U2-P219	Rectangular	6 Position	IEC 320-C14	264 VAC	90 VAC	CB Scheme CSA EN FCC IEC PSE UL	ITE (Commercial)	Cord (Sold Separately)	Europe	1.2 m	47.2 in	55024 55032 Class B 60950-1 61000-3-2 61000-3-3 62368-1 C22.2 No. 60950-1	12 V	240 Watts	20 A	1.1 kg	2.4 lbs	CoC Tier 2 Level VI	40 °C	3.7 in	94 mm	8.03 in	1.71 in	204 mm	43.5 mm	150 mW	Desktop (Class I)
CUI Inc. SDI250-19-U2-P219	Rectangular	6 Position	IEC 320-C14	264 VAC	90 VAC	CB Scheme CSA EN FCC IEC PSE UL	ITE (Commercial)	Cord (Sold Separately)	Europe	1.2 m	47.2 in	55024 55032 Class B 60950-1 61000-3-2 61000-3-3 62368-1 C22.2 No. 60950-1	19 V	251 W	13.2 A			Level VI	40 °C	3.7 in	94 mm	8.03 in	1.71 in	204 mm	43.5 mm	210 mW	Desktop (Class I)	2.3 lbs	1 kg
CUI Inc. SDI250-24-U-P219	Rectangular	6 Position	IEC 320-C14	264 VAC	90 VAC	CB Scheme CSA EN FCC IEC PSE UL	ITE (Commercial)	Cord (Sold Separately)	International	1.2 m	47.2 in	55024 55032 Class B 60950-1 61000-3-2 61000-3-3 62368-1 C22.2 No. 60950-1	24 V	250 W	10.4 A			CoC Tier 2 Level VI	40 °C	3.7 in	94 mm	8.03 in	1.71 in	204 mm	43.5 mm	150 mW	Desktop (Class I)	2.3 lbs	1 kg
CUI Inc. SDI250-24-UC-P219	Rectangular	6 Position	IEC 320-C14	264 VAC	90 VAC	CB Scheme CSA EN FCC IEC PSE UL	ITE (Commercial)	Cord (Sold Separately)	North America	1.2 m	47.2 in	55024 55032 Class B 60950-1 61000-3-2 61000-3-3 62368-1 C22.2 No. 60950-1	24 V	250 W	10.4 A			CoC Tier 2 Level VI	40 °C	3.7 in	94 mm	8.03 in	1.71 in	204 mm	43.5 mm	150 mW	Desktop (Class I)	2.3 lbs	1 kg
CUI Inc. SDI250-56-U-P219	Rectangular	6 Position	IEC 320-C14	264 VAC	90 VAC	CB Scheme CSA EN FCC IEC PSE UL	ITE (Commercial)	Cord (Sold Separately)	International	1.2 m	47.2 in	55024 55032 Class B 60950-1 61000-3-2 61000-3-3 62368-1 C22.2 No. 60950-1	56 V	251 W	4.48 A			Level VI	40 °C	3.7 in	94 mm	8.03 in	1.71 in	204 mm	43.5 mm	210 mW	Desktop (Class I)	2.3 lbs	1 kg
CUI Inc. SDI250-48-UC-P219	Rectangular	6 Position	IEC 320-C14	264 VAC	90 VAC	CB Scheme CSA EN FCC IEC PSE UL	ITE (Commercial)	Cord (Sold Separately)	North America	1.2 m	47.2 in	55024 55032 Class B 60950-1 61000-3-2 61000-3-3 62368-1 C22.2 No. 60950-1	48 V	250 W	5.2 A			Level VI	40 °C	3.7 in	94 mm	8.03 in	1.71 in	204 mm	43.5 mm	210 mW	Desktop (Class I)	2.3 lbs	1 kg
CUI Inc. SDI250-48-U-P219	Rectangular	6 Position	IEC 320-C14	264 VAC	90 VAC	CB Scheme CSA EN FCC IEC PSE UL	ITE (Commercial)	Cord (Sold Separately)	International	1.2 m	47.2 in	55024 55032 Class B 60950-1 61000-3-2 61000-3-3 62368-1 C22.2 No. 60950-1	48 V	250 W	5.2 A			Level VI	40 °C	3.7 in	94 mm	8.03 in	1.71 in	204 mm	43.5 mm	210 mW	Desktop (Class I)	2.3 lbs	1 kg
CUI Inc. SDI250-19-UC-P219	Rectangular	6 Position	IEC 320-C14	264 VAC	90 VAC	CB Scheme CSA EN FCC IEC PSE UL	ITE (Commercial)	Cord (Sold Separately)	North America	1.2 m	47.2 in	55024 55032 Class B 60950-1 61000-3-2 61000-3-3 62368-1 C22.2 No. 60950-1	19 V	251 W	13.2 A			Level VI	40 °C	3.7 in	94 mm	8.03 in	1.71 in	204 mm	43.5 mm	210 mW	Desktop (Class I)	2.3 lbs	1 kg
CUI Inc. SDI250-19-U-P219	Rectangular	6 Position	IEC 320-C14	264 VAC	90 VAC	CB Scheme CSA EN FCC IEC PSE UL	ITE (Commercial)	Cord (Sold Separately)	International	1.2 m	47.2 in	55024 55032 Class B 60950-1 61000-3-2 61000-3-3 62368-1 C22.2 No. 60950-1	19 V	251 W	13.2 A			Level VI	40 °C	3.7 in	94 mm	8.03 in	1.71 in	204 mm	43.5 mm	210 mW	Desktop (Class I)	2.3 lbs	1 kg
CUI Inc. SDI250-48-U2-P219	Rectangular	6 Position	IEC 320-C14	264 VAC	90 VAC	CB Scheme CSA EN FCC IEC PSE UL	ITE (Commercial)	Cord (Sold Separately)	Europe	1.2 m	47.2 in	55024 55032 Class B 60950-1 61000-3-2 61000-3-3 62368-1 C22.2 No. 60950-1	48 V	250 W	5.2 A			Level VI	40 °C	3.7 in	94 mm	8.03 in	1.71 in	204 mm	43.5 mm	210 mW	Desktop (Class I)	2.3 lbs	1 kg
