SM111 Series

Catalog

MONOCRYST SOLAR CELL 147MW 4.15V

Part	Operating Temperature [Max]	Operating Temperature [Min]	Power (Watts) - Max [Max]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Voltage @ Pmpp	Voltage - Open Circuit	Type	Current - Short Circuit (Isc)	Package / Case	Current @ Pmpp

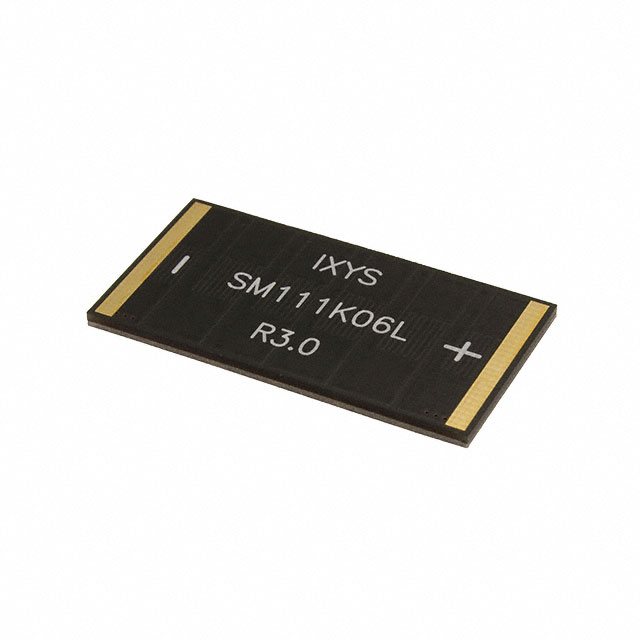

ANYSOLAR Ltd SM111K06L	90 °C	-40 C	147 mW	21 mm	42 mm	2.3 mm	0.09 in	0.83 "	1.65 in	3.35 V	4.15 V	Monocrystalline	46.7 mA	Cells	43.9 mA

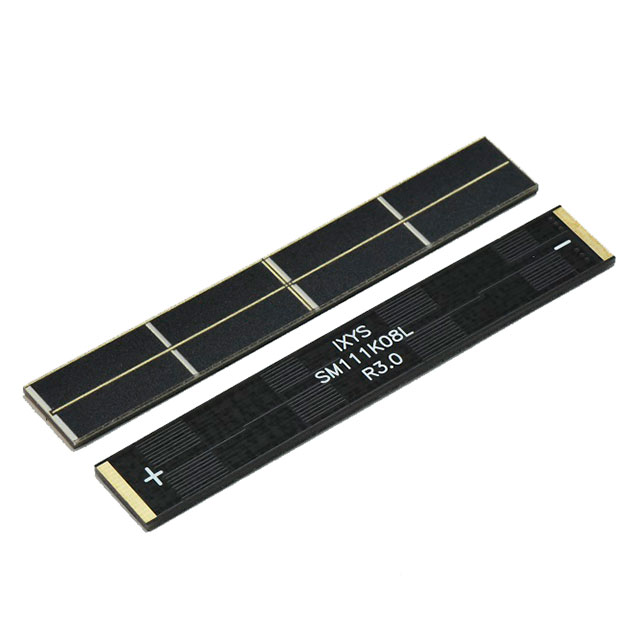

ANYSOLAR Ltd SM111K08L	90 °C	-40 C	196 mW	14 mm	87 mm	2 mm	0.08 "	0.55 "	3.43 "	4.46 V	5.53 V	Monocrystalline	46.7 mA	Cells	43.9 mA

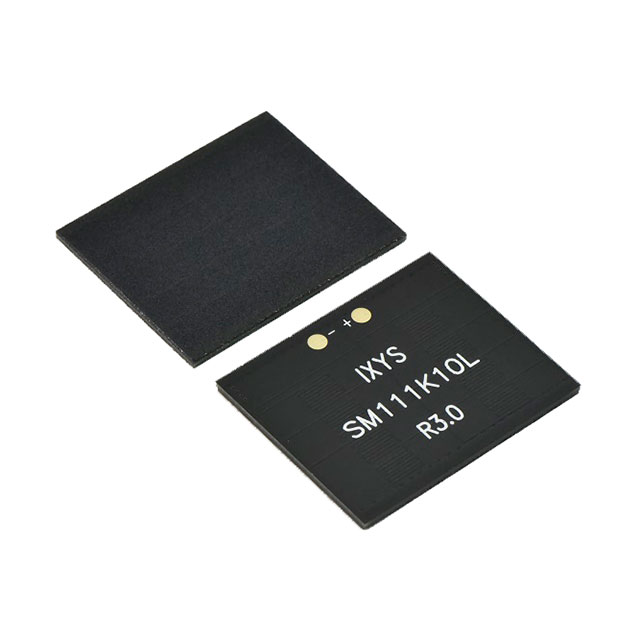

ANYSOLAR Ltd SM111K10L	90 °C	-40 C	245 mW	35 mm	42 mm	2 mm	0.08 "	1.38 in	1.65 in	5.58 V		Monocrystalline	46.7 mA	Cells	43.9 mA

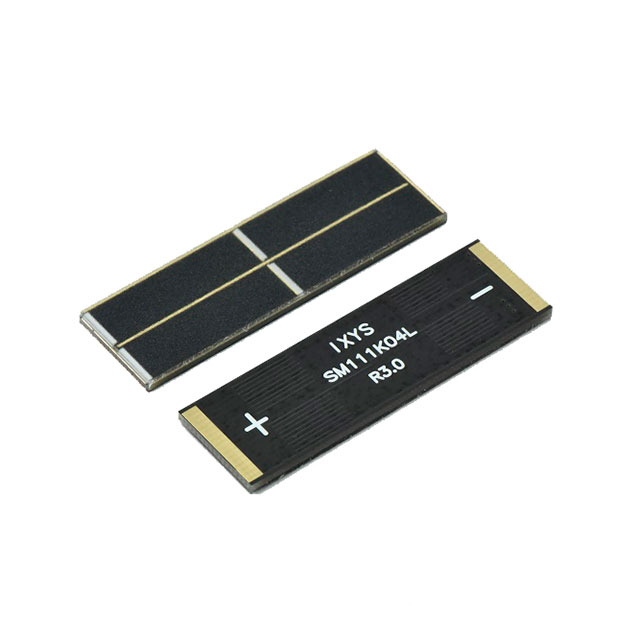

ANYSOLAR Ltd SM111K04L	90 °C	-40 C	98 mW	14 mm	43 mm	2 mm	0.08 "	0.55 "	1.69 in	2.23 V	2.76 V	Monocrystalline	46.7 mA	Cells	43.9 mA
