BASH16MX2W Series

High Voltage Switching Diode Series, +175°C

Catalog

High Voltage Switching Diode Series, +175°C

Part	Supplier Device Package [y]	Supplier Device Package [x]	Supplier Device Package	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Capacitance @ Vr, F	Reverse Recovery Time (trr)	Current - Reverse Leakage @ Vr	Grade	Current - Average Rectified (Io)	Mounting Type	Speed	Speed	Voltage - DC Reverse (Vr) (Max) [Max]	Voltage - Forward (Vf) (Max) @ If	Package / Case	Qualification	Technology
ON Semiconductor NSVBASH21MX2WT5G	0.6	1	2-X2DFNW (1x0.6)	175 ░C	-55 C	3 pF	50 ns	100 nA	Automotive	200 mA	Surface Mount Wettable Flank	Any Speed	200 mA	250 V	1.25 V	2-XDFN	AEC-Q101	Standard
ON Semiconductor NSVBASH16MX2WT5G	0.6	1	2-X2DFNW (1x0.6)	175 ░C	-55 C	3 pF	6 ns	500 nA	Automotive	200 mA	Surface Mount Wettable Flank	Any Speed	200 mA	100 V	1.25 V	2-XDFN	AEC-Q101	Standard
ON Semiconductor NSVBASH19MX2WT5G	0.6	1	2-X2DFNW (1x0.6)	175 ░C	-55 C	3 pF	50 ns	100 nA	Automotive	200 mA	Surface Mount Wettable Flank	Any Speed	200 mA	120 V	1.25 V	2-XDFN	AEC-Q101	Standard
ON Semiconductor BASH16MX2WT5G	0.6	1	2-X2DFNW (1x0.6)	175 ░C	-55 C	3 pF	6 ns	500 nA		200 mA	Surface Mount Wettable Flank	Any Speed	200 mA	100 V	1.25 V	2-XDFN		Standard
ON Semiconductor BASH20MX2WT5G	0.6	1	2-X2DFNW (1x0.6)	175 ░C	-55 C	3 pF	50 ns	100 nA		200 mA	Surface Mount Wettable Flank	Any Speed	200 mA	200 V	1.25 V	2-XDFN		Standard
ON Semiconductor NSVBASH20MX2WT5G	0.6	1	2-X2DFNW (1x0.6)	175 ░C	-55 C	3 pF	50 ns	100 nA	Automotive	200 mA	Surface Mount Wettable Flank	Any Speed	200 mA	200 V	1.25 V	2-XDFN	AEC-Q101	Standard
ON Semiconductor BASH21MX2WT5G	0.6	1	2-X2DFNW (1x0.6)	175 ░C	-55 C	3 pF	50 ns	100 nA		200 mA	Surface Mount Wettable Flank	Any Speed	200 mA	250 V	1.25 V	2-XDFN		Standard

Catalog

High Voltage Switching Diode Series, +175°C

Key Features

• Wide range of TJtemperature, with max TJ= 175°C

• Wettable Flank Package

• NSV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC-Q101 Qualified and PPAP Capable

• These Devices are Pb-Free, Halogen Free/BFR Free and are RoHS Compliant

Description

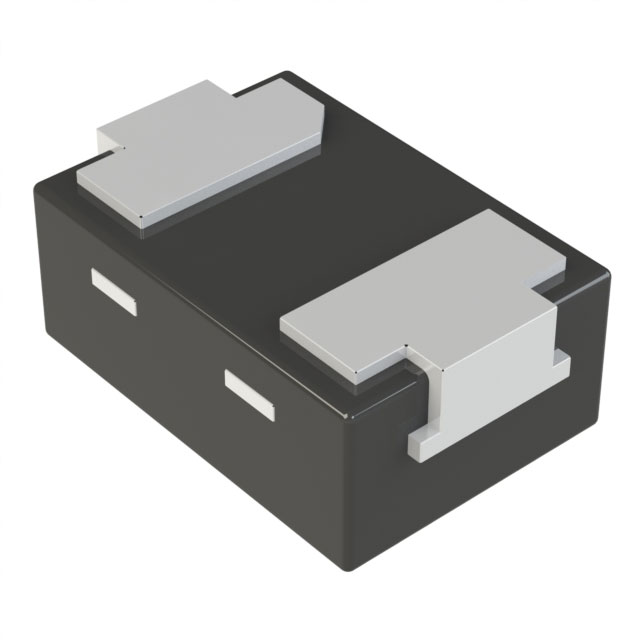

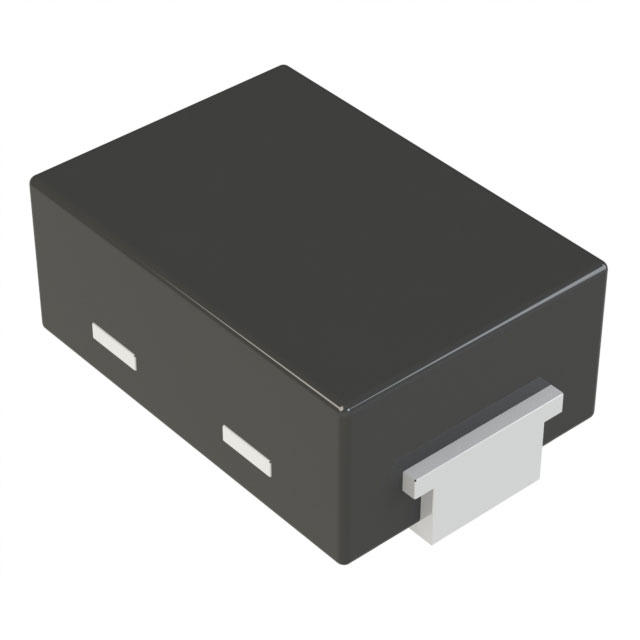

The BASHxxMX2W Switching Diode is a spin−off of our popular SOT−23 three−leaded device. It is designed for switching applications and is housed in the X2DFNW2 (1.0x0.6mm) surface mount package. This device is ideal for low−power surface mount applications, where board space is at a premium.
