83606 Series
Manufacturer: Belden Inc.
Beta
⌘K

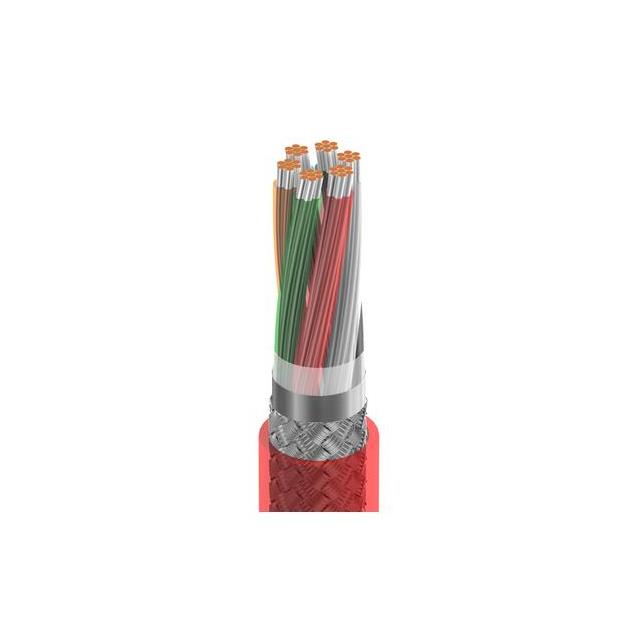

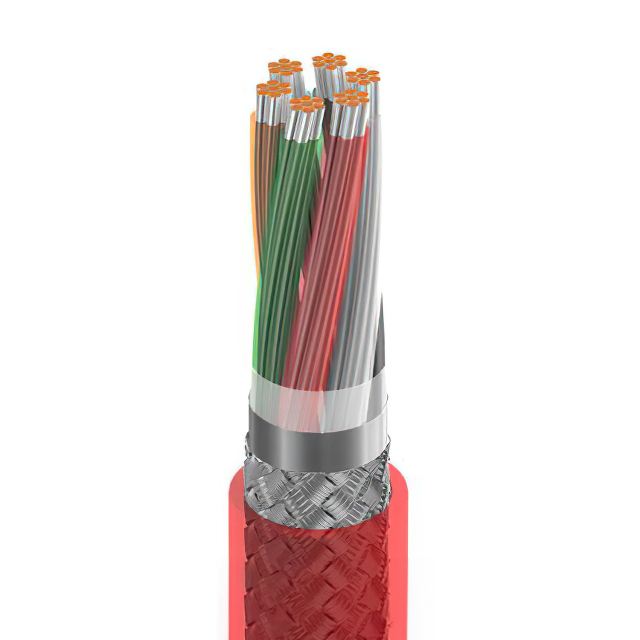

CABLE 6COND 20AWG RED SHLD
| Part | Shield Material | Shield Coverage | Operating Temperature [Min] | Operating Temperature [Max] | Jacket Color | Shield Type | Length [x] | Length [x] | Wire Gauge | Cable Type | Number of Conductors | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Conductor Insulation | Ratings | Conductor Material | Usage | Conductor Strand [custom] | Conductor Strand [custom] | Voltage | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Jacket (Insulation) Material | Length | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | Aluminum Copper Tinned | 85 % 100 % | -70 °C | 200 °C | Red | Braid Foil | 100 ft | 30.5 m | 20 AWG | Multi-Conductor | 6 | 5.26 mm | 0.207 in | Fluorinated Ethylene-Propylene (FEP) | UL Style CMP | Copper Tinned | Audio Control Instrumentation | 28 AWG | 7 | 300 VDC | 0.014 in | 0.356 mm | Fluorinated Ethylene-Propylene (FEP) Plenum | ||
 Belden Inc. | Aluminum Copper Tinned | 85 % 100 % | -70 °C | 200 °C | Red | Braid Foil | 20 AWG | Multi-Conductor | 6 | 5.26 mm | 0.207 in | Fluorinated Ethylene-Propylene (FEP) | UL Style CMP | Copper Tinned | Audio Control Instrumentation | 28 AWG | 7 | 300 VDC | 0.014 in | 0.356 mm | Fluorinated Ethylene-Propylene (FEP) Plenum | 304.8 m | 1000 ft | ||
Belden Inc. | Aluminum Copper Tinned | 85 % 100 % | -70 °C | 200 °C | Red | Braid Foil | 20 AWG | Multi-Conductor | 6 | 5.26 mm | 0.207 in | Fluorinated Ethylene-Propylene (FEP) | UL Style CMP | Copper Tinned | Audio Control Instrumentation | 28 AWG | 7 | 300 VDC | 0.014 in | 0.356 mm | Fluorinated Ethylene-Propylene (FEP) Plenum | 152.4 m | 500 ft |
