PR20205VB Series
Manufacturer: METZ CONNECT USA Inc.
Beta
⌘K

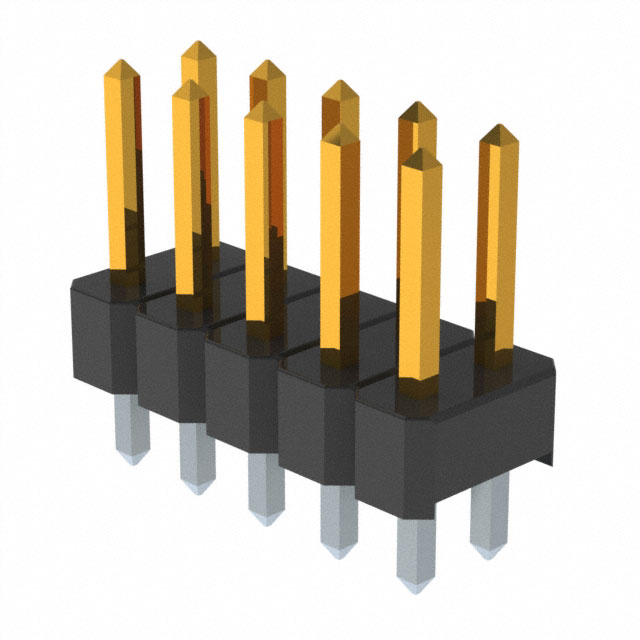

CONN HEADER VERT 10POS 2.54MM
| Part | Number of Positions | Shrouding | Current Rating (Amps) | Operating Temperature [Min] | Operating Temperature [Max] | Termination | Mounting Type | Contact Type | Contact Finish - Mating | Contact Length - Post | Contact Length - Post | Insulation Color | Insulation Material | Insulation Height | Insulation Height | Contact Finish Thickness - Mating | Contact Shape | Number of Rows [custom] | Contact Material | Number of Positions Loaded | Connector Type | Overall Contact Length [x] | Overall Contact Length [x] | Contact Length - Mating [x] | Contact Length - Mating [x] | Row Spacing - Mating [x] | Row Spacing - Mating [x] | Fastening Type | Pitch - Mating | Pitch - Mating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 METZ CONNECT USA Inc. | 10 | Unshrouded | 3 A | -40 C | 105 ░C | Solder | Through Hole | Male Pin | Gold | 0.118 in | 3 mm | Black | Polyethylene | 0.098 " | 2.5 mm | Flash | Square | 2 | Copper Zinc | All | Header | 11.61 mm | 0.457 in | 0.24 in | 6.1 mm | 0.1 in | 2.54 mm | Push-Pull | 0.1 " | 2.54 mm |
