0850-0 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K

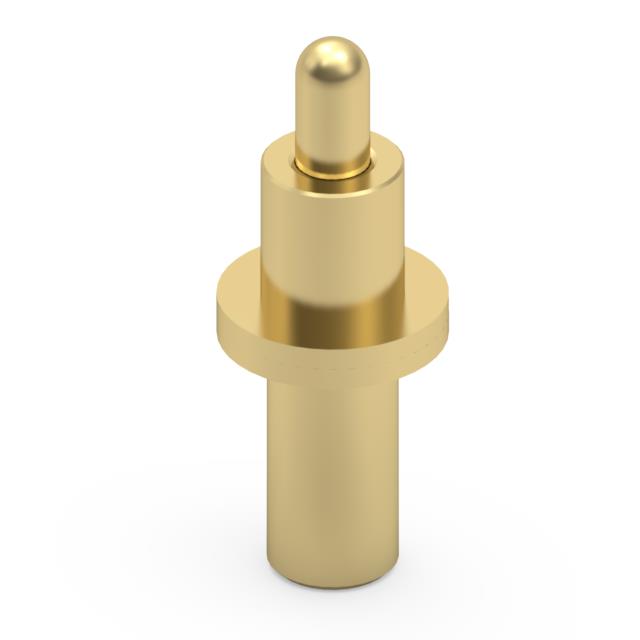

CONTACT SPRING LOADED T/H GOLD
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Recommended Working Height | Recommended Working Height | Contact Finish Thickness | Contact Finish Thickness | Operating Force - Mid Compression | Mating Cycles | Plunger Size [diameter] | Plunger Size [diameter] | Contact Finish | Pad Layout Dimension | Pad Layout Dimension | Current Rating (Amps) | Operating Force - Initial | Minimum Working Height [Min] | Minimum Working Height [Min] | Mounting Type | Contact Type | Contact Material | Maximum Working Height [Max] | Maximum Working Height [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | -55 C | 125 °C | 4.44 mm | 0.175 in | 20 µin | 0.51 µm | 120 gf | 1000000 | 1.27 mm | 0.05 in | Gold | 3.89 mm | 0.153 in | 8.8 A | 30 gf | 0.13 in | 3.29 mm | Through Hole | Sleeve & Plunger (Pogo Pins) | Brass Alloy | 0.22 in | 5.58 mm |
