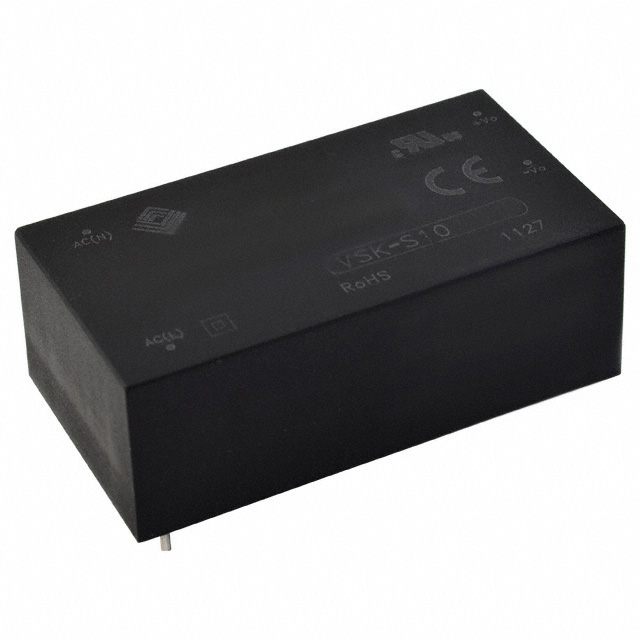

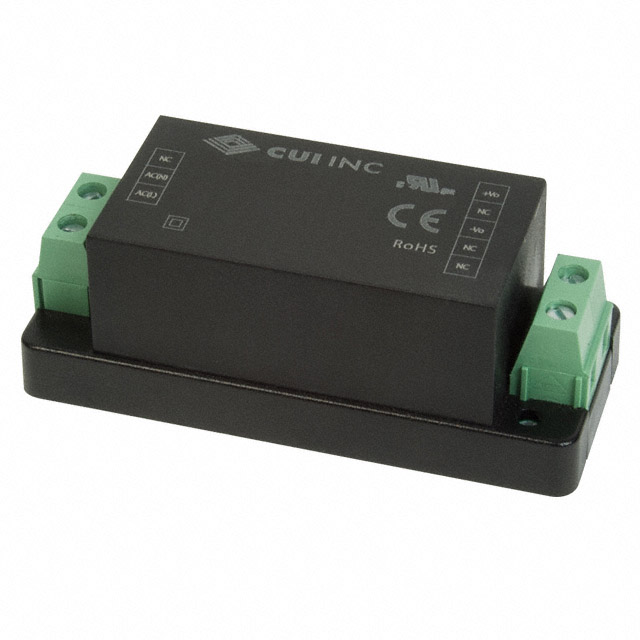

VSK-S10 Series
Manufacturer: CUI Inc.
Beta
⌘K
AC/DC CONVERTER 5V 10W
| Part | Applications | Efficiency | Number of Outputs | Mounting Type | Type | Current - Output 1 | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Voltage - Isolation | Voltage - Output 1 | Power (Watts) | Features | Approval Agency | Operating Temperature [Min] | Operating Temperature [Max] | Current - Output (Max) [Max] | Line Regulation | Load Regulation | Standard Number | Size / Dimension [z] | Size / Dimension [y] | Package / Case | Weight | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 CUI Inc. | ITE (Commercial) | 74 % | 1 | Chassis Mount | Enclosed | 2 A | 76 mm | 31.5 mm | 27.8 mm | 1.24 in | 1.09 " | 2.99 in | 4000 V | 5 V | 10 W | Universal Input | CE cURus | -25 °C | 70 °C | |||||||||
 CUI Inc. | ITE (Commercial) | 76 % | 1 | Chassis Mount | Enclosed | 900 mA | 76 mm | 31.5 mm | 27.8 mm | 1.24 in | 1.09 " | 2.99 in | 4000 V | 12 V | 10 W | Universal Input | CE cURus | -25 °C | 70 °C | |||||||||
CUI Inc. | ITE (Commercial) | 76 % | 1 | Chassis Mount | Enclosed | 1.1 A | 76 mm | 31.5 mm | 27.8 mm | 1.24 in | 1.09 " | 2.99 in | 4000 V | 9 V | 10 W | Universal Input | CE cURus | -25 °C | 70 °C | |||||||||
CUI Inc. | ITE (Commercial) | 78 % | 1 | Chassis Mount | Enclosed | 700 mA | 76 mm | 31.5 mm | 27.8 mm | 1.24 in | 1.09 " | 2.99 in | 4000 V | 15 V | 10 W | Universal Input | CE cURus | -25 °C | 70 °C | |||||||||
CUI Inc. | ITE (Commercial) | 70 % | 1 | Chassis Mount | Enclosed | 2 A | 76 mm | 31.5 mm | 27.8 mm | 1.24 in | 1.09 " | 2.99 in | 4000 V | 3.3 V | 10 W | Universal Input | CE cURus | -25 °C | 70 °C | |||||||||
CUI Inc. | ITE (Commercial) | 80 % | 1 | Chassis Mount | Enclosed | 450 mA | 76 mm | 31.5 mm | 27.8 mm | 1.24 in | 1.09 " | 2.99 in | 4000 V | 24 V | 10 W | Universal Input | CE cURus | -25 °C | 70 °C | |||||||||
 CUI Inc. | ITE (Commercial) | 74 % | 1 | Through Hole | Enclosed | 53.3 mm | 1.12 in | 0.75 " | 2.1 in | 5 V | 10 W | Universal Input | CE cURus EN UL | -25 °C | 70 °C | 2 A | 0.5 % | ±1% | 60950-1 | 19.5 mm | 28.5 mm | 4-DIP Module | 53.98 g | 0.119 lb | ||||
 CUI Inc. | ITE (Commercial) | 70 % | 1 | Through Hole | Enclosed | 53.3 mm | 1.12 in | 0.75 " | 2.1 in | 3.3 V | 10 W | Universal Input | CE cURus EN UL | -25 °C | 70 °C | 2 A | 0.5 % | ±1% | 60950-1 | 19.5 mm | 28.5 mm | 4-DIP Module | 53.98 g | 0.119 lb | ||||
 CUI Inc. | ITE (Commercial) | 76 % | 1 | Through Hole | Enclosed | 53.3 mm | 1.12 in | 0.75 " | 2.1 in | 9 V | 10 W | Universal Input | CE cURus EN UL | -25 °C | 70 °C | 0.5 % | ±1% | 60950-1 | 19.5 mm | 28.5 mm | 4-DIP Module | 53.07 g | 0.117 lb | |||||
CUI Inc. | ITE (Commercial) | 80 % | 1 | Through Hole | Enclosed | 53.3 mm | 1.12 in | 0.75 " | 2.1 in | 24 V | 10 W | Universal Input | CE cURus EN UL | -25 °C | 70 °C | 450 mA | 0.5 % | ±1% | 60950-1 | 19.5 mm | 28.5 mm | 4-DIP Module | 53.07 g | 0.117 lb |
