7919A Series
Manufacturer: Belden Inc.
Beta
⌘K

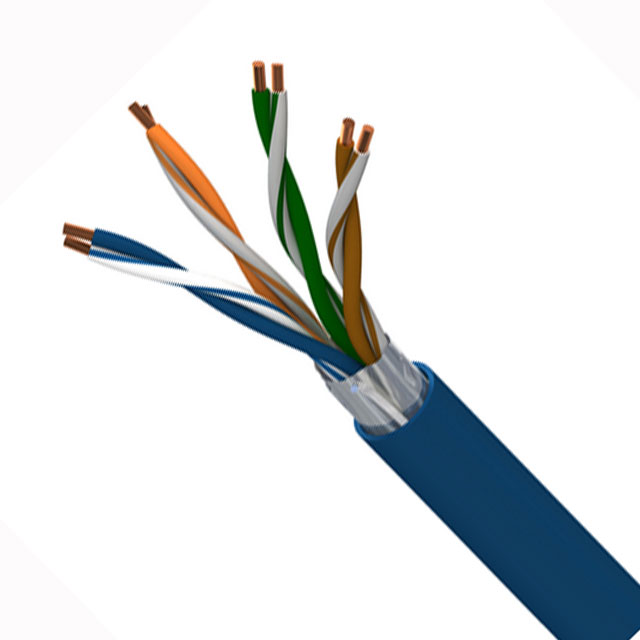

CABLE CAT5E 8COND 24AWG
| Part | Shield Coverage | Shield Material | Jacket Color | Features | Ratings | Voltage | Usage | Length [x] | Length [x] | Number of Conductors | Operating Temperature [Min] | Operating Temperature [Max] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Conductor Material | Length | Length | Cable Type | Conductor Insulation | Conductor Insulation | Conductor Strand | Jacket (Insulation) Material | Shield Type | Wire Gauge |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | 100 % | Aluminum | Black | Drain Wire Oil Resistant Rip Cord UV Resistant | UL Style CMR | 300 VDC | Network | 100 ft | 30.5 m | 8 | -40 C | 75 ░C | 6.73 mm | 0.265 in | Copper Bare | 15.24 m 152.4 m 304.8 m | 50 ft 500 ft 1000 ft | Multi-Pair Cat5e | Polyolefin | PO | Solid | Poly-Vinyl Chloride (PVC) | Foil | 24 AWG |
 Belden Inc. | 100 % | Aluminum | Blue | Drain Wire Oil Resistant UV Resistant | UL Style CMR | 300 VDC | Industrial Network | 8 | -40 C | 75 ░C | 6.73 mm | 0.265 in | Copper Bare | 304.8 m | 1000 ft | Multi-Pair Cat5e | Polyolefin | PO | Solid | Poly-Vinyl Chloride (PVC) | Foil | 24 AWG | ||
 Belden Inc. | 100 % | Aluminum | Black | Drain Wire Oil Resistant UV Resistant | UL Style CMR | 300 VDC | Industrial Network | 8 | -40 C | 75 ░C | 6.73 mm | 0.265 in | Copper Bare | 3048 m | 10000 ft | Multi-Pair Cat5e | Polyolefin | PO | Solid | Poly-Vinyl Chloride (PVC) | Foil | 24 AWG |
