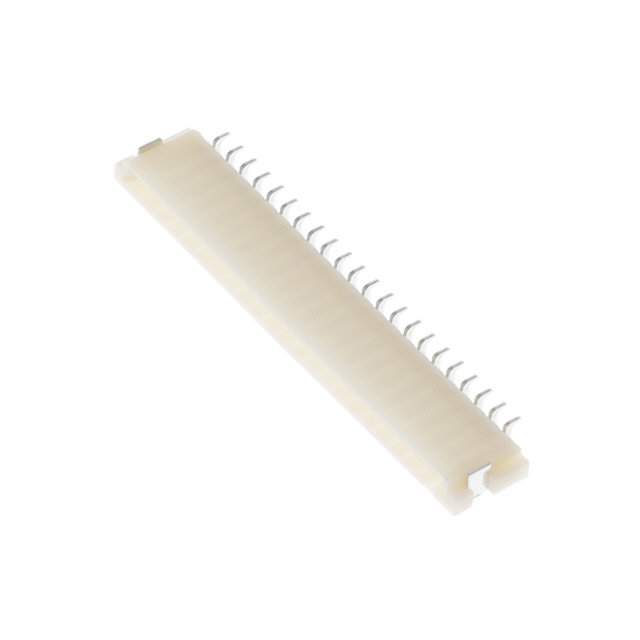

SM22B-SH Series
Manufacturer: JST Sales America Inc.
Beta
⌘K
CONN HEADER SMD R/A 22POS 1MM
| Part | Connector Type | Number of Positions Loaded | Number of Rows | Fastening Type | Insulation Material | Number of Positions | Contact Finish - Post | Style | Termination | Insulation Height [z] | Insulation Height [z] | Operating Temperature [Max] | Operating Temperature [Min] | Pitch - Mating | Pitch - Mating | Voltage Rating | Material Flammability Rating | Contact Type | Contact Material | Features | Mounting Type | Shrouding | Contact Shape | Insulation Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 JST Sales America Inc. | Header | All | 1 | Push-Pull | Nylon Polyamide (PA) | 22 | Tin | Board to Cable/Wire | Solder | 0.069 in | 1.75 mm | 85 °C | -25 °C | 1 mm | 0.039 in | 50 V | UL94 V-0 | Outer Shroud Contact | Phosphor Bronze | Solder Retention | Right Angle Surface Mount | Shrouded - 4 Wall | Rectangular | Natural |
