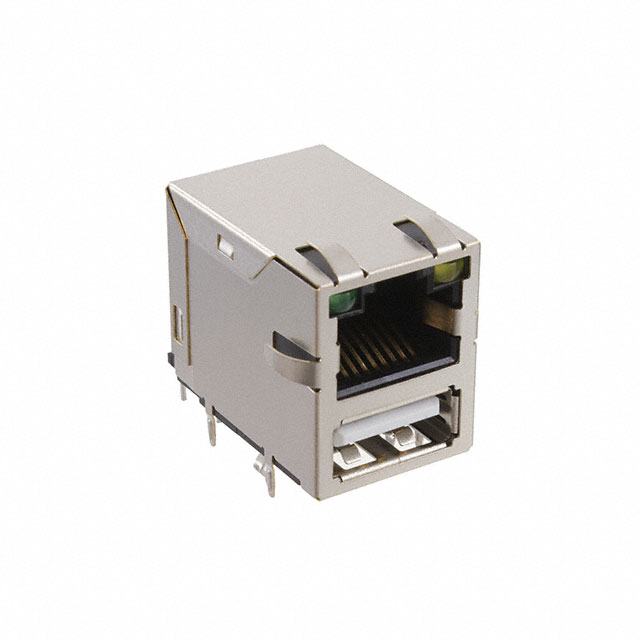

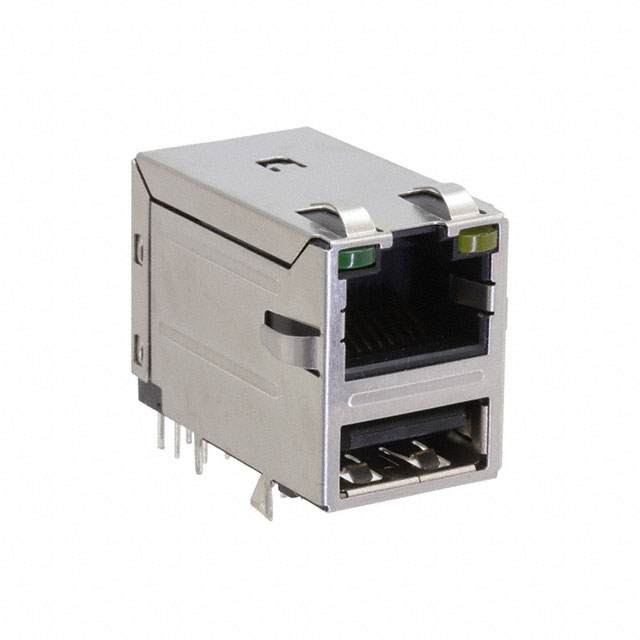

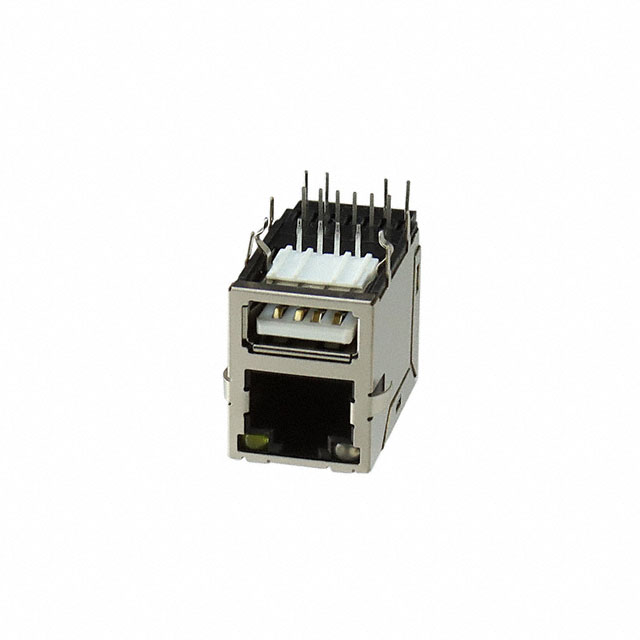

MTJ-USB-8 Series
Manufacturer: Adam Tech
Beta
⌘K
CONN JACK 1PORT PCB
| Part | Shield Material | Housing Material | Contact Finish Thickness | Connector Type | Number of Ports | Tab Direction | Number of Rows | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Height Above Board | Height Above Board | Contact Material | LED Color | Contact Finish | Shielding | Features | Orientation | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Adam Tech | Copper Alloy Nickel Coated | Polybutylene Terephthalate (PBT) Glass Filled | Flash | RJ45 with USB A | 1 | Up | 1 | 70 °C | 0 °C | Through Hole | 0.829 in | 21.06 mm | Phosphor Bronze | Green Orange Yellow | Gold | EMI Finger Shielded | Board Lock Solder Retention | 90 ° | Solder |
 Adam Tech | Brass Nickel Coated | Flash | RJ45 with USB A | 1 | Up | 1 | 70 °C | 0 °C | Through Hole | 0.829 in | 21.06 mm | Copper Alloy | Green - Yellow | Gold | EMI Finger Shielded | Board Lock Solder Retention | 90 ° | Solder |
