LE B P3 Series

Catalog

LED OSTAR 470NM BLUE 3X2

Part	Configuration	Viewing Angle	Height [z]	Current - Max [Max]	Lens Type	Luminous Flux @ Current/Temperature [Min]	Luminous Flux @ Current/Temperature	Luminous Flux @ Current/Temperature [Max]	Size / Dimension [y]	Size / Dimension [x]	Type	Current - Test	Temperature - Test	Voltage - Forward (Vf) (Typ)	Color	Wavelength	Wavelength [Min]	Wavelength [Max]	Light Emitting Surface (LES) [y]	Light Emitting Surface (LES) [x]	Features
ams-OSRAM USA INC. LE B P3W 01-GZHX-2-0-F00-T01-LM	Rectangle	120 °	2.1 mm	30 A	Flat	24000 mW	28500 mW	33000 mW	15.5 mm	27 mm	LED Module	36 A	25 °C	3.35 V	Blue	454 nm
ams-OSRAM USA INC. LE B P3W-GYHX-24	Rectangle	120 °	3.91 mm	3 A	Flat				28.7 mm	45.7 mm	LED Module	6 A	25 °C	4.4 V	Blue	459 nm
ams-OSRAM USA INC. LE B P3W 01-HYHZ-24-0-F00-T01-XX	Rectangle	120 °	2.1 mm	30 A	Flat	33000 mW		45000 mW	15.5 mm	27 mm	LED Module	36 A	25 °C	3.35 V	Blue	459 nm	452 nm	465 nm

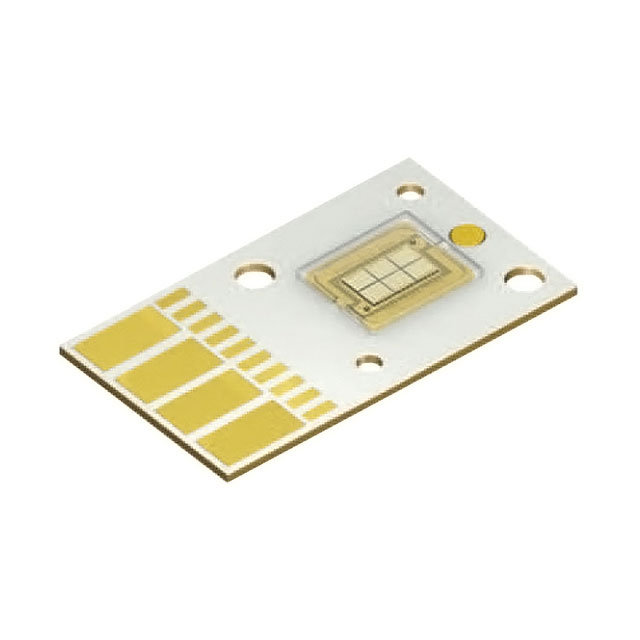

ams-OSRAM USA INC. LE B P3W 01-GYHY-24-0-F00-T01	Rectangle	120 °	2.1 mm		Flat				15.5 mm	27 mm	LED Module	36 A	25 °C	3.55 V	Blue	459 nm	452 nm	465 nm
ams-OSRAM USA INC. LE B P3W 01-GZHZ-24-0-F00-T01	Rectangle	120 °	2.1 mm	30 A	Flat	24000 mW		45000 mW	15.5 mm	27 mm	LED Module	36 A	25 °C	3.35 V	Blue
ams-OSRAM USA INC. LE B P3W-GXHX-24	Rectangle	120 °	12.21 mm		Flat	18 lm		33 lm	28.7 mm	45.7 mm	LED Module	6 A			Blue				2.55 mm	4.75 mm	With Connector
ams-OSRAM USA INC. LE B P3W 01-HXHY-24-0-F00-T01-XX	Rectangle	120 °	2.1 mm	30 A	Flat	28000 mW	28500 mW	29000 mW	15.5 mm	27 mm	LED Module	36 A	25 °C	3.35 V	Blue	459 nm	452 nm	465 nm
ams-OSRAM USA INC. LE B P3W 01-GZHZ-VW-0-F00-T01	Rectangle	120 °	2.1 mm	30 A	Flat	24000 mW		45000 mW	15.5 mm	27 mm	LED Module	36 A	25 °C	3.35 V	Blue	448 nm	444 nm	452 nm
