505274 Series

SlimStack Board-to-Board Plug, 0.35mm Pitch, SSB RP Series, 0.80 or 0.90mm Mated Height, 2.00mm Mated Width, 20 Circuits, Armor Nail, 0.15mm Fitting Nail Width

Manufacturer: Molex

Catalog

SlimStack Board-to-Board Plug, 0.35mm Pitch, SSB RP Series, 0.80 or 0.90mm Mated Height, 2.00mm Mated Width, 20 Circuits, Armor Nail, 0.15mm Fitting Nail Width

Part	Mounting Type	Connector Type	Number of Rows	Mated Stacking Heights	Contact Finish	Number of Positions	Features	Height Above Board	Height Above Board	Pitch [x]	Pitch [x]	Number of Positions

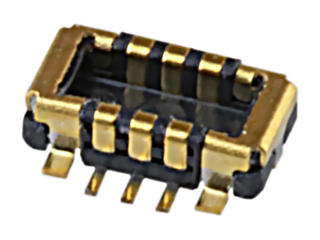

Molex 5052740642	Surface Mount	Outer Shroud Contacts Plug	2	0.8 mm	Gold	6	Pick and Place Solder Retention	0.026 in	0.65 mm	0.35 mm	0.014 in

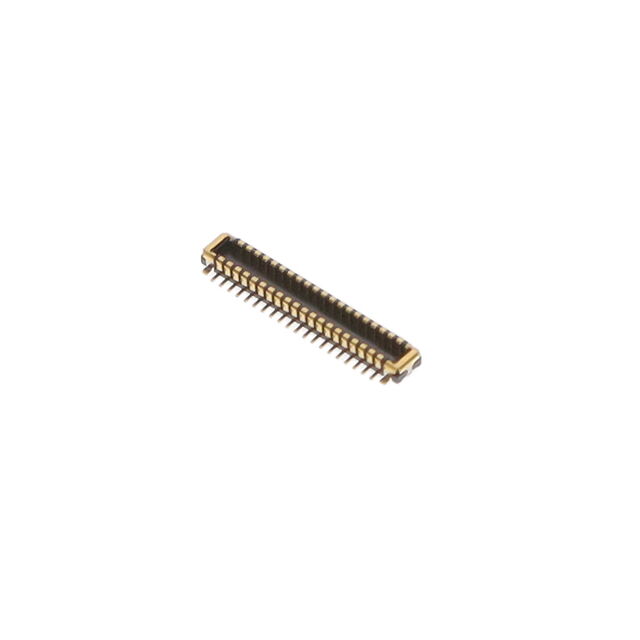

Molex 5052744042	Surface Mount	Outer Shroud Contacts Plug	2	0.8 mm	Gold	40	Pick and Place Solder Retention	0.026 in	0.65 mm	0.35 mm	0.014 in
Molex 5052742442	Surface Mount	Outer Shroud Contacts Plug	2	0.8 mm	Gold	24	Pick and Place Solder Retention	0.026 in	0.65 mm	0.35 mm	0.014 in

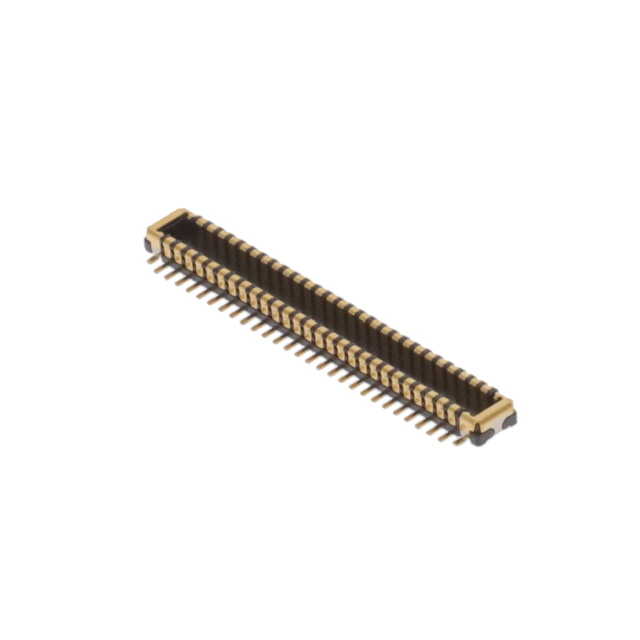

Molex 5052745412	Surface Mount	Outer Shroud Contacts Plug	2	0.8 mm	Gold	54	Pick and Place Solder Retention	0.026 in	0.65 mm	0.35 mm	0.014 in
Molex 5052743442	Surface Mount	Outer Shroud Contacts Plug	2	0.8 mm	Gold	34	Pick and Place Solder Retention	0.026 in	0.65 mm	0.35 mm	0.014 in
Molex 5052743010	Surface Mount	Outer Shroud Contacts Plug	2	0.8 mm	Gold	30	Solder Retention	0.026 in	0.65 mm	0.35 mm	0.014 in

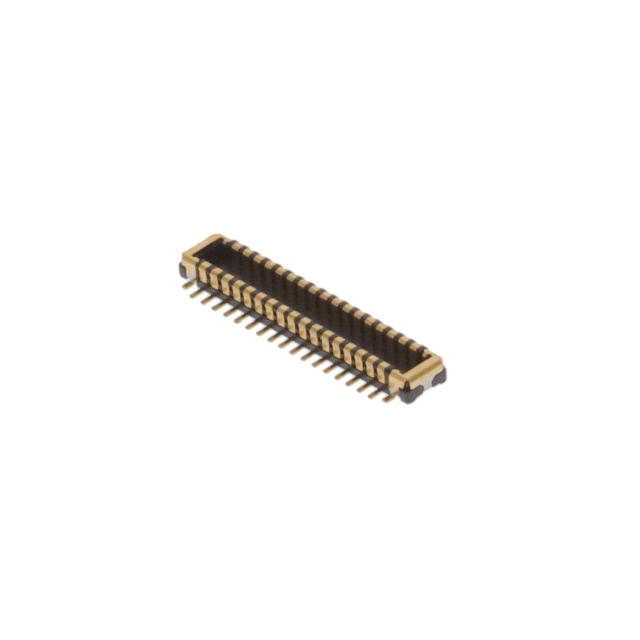

Molex 5052743412	Surface Mount	Outer Shroud Contacts Plug	2	0.8 mm	Gold	34	Pick and Place Solder Retention	0.026 in	0.65 mm	0.35 mm	0.014 in
Molex 5052745442	Surface Mount	Outer Shroud Contacts Plug	2	0.8 mm	Gold	54	Pick and Place Solder Retention	0.026 in	0.65 mm	0.35 mm	0.014 in
Molex 5052740640	Surface Mount	Outer Shroud Contacts Plug	2	0.8 mm	Gold	6	Pick and Place Solder Retention	0.026 in	0.65 mm	0.35 mm	0.014 in
Molex 5052741640	Surface Mount	Outer Shroud Contacts Plug	2	0.8 mm	Gold		Pick and Place Solder Retention	0.026 in	0.65 mm	0.35 mm	0.014 in	16
