2010-120 Series
Manufacturer: WAGO Corporation
Beta
⌘K
DIN RAIL MOUNT TERMINAL BLOCK, 2 POSITIONS, 20 AWG, 6 AWG, 16 MM², CLAMP, 57 A
| Part | Stripping Length [Min] [x] | Stripping Length [Max] [x] | Material - Insulation | Wire Gauge or Range - mm² [Max] | Wire Gauge or Range - mm² [Min] | Type | Wire Gauge or Range - AWG [Max] | Wire Gauge or Range - AWG [Min] | Number of Levels | Color | Termination Style | Number of Positions | Terminal - Width [y] | Current - UL | Voltage - UL | Voltage - IEC | Current - IEC |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

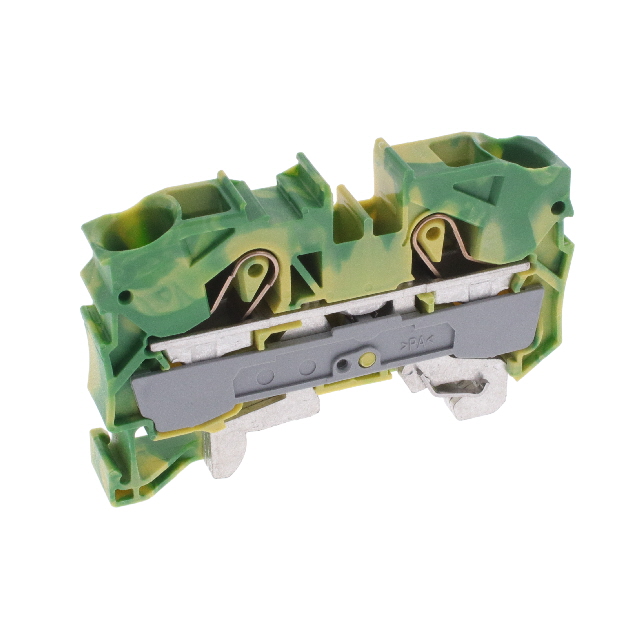

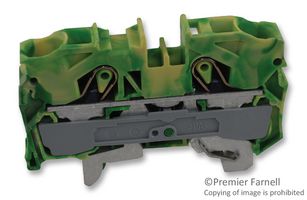

 WAGO Corporation | 17 mm | 19 mm | Nylon 6/6 Polyamide (PA66) | 16 mm² | 4 mm² | Ground Earth | 14 AWG | 6 AWG | 1 | Green Yellow | Push In Spring | 2 | 10 mm | ||||

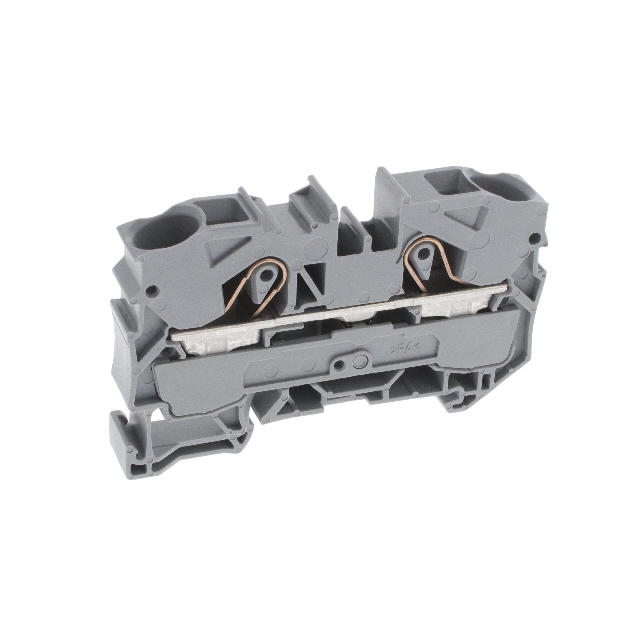

 WAGO Corporation | 17 mm | 19 mm | Nylon 6/6 Polyamide (PA66) | 16 mm² | 4 mm² | Feed Through | 14 AWG | 6 AWG | 1 | Gray | Push In Spring | 2 | 10 mm | 65 A | 600 V | 800 V | 76 A |
