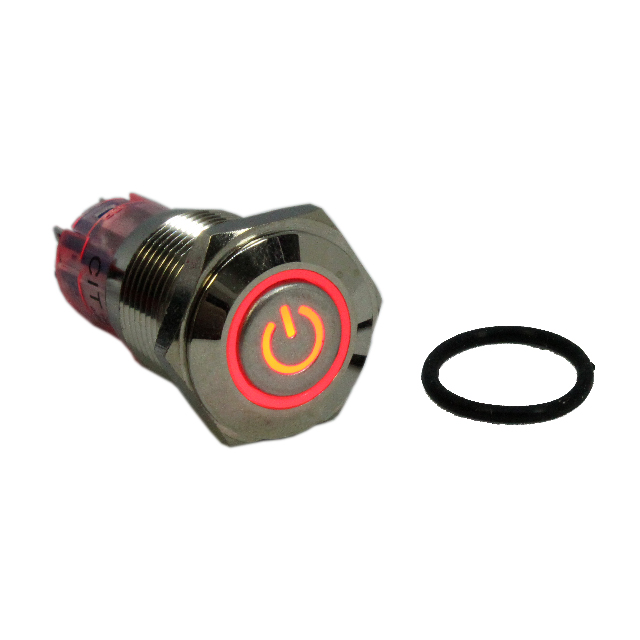

CH2LGS Series
Manufacturer: CIT Relay and Switch
Beta
⌘K
SWITCH PB DPDT 1A 125V
| Part | Electrical Life | Termination Style | Actuator Type | Ingress Protection | Type | Circuit | Switch Function | Illumination Type, Color | Actuator Marking | Voltage Rating - DC | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Features | Color - Actuator/Cap | Panel Cutout Dimensions [diameter] | Voltage Rating - AC | Current Rating (Amps) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 CIT Relay and Switch | 30000 Cycles | Solder Lug | Button Flush Round | IP67 - Dust Tight Waterproof | Anti-Vandal Illuminated | DPDT | On-On | Green/Red LED | No Marking | 24 V | Panel Mount Front | -25 °C | 70 °C | Stainless Steel | Silver | 16 mm | 125 V | 1 A |
