PTH03 Series

Catalog

DC DC CONVERTER 0.55-1.8V

Part	Applications	Operating Temperature [Max]	Operating Temperature [Min]	Current - Output (Max) [Max]	Number of Outputs	Efficiency	Voltage - Input (Min) [Min]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Package / Case	Mounting Type	Type	Voltage - Output 1 [Max]	Voltage - Output 1 [Min]	Voltage - Input (Max) [Max]	Features	Control Features
Texas Instruments PTH03010YAH	ITE (Commercial)	85 °C	-40 °C	15 A	1	88 %	2.95 V	0.62 "	0.35 "	1.37 in	15.7 mm	8.9 mm	34.8 mm	10-DIP Module	Through Hole	Non-Isolated PoL Module	1.8 V	0.55 V	3.65 V
Texas Instruments PTH03010YAZ	ITE (Commercial)	85 °C	-40 °C	15 A	1	88 %	2.95 V	0.62 "	0.38 in	1.37 in	15.8 mm	9.6 mm	34.8 mm	10-SMD Module	Surface Mount	Non-Isolated PoL Module	1.8 V	0.55 V	3.65 V	OCP Remote On/Off UVLO	Active High Enable

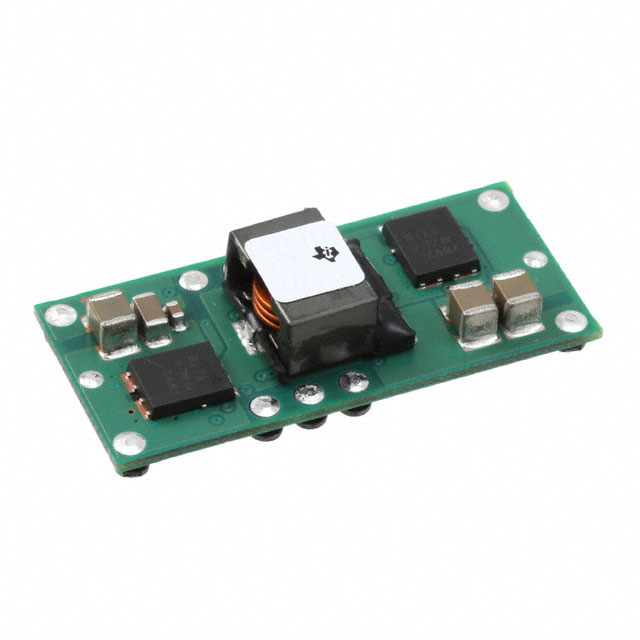

Texas Instruments PTH03010YAS	ITE (Commercial)	85 °C	-40 °C	15 A	1	88 %	2.95 V	0.62 "	0.38 in	1.37 in	15.8 mm	9.6 mm	34.8 mm	10-SMD Module	Surface Mount	Non-Isolated PoL Module	1.8 V	0.55 V	3.65 V	OCP Remote On/Off UVLO	Active High Enable

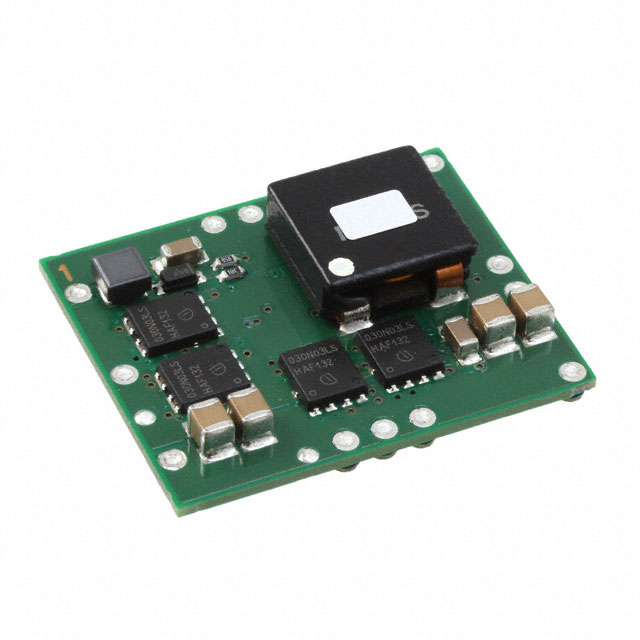

Texas Instruments PTH03030WAS	ITE (Commercial)	85 °C	-40 °C	30 A	1	93 %	2.95 V	1.12 in	0.38 in	1.37 in	28.5 mm	9.6 mm	34.8 mm	13-SMD Module	Surface Mount	Non-Isolated PoL Module	2.5 V	0.8 V	3.65 V	OCP OTP Remote On/Off UVLO
Texas Instruments PTH03060YAS	ITE (Commercial)	85 °C	-40 °C	10 A	1	86 %	2.95 V	0.62 "	0.38 in	0.99 in	15.8 mm	9.6 mm	25.3 mm	10-SMD Module	Surface Mount	Non-Isolated PoL Module	1.8 V	0.55 V	3.65 V	OCP Remote On/Off UVLO
Texas Instruments PTH03030WAST	ITE (Commercial)	85 °C	-40 °C	30 A	1	93 %	2.95 V	1.12 in	0.38 in	1.37 in	28.5 mm	9.6 mm	34.8 mm	13-SMD Module	Surface Mount	Non-Isolated PoL Module	2.5 V	0.8 V	3.65 V	OCP OTP Remote On/Off UVLO
Texas Instruments PTH03050YAZT	ITE (Commercial)	85 °C	-40 °C	6 A	1	88 %	2.95 V	0.5 in	0.36 in	0.87 in	12.7 mm	9.1 mm	22.1 mm	6-SMD Module	Surface Mount	Non-Isolated PoL Module	1.8 V	0.55 V	3.65 V	OCP Remote On/Off UVLO
Texas Instruments PTH03050YBH	ITE (Commercial)			6 A	1	88 %	2.95 V	0.5 in	0.34 in	0.87 in	12.6 mm	8.5 mm	22.1 mm	6-DIP Module	Through Hole	Non-Isolated PoL Module	1.8 V	0.55 V	3.65 V	Remote On/Off UVLO
Texas Instruments PTH03060YAZ	ITE (Commercial)	85 °C	-40 °C	10 A	1	86 %	2.95 V	0.62 "	0.38 in	0.99 in	15.8 mm	9.6 mm	25.3 mm	10-SMD Module	Surface Mount	Non-Isolated PoL Module	1.8 V	0.55 V	3.65 V	OCP Remote On/Off UVLO
