BAS70 Series

Catalog

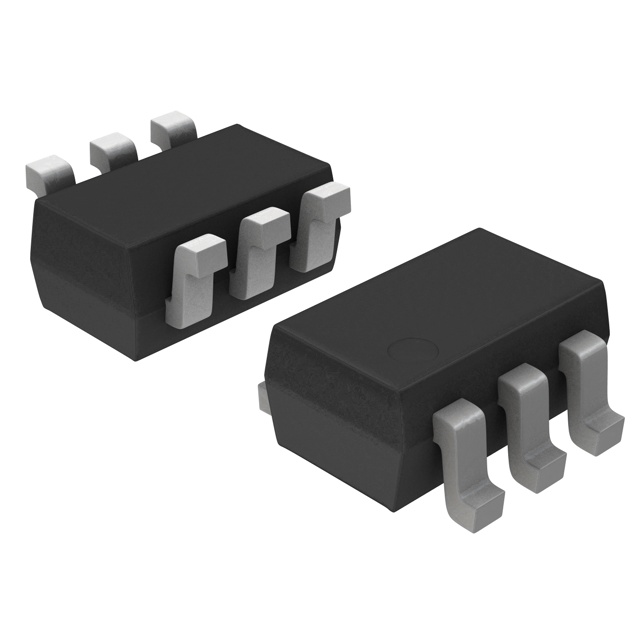

SOT-323, SKY

Part	Diode Configuration	Operating Temperature - Junction [Min]	Operating Temperature - Junction [Max]	Current - Reverse Leakage @ Vr	Current - Average Rectified (Io) (per Diode)	Supplier Device Package	Speed	Speed	Voltage - DC Reverse (Vr) (Max) [Max]	Mounting Type	Package / Case	Qualification	Technology	Grade	Voltage - Forward (Vf) (Max) @ If [Max]	Current - Average Rectified (Io)	Capacitance @ Vr, F	Voltage - Forward (Vf) (Max) @ If	Reverse Recovery Time (trr)	Operating Temperature - Junction
Panjit International Inc. BAS70CW-AU_R1_000A1	1 Pair Common Cathode	-55 °C	150 °C	1 µA	200 mA	SOT-323	200 mA	Any Speed	70 V	Surface Mount	SC-70 SOT-323	AEC-Q101	Schottky	Automotive	900 mV
Panjit International Inc. BAS70-AU_R1_000A1		-55 °C	150 °C	1 µA		SOT-23	200 mA	Any Speed	70 V	Surface Mount	SC-59 SOT-23-3 TO-236-3	AEC-Q101	Schottky	Automotive	900 mV	200 mA	2 pF
Panjit International Inc. BAS70ADW-AU_R1_000A1	2 Pair Common Anode	-55 °C	125 °C	1 µA	200 mA	SOT-363	200 mA	Any Speed	70 V	Surface Mount	6-TSSOP SC-88 SOT-363	AEC-Q101	Schottky	Automotive	900 mV
Panjit International Inc. BAS70TW_S2_00001	3 Independent	-55 °C	125 °C	100 nA	200 mA	SOT-363	200 mA	Any Speed	70 V	Surface Mount	6-TSSOP SC-88 SOT-363		Schottky					1 V	5 ns
Panjit International Inc. BAS70AW_R1_00001	1 Pair Common Anode			10 µA	200 mA	SOT-323	200 mA	Any Speed	70 V	Surface Mount	SC-70 SOT-323		Schottky					1 V		150 ¯C
Panjit International Inc. BAS70A-AU_R1_000A1	1 Pair Common Anode	-55 °C	150 °C	1 µA	200 mA	SOT-23	200 mA	Any Speed	70 V	Surface Mount	SC-59 SOT-23-3 TO-236-3	AEC-Q101	Schottky	Automotive	900 mV
Panjit International Inc. BAS70S_R1_00001	1 Pair Series Connection	-55 °C	150 °C	1 µA	200 mA	SOT-23	200 mA	Any Speed	70 V	Surface Mount	SC-59 SOT-23-3 TO-236-3		Schottky					1 V
Panjit International Inc. BAS70A_R1_00001	1 Pair Common Anode	-55 °C	150 °C	1 µA	200 mA	SOT-23	200 mA	Any Speed	70 V	Surface Mount	SC-59 SOT-23-3 TO-236-3		Schottky					1 V
Panjit International Inc. BAS70CDW-AU_R1_000A1	2 Pair Common Cathode	-55 °C	125 °C	1 µA	200 mA	SOT-363	200 mA	Any Speed	70 V	Surface Mount	6-TSSOP SC-88 SOT-363	AEC-Q101	Schottky	Automotive	900 mV
Panjit International Inc. BAS70SW-AU_R1_000A1	1 Pair Series Connection	-55 °C	150 °C	1 µA	200 mA	SOT-323	200 mA	Any Speed	70 V	Surface Mount	SC-70 SOT-323	AEC-Q101	Schottky	Automotive	900 mV
