TPS7A13 Series

Catalog

300-MA, LOW INPUT AND OUTPUT VOLTAGE, ULTRA-LOW-DROPOUT (LDO) VOLTAGE REGULATOR

Part	PSRR [Max]	PSRR [Min]	Number of Regulators	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Output (Min/Fixed)	Current - Output	Supplier Device Package	Voltage Dropout (Max)	Package / Case	Current - Supply (Max) [Max]	Output Configuration	Voltage - Input (Max) [Max]	Current - Quiescent (Iq)	Mounting Type	Protection Features	Control Features

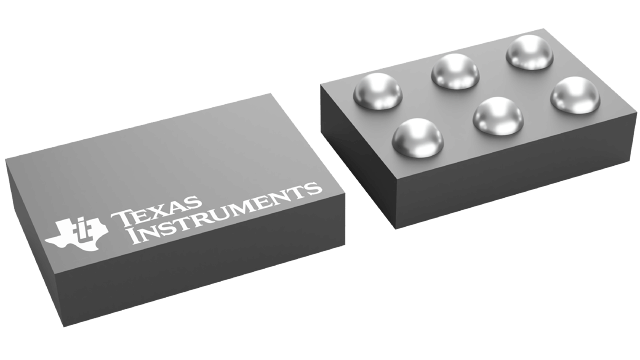

Texas Instruments TPS7A1308PYCKR	65 dB	26 dB	1	-40 C	125 °C	0.8 V	300 mA	6-DSBGA (0.71x1)	0.065 V	6-XFBGA DSBGA	500 µA	Positive	2.2 V	17 µA	Surface Mount	Over Current Over Temperature Short Circuit Under Voltage Lockout (UVLO)	Current Limit Enable
Texas Instruments TPS7A1309PYCKR	65 dB	26 dB	1	-40 C	125 °C	0.9 V	300 mA	6-DSBGA (0.67x0.96)	0.065 V	6-XFBGA DSBGA	500 µA	Positive	2.2 V	17 µA	Surface Mount	Over Current Over Temperature Under Voltage Lockout (UVLO)	Current Limit Enable
