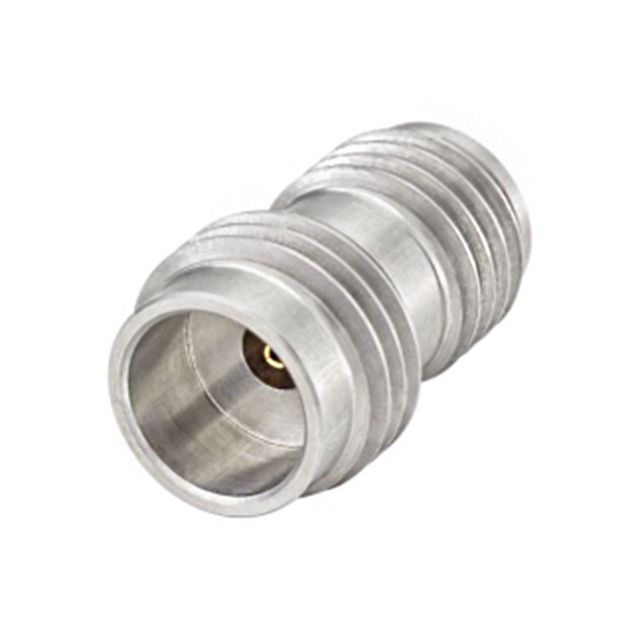

08K524 Series
Manufacturer: Rosenberger
Beta
⌘K
PRECISION 1.85 BULKHEAD JACK
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Body Finish | Body Material | Voltage Rating | Dielectric Material | Center Contact Plating | Mating Cycles | Mounting Type | Contact Termination | Impedance | Shield Termination | Fastening Type | Housing Color | Frequency - Max [Max] | Number of Ports | Center Contact Material | Connector Type | Mounting Feature | Connector Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Rosenberger | 85 °C | -40 C | Gold Passivated | Beryllium Copper Stainless Steel | 150 VDC | Polystyrene (PS) | Gold | 500 | Panel Mount | Solder | 50 Ohms | Solder | Threaded | Gold | 70 GHz | 1 | Beryllium Copper | Female Socket Jack | Bulkhead | 1.85 mm |
