30-17 Series
Manufacturer: Grayhill Inc.
Beta
⌘K

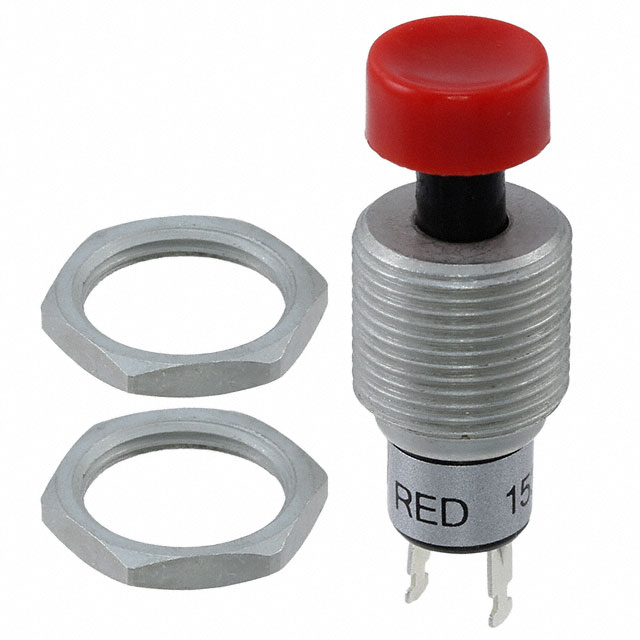

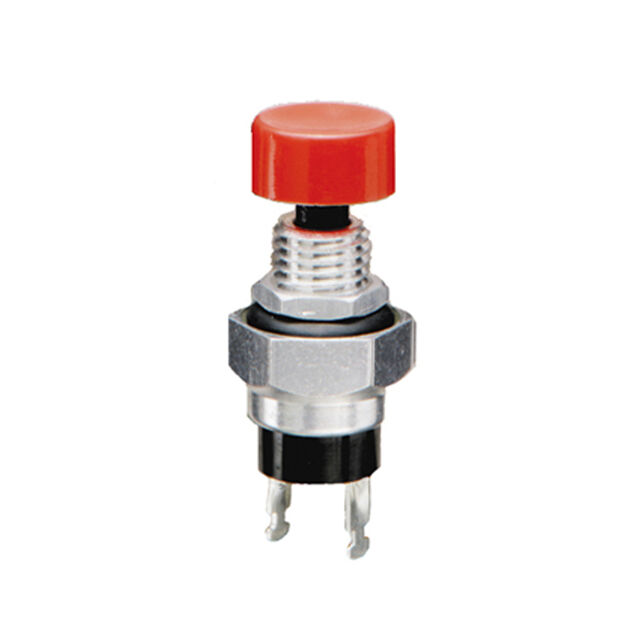

SWITCH PUSH BUTTON N.O. SPST ROUND BUTTON 1A 220VAC MOMENTARY PANEL MOUNT SOLDER LUG
| Part | Electrical Life | Panel Cutout Dimensions [diameter] | Switch Function | Mounting Type | Features | Actuator Marking | Current Rating (Amps) | Type | Termination Style | Color - Actuator/Cap | Actuator Type | Operating Temperature [Max] | Operating Temperature [Min] | Voltage Rating - AC | Circuit |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Grayhill Inc. | 200000 Cycles | 12.3 mm | Off-Mom | Panel Mount Rear | Tactile Feedback | No Marking | 1 A | Standard | Solder Lug | Red | Button Round | 85 °C | -40 C | 115 V | SPST-NO |
 Grayhill Inc. | 200000 Cycles | 12.3 mm | Off-Mom | Panel Mount Rear | Tactile Feedback | No Marking | 1 A | Standard | Solder Lug | Black | Button Round | 85 °C | -40 C | 115 V | SPST-NO |
 Grayhill Inc. | 200000 Cycles | 12.3 mm | Off-Mom | Panel Mount Rear | Epoxy Sealed Terminals | No Marking | 1 A | Standard | Wire Leads | Black | Button Round | 85 °C | -40 C | 115 V | SPST-NO |
