Ksc60 Series Series

Sealed Tact Switch for SMT

Manufacturer: Littelfuse/Commercial Vehicle Products

Catalog

Sealed Tact Switch for SMT

Part	Contact Rating @ Voltage	Circuit	Mounting Type	Switch Travel	Switch Function	Illumination	Actuator Orientation	Mechanical Life	Operating Force	Ingress Protection	Termination Style	Actuator Type	Operating Temperature [Max]	Operating Temperature [Min]	Actuator Height off PCB, Vertical	Outline [y]	Outline [x]
Littelfuse/Commercial Vehicle Products KSC641JLFS	0.05 A	SPST-NO	Surface Mount	0.4 mm	Off-Mom	Non-Illuminated	Top Actuated	300000 Cycles	340 gf	IP67 - Dust Tight Waterproof	J Lead	Standard	85 °C	-40 °C	7.7 mm	6.2 mm	6.2 mm
Littelfuse/Commercial Vehicle Products KSC641J	0.05 A	SPST-NO	Surface Mount	0.4 mm	Off-Mom	Non-Illuminated	Top Actuated	300000 Cycles	340 gf	IP67 - Dust Tight Waterproof	J Lead	Standard	85 °C	-40 °C	7.7 mm	6.2 mm	6.2 mm
Littelfuse/Commercial Vehicle Products KSC641GLFS	0.05 A	SPST-NO	Surface Mount	0.4 mm	Off-Mom	Non-Illuminated	Top Actuated	300000 Cycles	340 gf	IP67 - Dust Tight Waterproof	Gull Wing	Standard	85 °C	-40 °C	7.7 mm	6.2 mm	6.2 mm

Catalog

Sealed Tact Switch for SMT

Key Features

• Positive adaptable tactile feeling

• hard actuator 7,7mm high

• IP67

Description

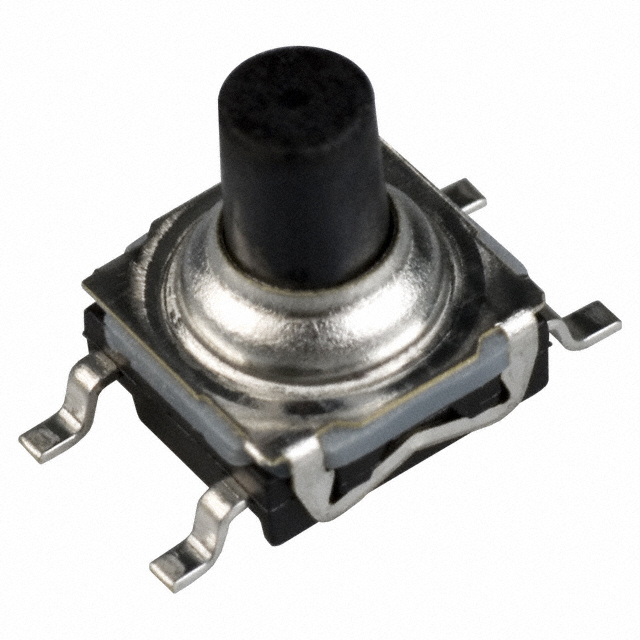

Designed for small surface area applications, C&K’s KSC6 series sealed tact switch for SMT is an IP67 rated, 7.7mm high hard actuator switch. It gives users a positive adaptable tactile feeling, making it an ideal choice for industrial electronics, consumer products and automotive applications.
