74LVC08APW Series

Quad 2-input AND gate

Manufacturer: Freescale Semiconductor - NXP

Catalog

Quad 2-input AND gate

Part	Mounting Type	Current - Quiescent (Max) [Max]	Number of Circuits	Operating Temperature [Max]	Operating Temperature [Min]	Number of Inputs	Supplier Device Package	Voltage - Supply [Min]	Voltage - Supply [Max]	Input Logic Level - High [Max] [custom]	Input Logic Level - High [Min] [custom]	Current - Output High, Low	Package / Case	Package / Case	Package / Case	Max Propagation Delay @ V, Max CL	Input Logic Level - Low [Max]	Input Logic Level - Low [Min]	Logic Type	Package / Case [custom]	Package / Case [custom]	Grade	Qualification	Package / Case [x]	Package / Case [y]
Freescale Semiconductor - NXP 74LVC08ADB,112	Surface Mount	40 µA	4	125 °C	-40 °C	2	14-SSOP	1.2 V	3.6 V	2 V	1.08 V	24 mA	5.3 mm	14-SSOP	0.209 "	4.1 ns	0.8 V	0.12 V	AND Gate

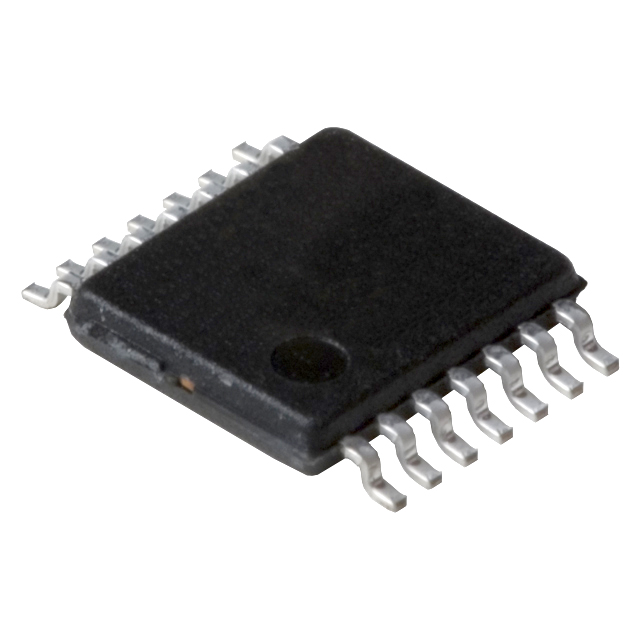

Freescale Semiconductor - NXP 74LVC08APW,118	Surface Mount	40 ĄA	4	125 °C	-40 °C	2	14-TSSOP	1.2 V	3.6 V	2 V	1.08 V	24 mA		14-TSSOP		4.1 ns	0.8 V	0.12 V	AND Gate	0.173 "	4.4 mm
Freescale Semiconductor - NXP 74LVC08ADB,118	Surface Mount	40 µA	4	125 °C	-40 °C	2	14-SSOP	1.2 V	3.6 V	2 V	1.08 V	24 mA	5.3 mm	14-SSOP	0.209 "	4.1 ns	0.8 V	0.12 V	AND Gate
Freescale Semiconductor - NXP 74LVC08APW,112	Surface Mount	40 µA	4	125 °C	-40 °C	2	14-TSSOP	1.2 V	3.6 V	2 V	1.08 V	24 mA		14-TSSOP		4.1 ns	0.8 V	0.12 V	AND Gate	0.173 "	4.4 mm
Freescale Semiconductor - NXP 74LVC08APW-Q100,11	Surface Mount	40 µA	4	125 °C	-40 °C	2	14-TSSOP	1.2 V	3.6 V	2 V	1.08 V	24 mA		14-TSSOP		4.1 ns	0.8 V	0.12 V	AND Gate	0.173 "	4.4 mm	Automotive	AEC-Q100
Freescale Semiconductor - NXP 74LVC08APW/C5J	Surface Mount	40 µA	4	125 °C	-40 °C	2	14-TSSOP	1.65 V	3.6 V	2 V	1.08 V	24 mA		14-TSSOP		4.8 ns	0.8 V	0.12 V	AND Gate	0.173 "	4.4 mm
Freescale Semiconductor - NXP 74LVC08AD,112	Surface Mount	40 µA	4	125 °C	-40 °C	2	14-SO	1.2 V	3.6 V	2 V	1.08 V	24 mA		14-SOIC		4.1 ns	0.8 V	0.12 V	AND Gate					0.154 in	3.9 mm

Catalog

Quad 2-input AND gate

Description

The 74LVC08A is a quad 2-input AND gate. Inputs can be driven from either 3.3 V or 5 V devices. This feature allows the use of these devices as translators in mixed 3.3 V and 5 V applications.
