19200100 Series

Manufacturer: HARTING

Catalog

CONN BASE SIDE ENTRY SZ10A M20

Part	Connector Type	Ingress Protection	Size	Housing Finish	Operating Temperature [Max]	Operating Temperature [Min]	Housing Material	Thread Size	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Housing Color	Style	Lock Location	Features
HARTING 19200100290	Base - Box Mount	IP65 - Dust Tight Water Resistant	10 A	Powder Coated	125 °C	-40 C	Aluminum Die Cast	M20	50 mm	1.969 in	2.047 "	52 mm	74.4 mm	2.929 "	Gray	Side Entry	Locking Clip (1) on Base Bottom	Feed Through

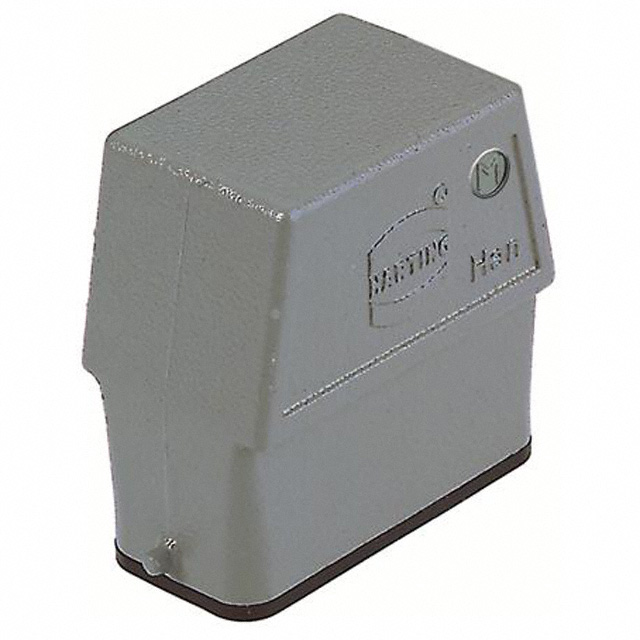

HARTING 19200100546	Hood	IP65 - Dust Tight Water Resistant	10 A	Powder Coated	125 °C	-40 C	Aluminum Die Cast	M25	36 mm	1.417 "	2.646 in	67.2 mm	62.7 mm	2.469 in	Gray	Side Entry	Locking Clip (1) on Base Bottom
HARTING 19200100251	Base - Box Mount	IP65 - Dust Tight Water Resistant	10 A	Powder Coated	125 °C	-40 C	Aluminum Die Cast	M25	50 mm	1.969 in	2.047 "	52 mm	74.4 mm	2.929 "	Gray	Side Entry	Locking Clip (1) on Base Bottom
