KD13.4101 Series

Catalog

PWR ENT MOD RCPT IEC320-C14 PNL

Part	Panel Thickness	Panel Thickness	Voltage Rating - Appliance Inlet	Connector Style	Mounting Type	Fuse Holder, Drawer	Filter Type	Termination	Termination	Termination	Ingress Protection	Current Rating - Appliance Inlet	Switch Features	Features	Connector Type	Approval Agency	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Material Flammability Rating
SCHURTER Inc. KD13.4101.109	0.098 in	2.5 mm	250 VAC	IEC 320-C14	Panel Mount Snap-In	Drawer Sold Separate	Unfiltered - Commercial	0.189 "	4.8 mm	Quick Connect	IP40	10 A	Switch On-Off	Voltage Selector	Receptacle Male Blades - Module	CCC CSA ENEC UL	27.5 mm	66.5 mm	UL94 V-0
SCHURTER Inc. KD13.4101.107	0.079 in	2 mm	250 VAC	IEC 320-C14	Panel Mount Snap-In	Drawer Sold Separate	Unfiltered - Commercial	0.189 "	4.8 mm	Quick Connect	IP40	10 A	Switch On-Off	Voltage Selector	Receptacle Male Blades - Module	CCC CSA ENEC UL	27.5 mm	66.5 mm	UL94 V-0

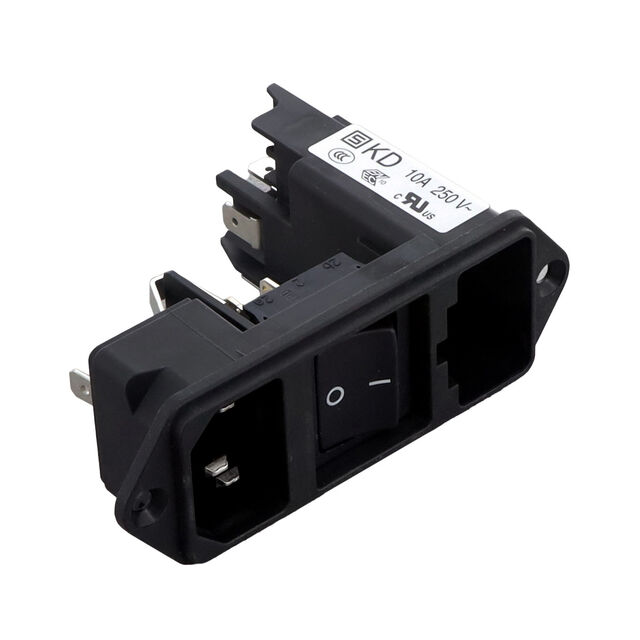

SCHURTER Inc. KD13.4101.151			250 VAC	IEC 320-C14	Flange Panel Mount	Drawer Sold Separate	Unfiltered - Commercial	0.189 "	4.8 mm	Quick Connect	IP40	10 A	Switch On-Off	Voltage Selector	Receptacle Male Blades - Module	CCC CSA ENEC UL	27.5 mm	66.5 mm	UL94 V-0

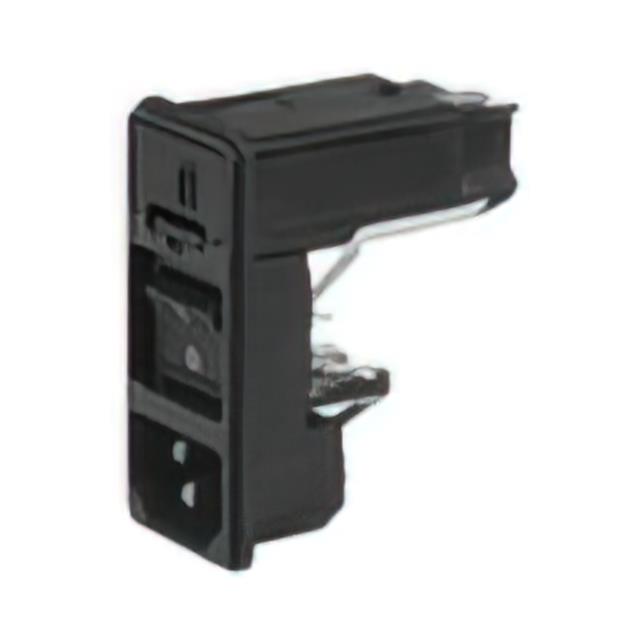

SCHURTER Inc. KD13.4101.105	0.059 in	1.5 mm	250 VAC	IEC 320-C14	Panel Mount Snap-In	Drawer Sold Separate	Unfiltered - Commercial	0.189 "	4.8 mm	Quick Connect	IP40	10 A	Switch On-Off	Voltage Selector	Receptacle Male Blades - Module	CCC CSA ENEC UL	27.5 mm	66.5 mm	UL94 V-0
