325-116 Series
Manufacturer: EDAC Inc.
Beta
⌘K
CONN EDGE DUAL FML 116POS 0.100
| Part | Termination Rows [custom] | Material - Insulation | Pitch | Pitch | Contact Finish | Number of Positions | Contact Material | Card Type | Contact Type | Mounting Type | Number of Rows [custom] | Color | Number of Positions/Bay/Row | Read Out | Termination | Contact Finish Thickness | Contact Finish Thickness | Card Thickness | Card Thickness | Gender | Operating Temperature [Min] | Operating Temperature [Max] | Flange Feature | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

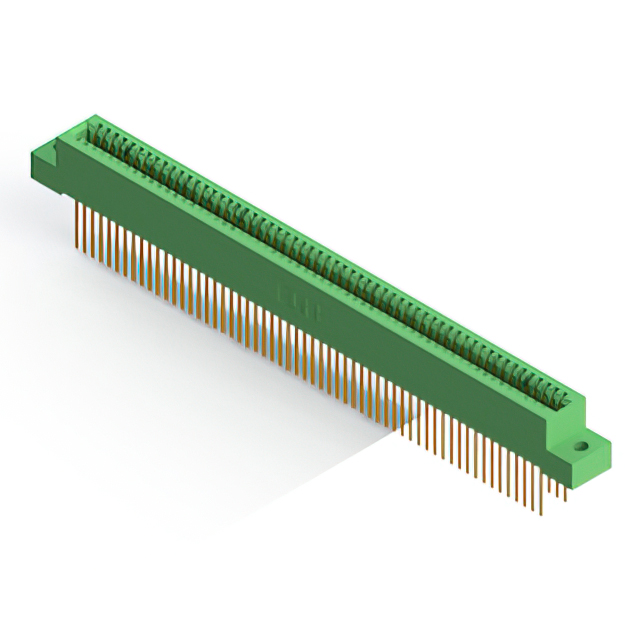

 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | 0.1 " | 2.54 mm | Gold | 116 | Copper Alloy | Non Specified - Dual Edge | Cantilever | Through Hole | 2 | Green | 58 | Dual | Solder Eyelet(s) | 0.25 Ám | 10 Áin | 3.18 mm | 0.125 in | Female | -65 ░C | 125 °C | Flush Mount Top Opening Unthreaded | 0.16 " | 4.06 mm |

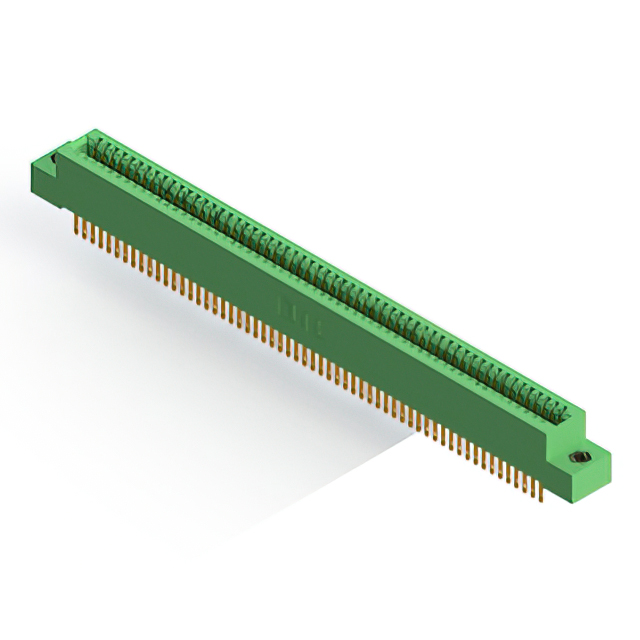

 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | 0.1 " | 2.54 mm | Gold | 116 | Copper Alloy | Non Specified - Dual Edge | Cantilever | Through Hole | 2 | Green | 58 | Dual | Solder Eyelet(s) | 0.25 Ám | 10 Áin | 3.18 mm | 0.125 in | Female | -65 ░C | 125 °C | Flush Mount M3 Threaded Insert Top Opening | ||
EDAC Inc. | 2 | Diallyl Phthalate (DAP) | 0.1 " | 2.54 mm | Gold | 116 | Copper Alloy | Non Specified - Dual Edge | Cantilever | Through Hole | 2 | Green | 58 | Dual | Solder | 0.25 Ám | 10 Áin | 3.18 mm | 0.125 in | Female | -65 ░C | 125 °C | |||
EDAC Inc. | 2 | Diallyl Phthalate (DAP) | 0.1 " | 2.54 mm | Gold | 116 | Copper Alloy | Non Specified - Dual Edge | Cantilever | Through Hole | 2 | Green | 58 | Dual | Solder | 0.25 Ám | 10 Áin | 3.18 mm | 0.125 in | Female | -65 ░C | 125 °C | Flush Mount M3 Threaded Insert Top Opening |
