SRN2510BTA Series

Catalog

POWER INDUCTOR (SMD), 470 NH, 3 A, SEMISHIELDED, 3.3 A, SRN2510BTA SERIES

Part	Current Rating (Amps)	Inductance	Material - Core	Current - Saturation (Isat)	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Mounting Type	Ratings	Supplier Device Package	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Inductance Frequency - Test	Type	Frequency - Self Resonant	Tolerance	Shielding	Q @ Freq	Operating Temperature [Min]	Operating Temperature [Max]	DC Resistance (DCR) [Max]	Package / Case	Package / Case	Q @ Freq [custom]	Q @ Freq [custom]	DC Resistance (DCR)
Bourns Inc. SRN2510BTA-R47M	3 A	470 nH	Ferrite	3.3 A	2.5 mm	0.079 in	0.098 in	2 mm	Surface Mount	AEC-Q200	2510	0.039 in	1 mm	100 kHz	Drum Core Wirewound	180 MHz	20 %	Shielded	1 MHz 15	-55 C	125 °C	35 mOhm	2520 Metric	1008
Bourns Inc. SRN2510BTA-1R5M	2.4 A	1.5 µH	Ferrite	2.1 A	2.5 mm	0.079 in	0.098 in	2 mm	Surface Mount	AEC-Q200	2510	0.039 in	1 mm	100 kHz	Drum Core Wirewound	85 MHz	20 %	Shielded		-55 C	125 °C	96 mOhm	2520 Metric	1008	1 MHz	10
Bourns Inc. SRN2510BTA-3R3M	1.7 A	3.3 µH	Ferrite	1.3 A	2.5 mm	0.079 in	0.098 in	2 mm	Surface Mount	AEC-Q200	2510	0.039 in	1 mm	100 kHz	Drum Core Wirewound	53 MHz	20 %	Shielded		-55 C	125 °C		2520 Metric	1008	1 MHz	10	204 mOhm

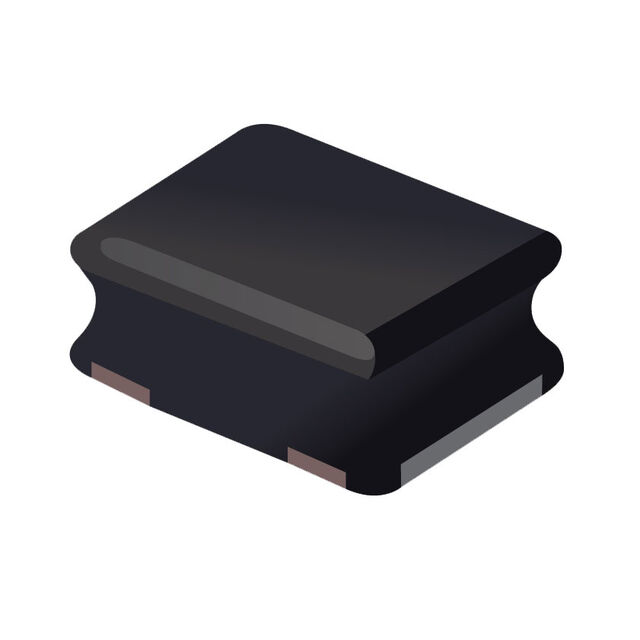

Bourns Inc. SRN2510BTA-100M	1 A	10 µH	Ferrite	750 mA	2.5 mm	0.079 in	0.098 in	2 mm	Surface Mount	AEC-Q200	2510	0.039 in	1 mm	100 kHz	Drum Core Wirewound	30 MHz	20 %	Shielded		-55 C	125 °C		2520 Metric	1008	1 MHz	10	552 mOhm
Bourns Inc. SRN2510BTA-2R2M	2 A	2.2 µH	Ferrite		2.5 mm	0.079 in	0.098 in	2 mm	Surface Mount	AEC-Q200	2510	0.039 in	1 mm	100 kHz	Drum Core Wirewound	72 MHz	20 %	Shielded		-55 C	125 °C	132 mOhm	2520 Metric	1008	1 MHz	10
Bourns Inc. SRN2510BTA-6R8M	1.2 A	6.8 µH	Ferrite	950 mA	2.5 mm	0.079 in	0.098 in	2 mm	Surface Mount	AEC-Q200	2510	0.039 in	1 mm	100 kHz	Drum Core Wirewound	36 MHz	20 %	Shielded		-55 C	125 °C	444 mOhm	2520 Metric	1008	1 MHz	10
Bourns Inc. SRN2510BTA-4R7M	1.4 A	4.7 ÁH	Ferrite	1.2 A	2.5 mm	0.079 in	0.098 in	2 mm	Surface Mount	AEC-Q200	2510	0.039 in	1 mm	100 kHz	Drum Core Wirewound	45 MHz	20 %	Shielded		-55 C	125 °C	300 mOhm	2520 Metric	1008	1 MHz	10
