TR9CU1800 Series

Catalog

AC/DC WALL MOUNT ADAPTER 10V 18W

Part	Operating Temperature [Min]	Operating Temperature [Max]	Efficiency	Applications	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Input Type	Power (Watts)	Input Connector	Region Utilized	No Load Power Consumption	Output Connector [x]	Output Connector	Output Connector [diameter]	Polarization	Voltage - Input [Max]	Voltage - Input [Min]	Form	Current - Output (Max) [Max]	Approval Agency	Cord Length	Cord Length	Voltage - Output	Standard Number
GlobTek, Inc. TR9CU1800CCP-IMR6B	-20 ░C	40 °C	CoC Tier 2 Level VI	Household Appliances ITE (Commercial) Medical	74 mm	1.45 in	2.91 in	43.5 mm	1.71 in	36.8 mm	Multi-Blade (Sold Separately)	18 W	Multi-Blade	International	75 mW	13.8 mm	Barrel Plug	2.1 mm 5.5 mm	Positive Center	264 VAC	90 VAC	Wall Mount	1.8 A	CB CCC CE cETLus EAC PSE RCM S-Mark UkrSEPRO VCCI	1.2 m	47.2 in	10 V

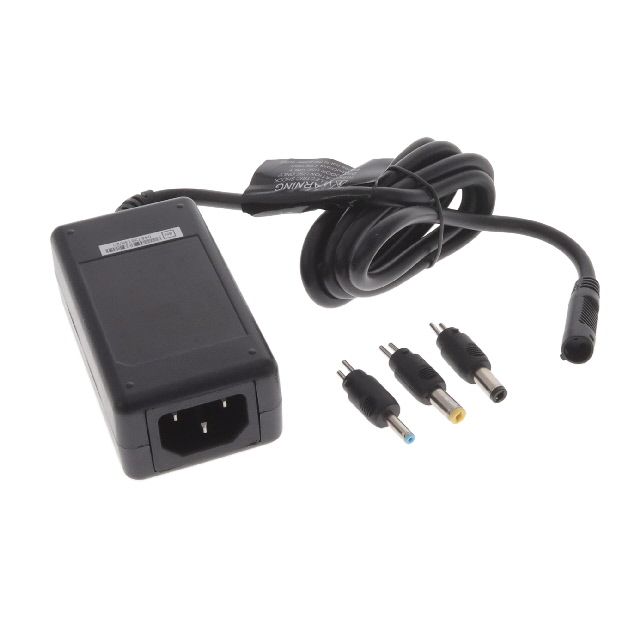

GlobTek, Inc. TR9CU1800T00-IMR6B	-20 ░C	40 °C	CoC Tier 1 Level VI	Household Appliances ITE (Commercial) Medical	87 mm	1.26 "	3.43 "	46.5 mm	1.83 in	32 mm	Cord (Sold Separately)	18 W	IEC 320-C14	International	75 mW		Barrel Plug Kit (1.3mm x 3.5mm			264 VAC	90 VAC	Desktop (Class I)	1.8 A	BSMI CB CCC CE cETLus cULus EAC ETL FCC LPS NOM PSE RCM S-Mark UkrSEPRO UL VCCI	1.2 m	47.2 in	10 V	60335-1 60601-1 60950-1 62368-1
