9913 Series
Manufacturer: Belden Inc.
Beta
⌘K

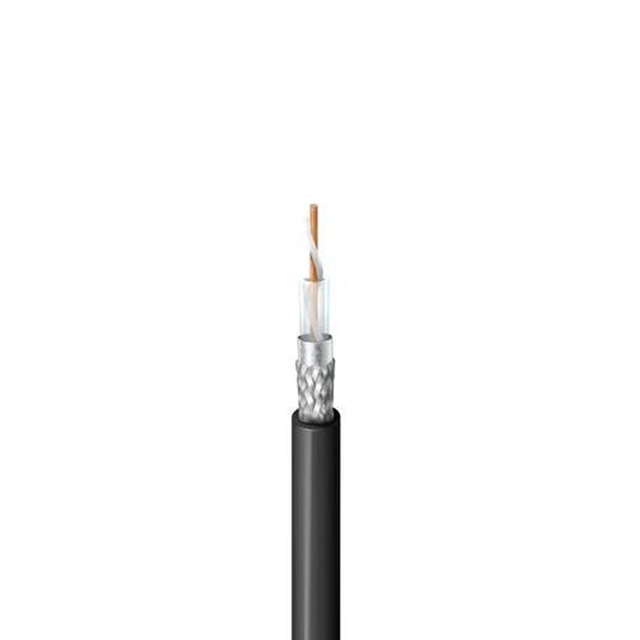

RG-8/U TYPE COAX
| Part | Operating Temperature [Max] | Operating Temperature [Min] | VoP, Velocity of Propagation | Dielectric Diameter [diameter] | Dielectric Diameter [diameter] | Shield Coverage | Shield Material | Conductor Material | Cable Group | Jacket (Insulation) Material | Jacket Color | Conductor Strand | Length [x] | Length [x] | Cable Type | Wire Gauge | Shield Type | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Usage | Impedance | Length | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | 75 ░C | -30 ░C | 84 | 0.285 in | 7.24 mm | 95 % 100 % | Aluminum Polyester Copper Tinned | Copper Bare | RG-8 | Poly-Vinyl Chloride (PVC) | Black | Solid | 152.4 m | 500 ft | Coaxial | 10 AWG | Braid Foil | 10.29 mm | 0.405 " | RF Signal | 50 Ohms | ||
 Belden Inc. | 75 ░C | -30 ░C | 84 | 0.285 in | 7.24 mm | 95 % 100 % | Aluminum Polyester Copper Tinned | Copper Bare | RG-8 | Poly-Vinyl Chloride (PVC) | Black | Solid | Coaxial | 10 AWG | Braid Foil | 10.29 mm | 0.405 " | RF Signal | 50 Ohms | 100 ' | 30.48 m |
