TR9CZ9470 Series

Catalog

AC/DC DESKTOP ADAPTER 19V 180W

Part	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Current - Output (Max) [Max]	Applications	Operating Temperature [Max]	Operating Temperature [Min]	Power (Watts)	Efficiency	Input Connector	Output Connector [custom]	Output Connector [custom]	Output Connector	Output Connector [custom]	Polarization	Input Type	Cord Length	Cord Length	Region Utilized	Voltage - Input [Max]	Voltage - Input [Min]	No Load Power Consumption	Voltage - Output	Form	Standard Number
GlobTek, Inc. TR9CZ9470LRPIMR6B	2.91 in	6.93 "	40 mm	74 mm	1.58 in	176 mm	9.47 A	Household Appliances ITE (Commercial) Medical	40 °C	-10 °C	180 W	CoC Tier 2 Level VI	IEC 320-C14	5.5 mm	11 mm	Barrel Plug R/A	2.5 mm	Positive Center	Cord (Sold Separately)	1.2 m	47.2 in	International	264 VAC	90 VAC	150 mW	19 V	Desktop (Class I)

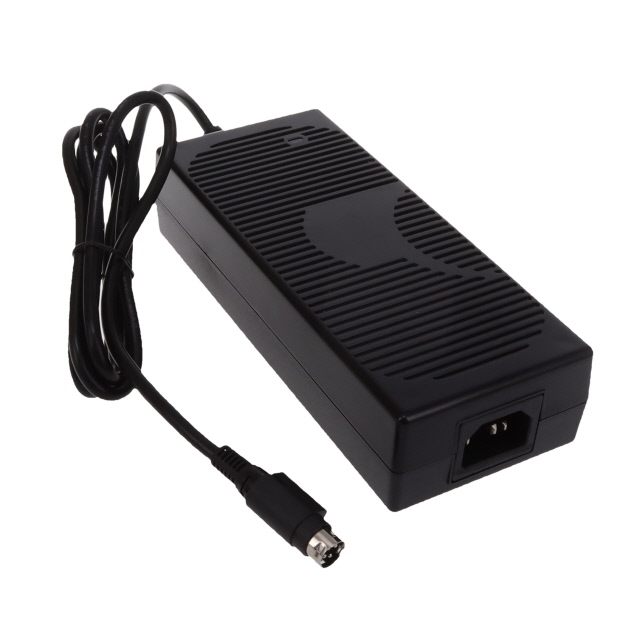

GlobTek, Inc. TR9CZ9470YL4CFIMR6B	2.91 in	6.93 "	40 mm	74 mm	1.58 in	176 mm	9.47 A	Household Appliances ITE (Commercial) Medical	40 °C	-10 °C	180 W	CoC Tier 1 Level VI	IEC 320-C14			Power DIN 4 Pin			Cord (Sold Separately)	1.2 m	47.2 in	International	264 VAC	90 VAC	150 mW	19 V	Desktop (Class I)	60335-1 60601-1 60950-1 62368-1

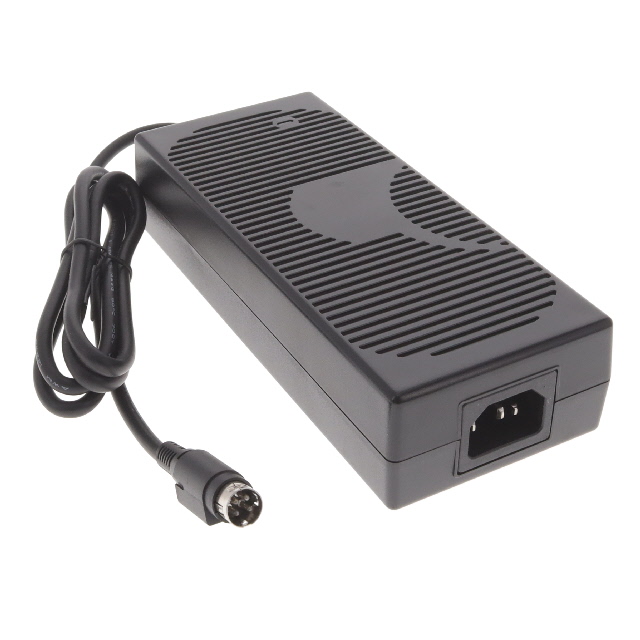

GlobTek, Inc. TR9CZ9470YL4IMR6B	2.91 in	6.95 in	40 mm	74 mm	1.58 in	176.5 mm	9.47 A	Household Appliances ITE (Commercial) Medical	40 °C	-10 °C	180 W	CoC Tier 2 Level VI	IEC 320-C14			Power DIN 4 Pin			Cord (Sold Separately)	1.2 m	47.2 in	International	264 VAC	90 VAC	150 mW	19 V	Desktop (Class I)	60335-1 60601-1-11 60601-1-2 60950-1 62368-1
