CB1.13 Series
Manufacturer: Lighthorse Technologies, Inc
Coming soon—Zenode’s new Cross Ref’s tool! RSVP for the webinar here to get early access
Beta
⌘K
CBL ASSY IPEX MHF1 PLG-PLG 11.5"
| Part | Features | Length | Operating Temperature (Max) | Operating Temperature (Min) | Frequency - Max | 1st Contact Gender | 1st Connector Mounting Type | 2nd Connector Mounting Type | Color | 2nd Contact Gender | Style | Overall Impedance | Cable Impedance | 2nd Connector | Cable Type Size | Cable Type | Cable Outer Diameter | 1st Connector | 1st Connector Mounting Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Lighthorse Technologies, Inc | Opposite Orientation Shielded | 11.5 in | 90 °C | -40 °C | 9 GHz | Female | Free Hanging (In-Line) | Free Hanging (In-Line) | Black | Female | I-PEX MHF1 to I-PEX MHF1 IPEX MHF1 IPEX MHF1 to U.FL (UMCC) U.FL (UMCC) | 50 Ohms | 50 Ohms | I-PEX MHF1 Plug IPEX MHF1 Plug Right Angle U.FL (UMCC) | 1.13 | 1.13mm OD Coaxial Cable Coaxial Cable OD Coaxial Cable | 1.13 mm | I-PEX MHF1 Plug IPEX MHF1 Plug Right Angle U.FL (UMCC) | |

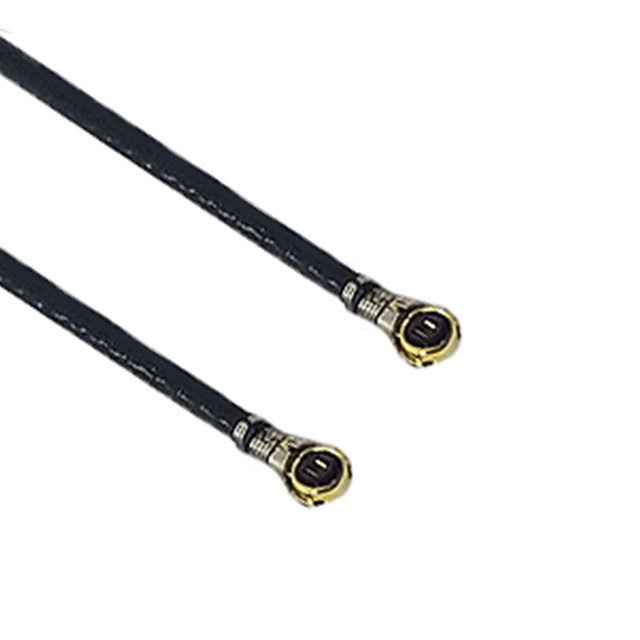

 Lighthorse Technologies, Inc | Shielded | 10.5 in | 90 °C | -40 °C | 12 Gbps | Female | Free Hanging (In-Line) | Free Hanging (In-Line) | Black | Female | I-PEX MHF4L to I-PEX MHF4L IPEX MHF4L to IPEX MHF4L | 50 Ohms | 50 Ohms | I-PEX MHF4L Plug IPEX MHF4L Plug Right Angle | 1.13 | 1.13mm OD Coaxial Cable Coaxial Cable OD Coaxial Cable | 1.13 mm | I-PEX MHF4L Plug IPEX MHF4L Plug Right Angle | |

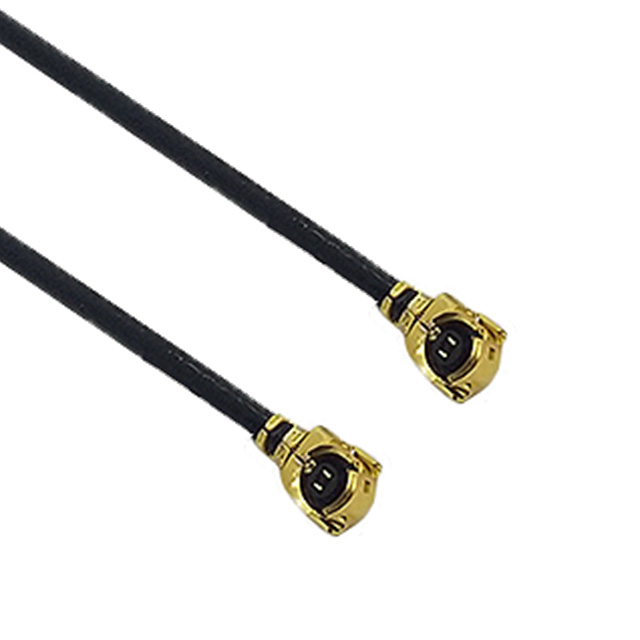

Lighthorse Technologies, Inc | Opposite Orientation Shielded | 1.5 in | 90 °C | -40 °C | 9 GHz | Female | Free Hanging (In-Line) | Free Hanging (In-Line) | Black | Female | I-PEX MHF1 to I-PEX MHF1 IPEX MHF1 IPEX MHF1 to U.FL (UMCC) U.FL (UMCC) | 50 Ohms | 50 Ohms | I-PEX MHF1 Plug IPEX MHF1 Plug Right Angle U.FL (UMCC) | 1.13 | 1.13mm OD Coaxial Cable Coaxial Cable OD Coaxial Cable | 1.13 mm | I-PEX MHF1 Plug IPEX MHF1 Plug Right Angle U.FL (UMCC) | |
Lighthorse Technologies, Inc | Opposite Orientation Shielded | 6.5 in | 90 °C | -40 °C | 9 GHz | Female | Free Hanging (In-Line) | Free Hanging (In-Line) | Black | Female | I-PEX MHF1 to I-PEX MHF1 IPEX MHF1 IPEX MHF1 to U.FL (UMCC) U.FL (UMCC) | 50 Ohms | 50 Ohms | I-PEX MHF1 Plug IPEX MHF1 Plug Right Angle U.FL (UMCC) | 1.13 | 1.13mm OD Coaxial Cable Coaxial Cable OD Coaxial Cable | 1.13 mm | I-PEX MHF1 Plug IPEX MHF1 Plug Right Angle U.FL (UMCC) | |
Lighthorse Technologies, Inc | Opposite Orientation Shielded | 10.5 in | 90 °C | -40 °C | 9 GHz | Female | Free Hanging (In-Line) | Free Hanging (In-Line) | Black | Female | I-PEX MHF1 to I-PEX MHF1 IPEX MHF1 IPEX MHF1 to U.FL (UMCC) U.FL (UMCC) | 50 Ohms | 50 Ohms | I-PEX MHF1 Plug IPEX MHF1 Plug Right Angle U.FL (UMCC) | 1.13 | 1.13mm OD Coaxial Cable Coaxial Cable OD Coaxial Cable | 1.13 mm | I-PEX MHF1 Plug IPEX MHF1 Plug Right Angle U.FL (UMCC) | |

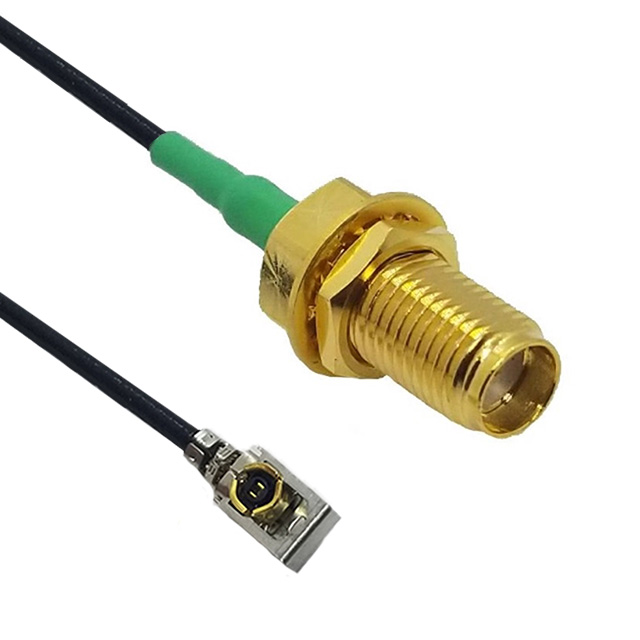

 Lighthorse Technologies, Inc | Locking | 10 in | 90 °C | -40 °C | 6000 MHz | Female | Panel Mount | Free Hanging (In-Line) | Black | Female | I-PEX MHF1 LK to SMA IPEX MHF1 LK to SMA | 50 Ohms | 50 Ohms | I-PEX MHF1 LK (Locking) Plug IPEX MHF1 LK (Locking) Plug Right Angle | 1.13 | 1.13mm OD Coaxial Cable Coaxial Cable OD Coaxial Cable | 1.13 mm | SMA Jack | Bulkhead Front Side Nut |
Lighthorse Technologies, Inc | Opposite Orientation Shielded | 8.5 in | 90 °C | -40 °C | 12 Gbps | Female | Free Hanging (In-Line) | Free Hanging (In-Line) | Black | Female | I-PEX MHF4L to I-PEX MHF4L IPEX MHF4L to IPEX MHF4L | 50 Ohms | 50 Ohms | I-PEX MHF4L Plug IPEX MHF4L Plug Right Angle | 1.13 | 1.13mm OD Coaxial Cable Coaxial Cable OD Coaxial Cable | 1.13 mm | I-PEX MHF4L Plug IPEX MHF4L Plug Right Angle | |
Lighthorse Technologies, Inc | Opposite Orientation Shielded | 3 " | 90 °C | -40 °C | 12 Gbps | Female | Free Hanging (In-Line) | Free Hanging (In-Line) | Black | Female | I-PEX MHF4L to I-PEX MHF4L IPEX MHF4L to IPEX MHF4L | 50 Ohms | 50 Ohms | I-PEX MHF4L Plug IPEX MHF4L Plug Right Angle | 1.13 | 1.13mm OD Coaxial Cable Coaxial Cable OD Coaxial Cable | 1.13 mm | I-PEX MHF4L Plug IPEX MHF4L Plug Right Angle | |
Lighthorse Technologies, Inc | Shielded | 3 " | 90 °C | -40 °C | 12 Gbps | Female | Free Hanging (In-Line) | Free Hanging (In-Line) | Black | Female | I-PEX MHF4L to I-PEX MHF4L IPEX MHF4L to IPEX MHF4L | 50 Ohms | 50 Ohms | I-PEX MHF4L Plug IPEX MHF4L Plug Right Angle | 1.13 | 1.13mm OD Coaxial Cable Coaxial Cable OD Coaxial Cable | 1.13 mm | I-PEX MHF4L Plug IPEX MHF4L Plug Right Angle | |
Lighthorse Technologies, Inc | Opposite Orientation Shielded | 0.5 ft | 90 °C | -40 °C | 9 GHz | Female | Free Hanging (In-Line) | Free Hanging (In-Line) | Black | Female | I-PEX MHF1 to I-PEX MHF1 IPEX MHF1 IPEX MHF1 to U.FL (UMCC) U.FL (UMCC) | 50 Ohms | 50 Ohms | I-PEX MHF1 Plug IPEX MHF1 Plug Right Angle U.FL (UMCC) | 1.13 | 1.13mm OD Coaxial Cable Coaxial Cable OD Coaxial Cable | 1.13 mm | I-PEX MHF1 Plug IPEX MHF1 Plug Right Angle U.FL (UMCC) |
