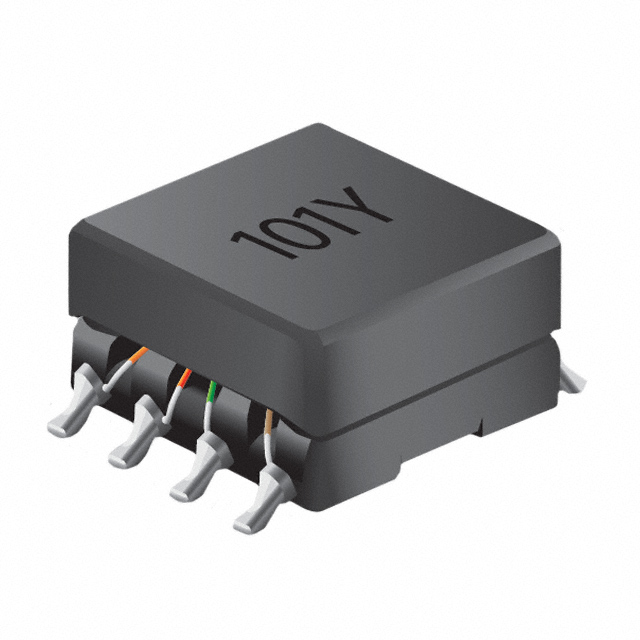

SRF1306 Series

Catalog

CMC9.5X10.5X5.75MM,60UH35%2A,NON-SHDSMD /TAPE & REEL - 13" REEL

Part	Voltage Rating - DC	Height (Max) [Max] [z]	Height (Max) [z]	Impedance @ Frequency	Number of Lines	Inductance @ Frequency	DC Resistance (DCR) (Max)	Operating Temperature [Min]	Operating Temperature [Max]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Current Rating (Max) [Max]	Mounting Type	DC Resistance (DCR) (Max) [Max]
Bourns Inc. SRF1306-600Y	50 VDC	0.238 in	6.05 mm	600 Ohms	2	60 µH	65 mOhm	-40 C	105 ░C	9.5 mm	0.374 in	0.413 in	10.5 mm	2 A	Surface Mount
Bourns Inc. SRF1306-501Y	50 VDC	0.238 in	6.05 mm	1.2 kOhms	2	100 kHz 500 µH		-40 C	105 ░C	9.5 mm	0.374 in	0.413 in	10.5 mm	400 mA	Surface Mount	300 mOhm
