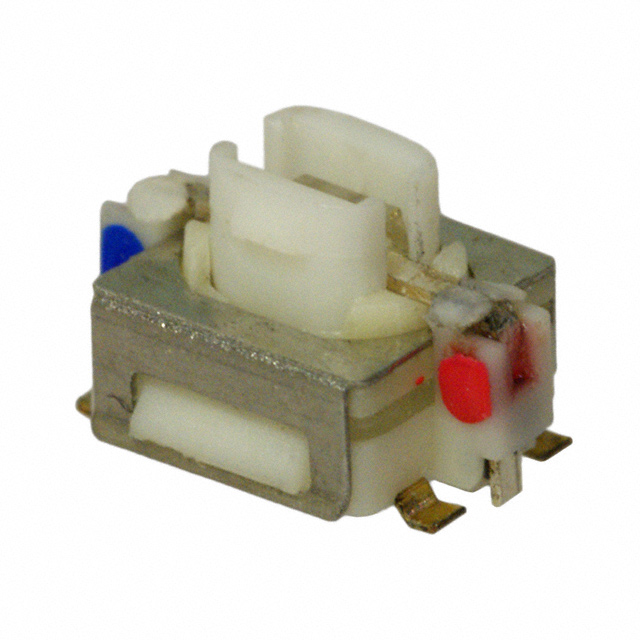

TL6210 Series

Manufacturer: E-Switch

Catalog

SWITCH TACTILE SPST-NO 0.05A 12V

Part	Switch Travel	Mechanical Life	Actuator Orientation	Actuator Height off PCB, Vertical [z]	Illumination	Actuator Type	Contact Rating @ Voltage	Outline [x]	Outline [y]	Circuit	Ingress Protection	Operating Force	Mounting Type	Switch Function	Illumination Voltage (Nominal)	Operating Temperature [Min]	Operating Temperature [Max]	Illumination Type, Color	Termination Style
E-Switch TL6210AF200ZQ	0.45 mm	100000 Cycles	Top Actuated	3.72 mm	Illuminated	Plunger for Cap	0.05 A 12 VDC	6.2 mm	4.6 mm	SPST-NO	IP67 - Dust Tight Waterproof	0.2 kgf	Surface Mount	Off-Mom	2 VDC 2.1 VDC	-20 ░C	70 °C	Green/Yellow LED	Gull Wing
E-Switch TL6210AF200GQ	0.45 mm	100000 Cycles	Top Actuated	3.72 mm	Illuminated	Plunger for Cap	0.05 A 12 VDC	6.2 mm	4.6 mm	SPST-NO	IP67 - Dust Tight Waterproof	0.2 kgf	Surface Mount	Off-Mom	2.1 VDC	-20 ░C	70 °C	Green LED	Gull Wing
E-Switch TL6210AF200RQ	0.45 mm	100000 Cycles	Top Actuated	3.72 mm	Illuminated	Plunger for Cap	0.05 A 12 VDC	6.2 mm	4.6 mm	SPST-NO	IP67 - Dust Tight Waterproof	0.2 kgf	Surface Mount	Off-Mom	1.95 VDC	-20 ░C	70 °C	LED Red	Gull Wing
E-Switch TL6210AF200NQ	0.45 mm	100000 Cycles	Top Actuated	3.72 mm	Non-Illuminated	Plunger for Cap	0.05 A 12 VDC	6.2 mm	4.6 mm	SPST-NO	IP67 - Dust Tight Waterproof	0.2 kgf	Surface Mount	Off-Mom		-20 ░C	70 °C		Gull Wing
E-Switch TL6210AF200WQ	0.45 mm	100000 Cycles	Top Actuated	3.72 mm	Illuminated	Plunger for Cap	0.05 A 12 VDC	6.2 mm	4.6 mm	SPST-NO	IP67 - Dust Tight Waterproof	0.2 kgf	Surface Mount	Off-Mom	3.3 VDC	-20 ░C	70 °C	LED White	Gull Wing
E-Switch TL6210AF200BQ	0.45 mm	100000 Cycles	Top Actuated	3.72 mm	Illuminated	Plunger for Cap	0.05 A 12 VDC	6.2 mm	4.6 mm	SPST-NO	IP67 - Dust Tight Waterproof	0.2 kgf	Surface Mount	Off-Mom	3.3 VDC	-20 ░C	70 °C	Blue LED	Gull Wing
