NHD-1.27 Series

Catalog

1.27" FULL COLOR OLED GLASS

Part	Diagonal Screen Size [custom]	Diagonal Screen Size [custom]	Display Mode	Viewing Area [y]	Viewing Area [x]	Interface	Display Type	Dot Pixels [x]	Dot Pixels [y]	Controller Type	Graphics Color	Dot Size [y]	Dot Size [x]	Dot Pitch [x]	Dot Pitch [y]	Viewing Area [z]	Background Color	Supplied Contents	Secondary Attributes	Function	Type	Contents	Utilized IC / Part	Interconnect System	Platform	Function	Diagonal Screen Size	Diagonal Screen Size

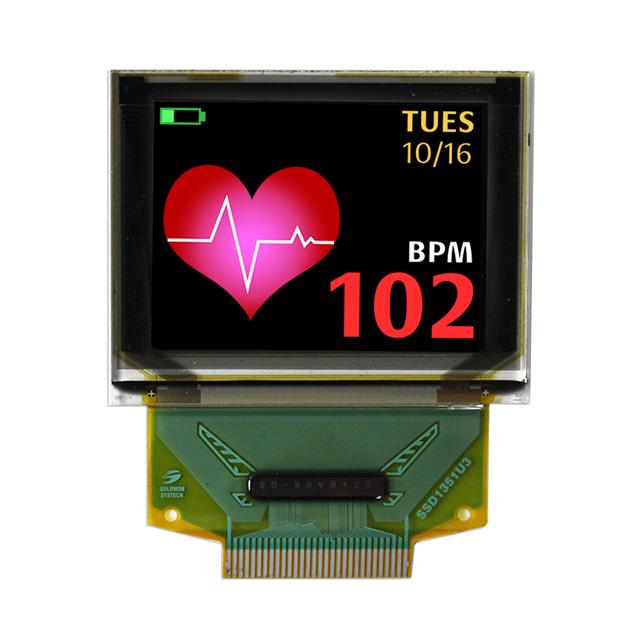

Newhaven Display Intl NHD-1.27-12896G	32.26 mm	1.27 in	Transflective	21.28 mm	27.71 mm	Parallel Serial	OLED	128	96	SSD1351	Blue Green Red

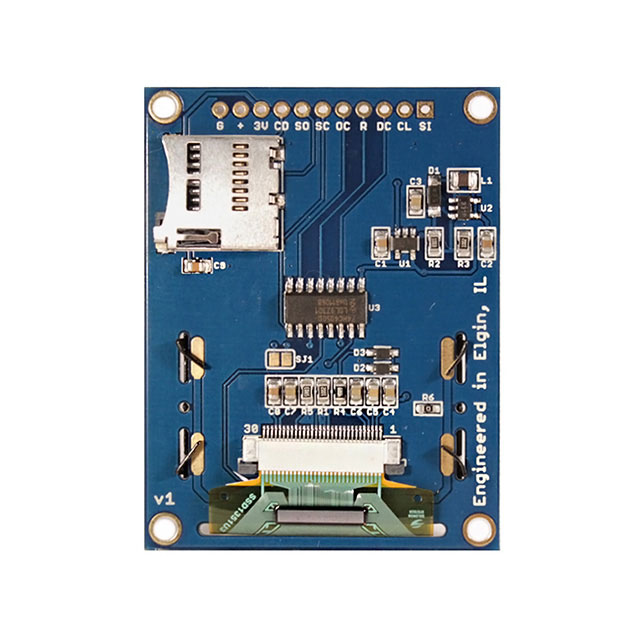

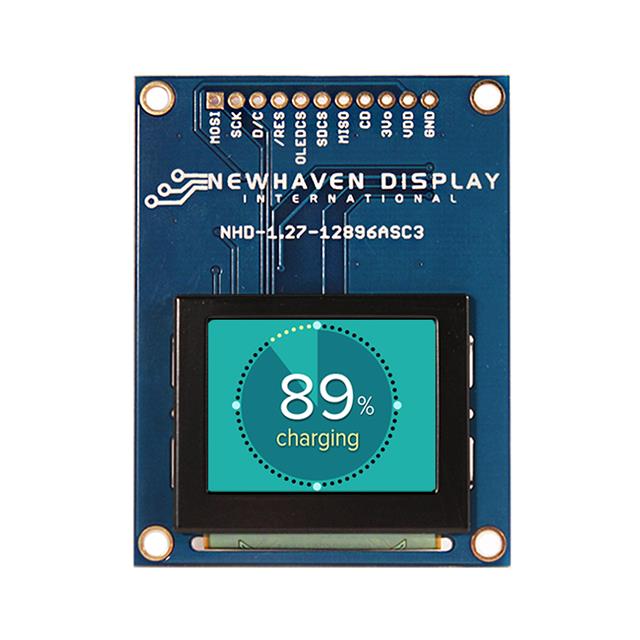

Newhaven Display Intl NHD-1.27-12896ASC3	32.26 mm	1.27 in		26.71 mm		SPI	OLED - Passive Matrix	128	96	SSD1351	Blue Green Red	0.19 mm	0.14 mm	0.2 mm	0.2 mm	20.28 mm	Black

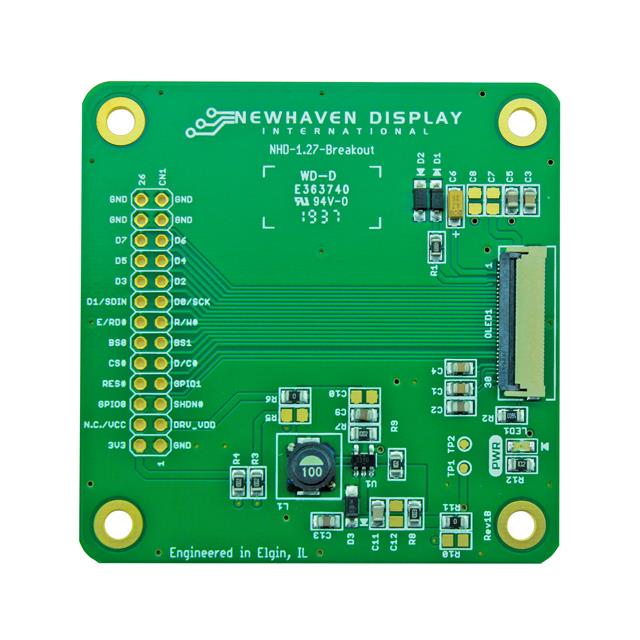

Newhaven Display Intl NHD-1.27-BREAKOUT																		Board(s)	SPI Interface(s)	Breakout Board	Display	Board(s)	NHD-1.27-12896G SSD1357

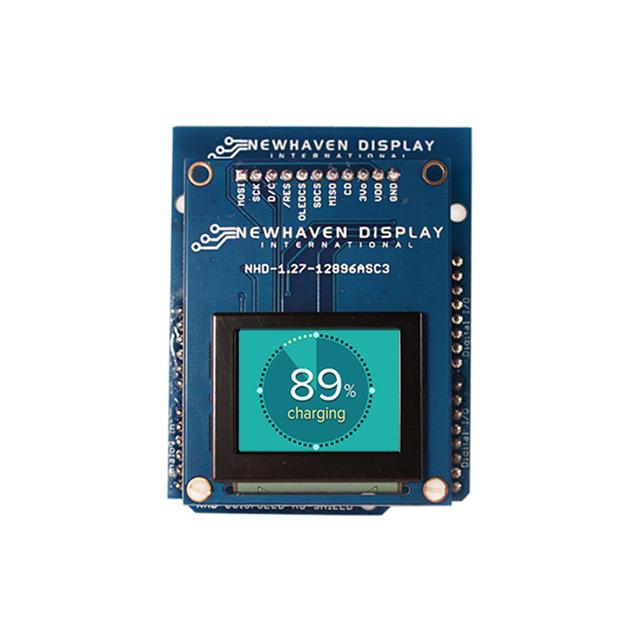

Newhaven Display Intl NHD-1.27-AU-SHIELD																				OLED	Display	Board(s)	NHD-1.27-12896ASC3 SSD1351	Arduino R3 Shield	Arduino	1.27 in

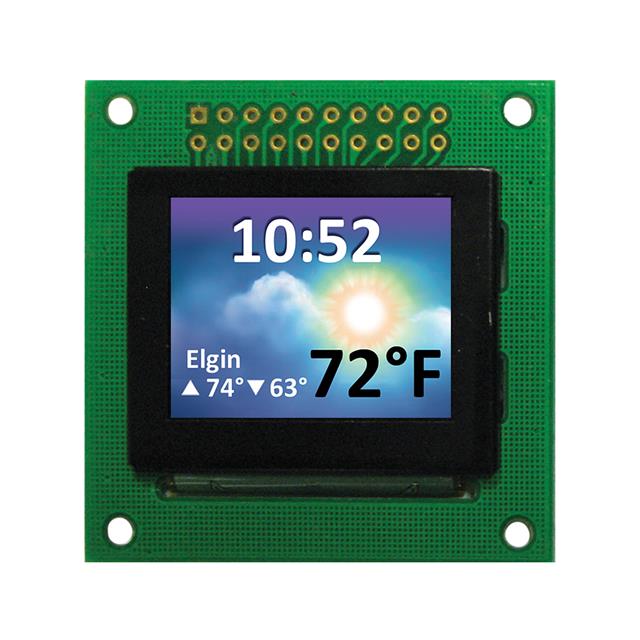

Newhaven Display Intl NHD-1.27-12896UGC3				26.71 mm		Parallel/Serial	OLED - Passive Matrix	128	96	SSD1351	Blue Green Red	0.2 mm	0.2 mm	0.22 mm	0.22 mm	20.28 mm											1.3 in	33.02 mm
