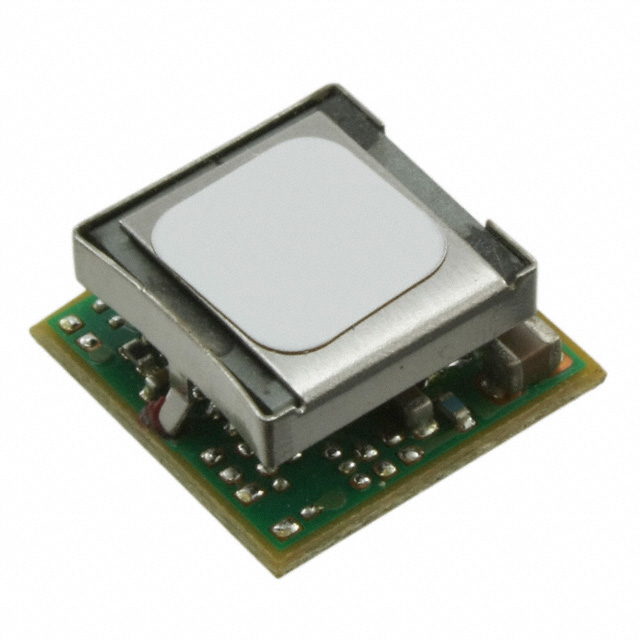

APTH006 Series

Catalog

DC DC CONVERTER 0.6-3.63V 22W

Part	Control Features	Number of Outputs	Package / Case	Features	Efficiency	Voltage - Input (Min) [Min]	Mounting Type	Type	Power (Watts)	Voltage - Output 1 [Min]	Voltage - Output 1 [Max]	Current - Output (Max) [Max]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Applications	Voltage - Input (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]
OmniOn Power™ APTH006A0X-SRZ	Active Low Enable	1	10-SMD Module	OCP OTP Remote On/Off UVLO	93 %	2.4 V	Surface Mount	Non-Isolated PoL Module	22 W	0.6 V	3.63 V	6 A	0.48 in	7.3 mm	0.29 in	0.48 in	12.2 mm	12.2 mm	ITE (Commercial)	5.5 V	85 °C	-40 C
OmniOn Power™ APTH006A0X-SRZ	Active Low Enable	1	10-SMD Module	OCP OTP Remote On/Off UVLO	93 %	2.4 V	Surface Mount	Non-Isolated PoL Module	22 W	0.6 V	3.63 V	6 A	0.48 in	7.3 mm	0.29 in	0.48 in	12.2 mm	12.2 mm	ITE (Commercial)	5.5 V	85 °C	-40 C
OmniOn Power™ APTH006A0X4-SRZ	Active High Enable	1	10-SMD Module	OCP OTP Remote On/Off UVLO	93 %	2.4 V	Surface Mount	Non-Isolated PoL Module	22 W	0.6 V	3.63 V	6 A	0.48 in	7.3 mm	0.29 in	0.48 in	12.2 mm	12.2 mm	ITE (Commercial)	5.5 V	85 °C	-40 C
OmniOn Power™ APTH006A0X4-SRZ	Active High Enable	1	10-SMD Module	OCP OTP Remote On/Off UVLO	93 %	2.4 V	Surface Mount	Non-Isolated PoL Module	22 W	0.6 V	3.63 V	6 A	0.48 in	7.3 mm	0.29 in	0.48 in	12.2 mm	12.2 mm	ITE (Commercial)	5.5 V	85 °C	-40 C
