ATE1E Series

Catalog

TOGGLE SWITCH, SPDT, 0.05A, 60VAC, TH

Part	Electrical Life	Illumination	Actuator Type	Termination Style	Actuator Length [x]	Voltage Rating - DC	Voltage Rating - AC	Operating Temperature [Max]	Operating Temperature [Min]	Features	Bushing Thread	Switch Function	Circuit	Current Rating (Amps)	Mounting Type
Nidec Components Corporation ATE1E-2M3-10-Z	50000 Cycles	Non-Illuminated	Standard Round	PC Pin	6 mm	48 V	48 V	85 °C	-20 ░C	Washable	Unthreaded	On-Off-On	SPDT	50 mA	Through Hole
Nidec Components Corporation ATE1E-2F3-10-Z	50000 Cycles	Non-Illuminated	Flatted	PC Pin	10 mm	48 V	48 V	85 °C	-20 ░C	Washable	Unthreaded	On-Off-On	SPDT	50 mA	Through Hole
Nidec Components Corporation ATE1E-6M3-10-Z	50000 Cycles	Non-Illuminated	Standard Round	PC Pin	6 mm	48 V	48 V	85 °C	-20 ░C	Washable	Unthreaded	On-Off-On	SPDT	50 mA	Right Angle Through Hole
Nidec Components Corporation ATE1E-2J3-10-Z	50000 Cycles	Non-Illuminated	Lever for Cap	PC Pin		48 V	48 V	85 °C	-20 ░C	Washable	Unthreaded	On-Off-On	SPDT	50 mA	Through Hole

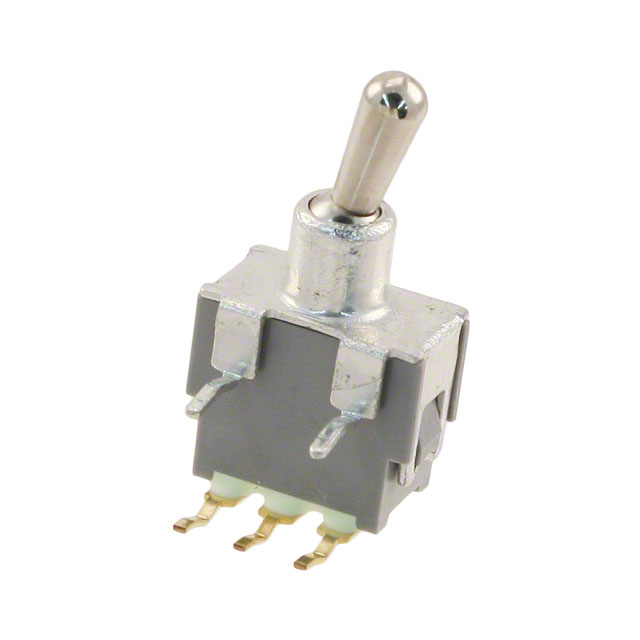

Nidec Components Corporation ATE1E-5M3-10-Z	50000 Cycles	Non-Illuminated	Standard Round	PC Pin	6 mm	48 V	48 V	85 °C	-20 ░C	Washable	Unthreaded	On-Off-On	SPDT	50 mA	Right Angle Through Hole
