NPPC201 Series
Manufacturer: Sullins Connector Solutions
Beta
⌘K

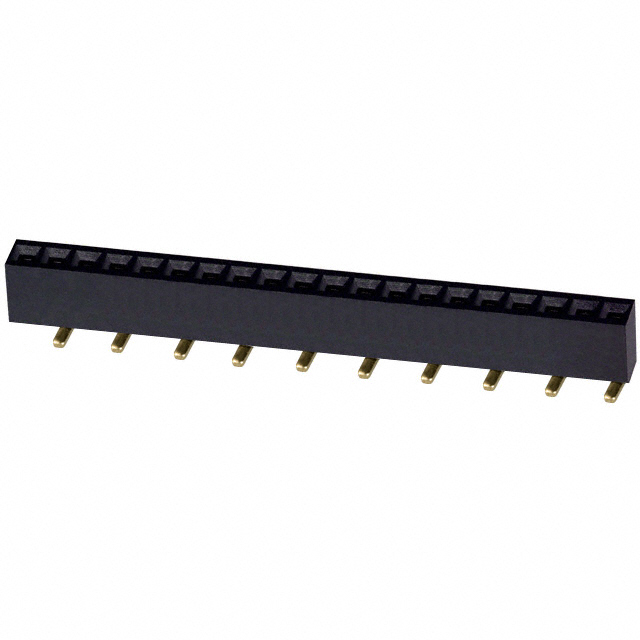

CONN HDR 20POS 0.1 GOLD SMD
| Part | Contact Type | Insulation Material | Voltage Rating | Insulation Height | Insulation Height | Contact Finish Thickness - Mating | Material Flammability Rating | Operating Temperature [Min] | Operating Temperature [Max] | Fastening Type | Termination | Contact Finish Thickness - Post | Contact Finish - Mating | Pitch - Mating | Pitch - Mating | Contact Finish - Post | Number of Rows | Current Rating (Amps) | Insulation Color | Contact Material | Number of Positions | Number of Positions Loaded | Contact Shape | Mounting Type | Connector Type | Contact Length - Post | Contact Length - Post [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Sullins Connector Solutions | Female Socket | Nylon 6T Polyamide (PA6T) | 250 VDC | 0.28 in | 7.1 mm | Flash | UL94 V-0 | -40 °C | 105 ░C | Push-Pull | Solder | Flash | Gold | 0.1 in | 2.54 mm | Gold | 1 | 3 A | Black | Phosphor Bronze | 20 | All | Square | Surface Mount | Header Top or Bottom Entry | ||
Sullins Connector Solutions | Female Socket | Nylon 6T Polyamide (PA6T) | 250 VDC | 0.335 " | 8.51 mm | Flash | UL94 V-0 | -40 °C | 105 ░C | Push-Pull | Solder | Flash | Gold | 0.1 in | 2.54 mm | Gold | 1 | 3 A | Black | Phosphor Bronze | 20 | All | Square | Through Hole | Header | 3.2 mm | 0.126 in |
