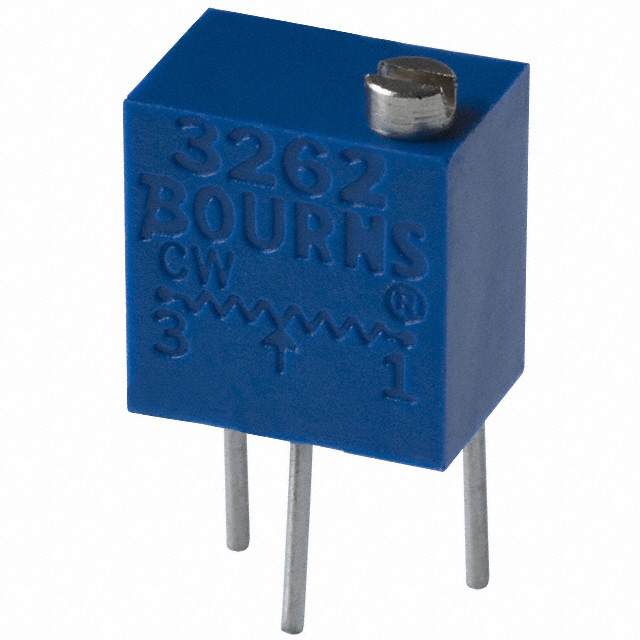

3262W Series

Catalog

TRIMMER 500KOHM 0.25W PC PIN TOP

Part	Termination Style	Mounting Type	Tolerance	Adjustment Type	Temperature Coefficient	Number of Turns	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Resistive Material	Power (Watts)	Power (Watts)	Resistance
Bourns Inc. 3262W-1-504	PC Pins	Through Hole	10 %	Top Adjustment	100 ppm/°C	12	4.32 mm	0.17 in	0.25 in	6.35 mm	Cermet	0.25 W	0.25 W
Bourns Inc. 3262W-1-200LF	PC Pins	Through Hole	10 %	Top Adjustment	100 ppm/°C	12	4.32 mm	0.17 in	0.25 in	6.35 mm	Cermet	0.25 W	0.25 W	20 Ohms
Bourns Inc. 3262W-1-104LF	PC Pins	Through Hole	10 %	Top Adjustment	100 ppm/°C	12	4.32 mm	0.17 in	0.25 in	6.35 mm	Cermet	0.25 W	0.25 W	100 kOhms
Bourns Inc. 3262W-1-105	PC Pins	Through Hole	10 %	Top Adjustment	100 ppm/°C	12	4.32 mm	0.17 in	0.25 in	6.35 mm	Cermet	0.25 W	0.25 W	1 MOhms
Bourns Inc. 3262W-1-501LF	PC Pins	Through Hole	10 %	Top Adjustment	100 ppm/°C	12	4.32 mm	0.17 in	0.25 in	6.35 mm	Cermet	0.25 W	0.25 W	0.5 kOhms
Bourns Inc. 3262W-1-203	PC Pins	Through Hole	10 %	Top Adjustment	100 ppm/°C	12	4.32 mm	0.17 in	0.25 in	6.35 mm	Cermet	0.25 W	0.25 W	20 kOhms
Bourns Inc. 3262W-1-103LF	PC Pins	Through Hole	10 %	Top Adjustment	100 ppm/°C	12	4.32 mm	0.17 in	0.25 in	6.35 mm	Cermet	0.25 W	0.25 W	10000 Ohms
Bourns Inc. 3262W-1-254	PC Pins	Through Hole	10 %	Top Adjustment	100 ppm/°C	12	4.32 mm	0.17 in	0.25 in	6.35 mm	Cermet	0.25 W	0.25 W	250000 Ohms
Bourns Inc. 3262W-1-253LF	PC Pins	Through Hole	10 %	Top Adjustment	100 ppm/°C	12	4.32 mm	0.17 in	0.25 in	6.35 mm	Cermet	0.25 W	0.25 W	25 kOhms
Bourns Inc. 3262W-1-500LF	PC Pins	Through Hole	10 %	Top Adjustment	100 ppm/°C	12	4.32 mm	0.17 in	0.25 in	6.35 mm	Cermet	0.25 W	0.25 W	50 Ohms
