SS0750 Series
Manufacturer: E-Switch
Beta
⌘K
SWITCH SNAP ACTION SPDT 3A 125V
| Part | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Operating Force | Voltage Rating - AC | Actuator Type | Circuit | Pretravel | Pretravel | Mechanical Life | Operating Position | Operating Position | Switch Function | Release Force | Electrical Life | Current Rating (Amps) | Termination Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

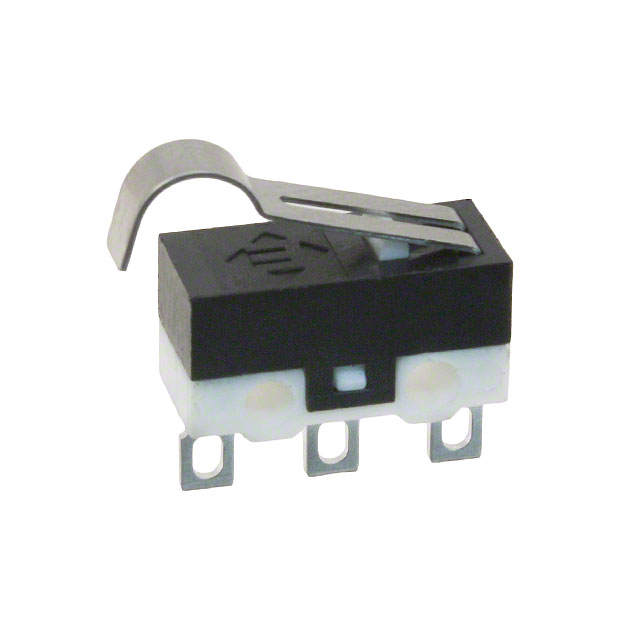

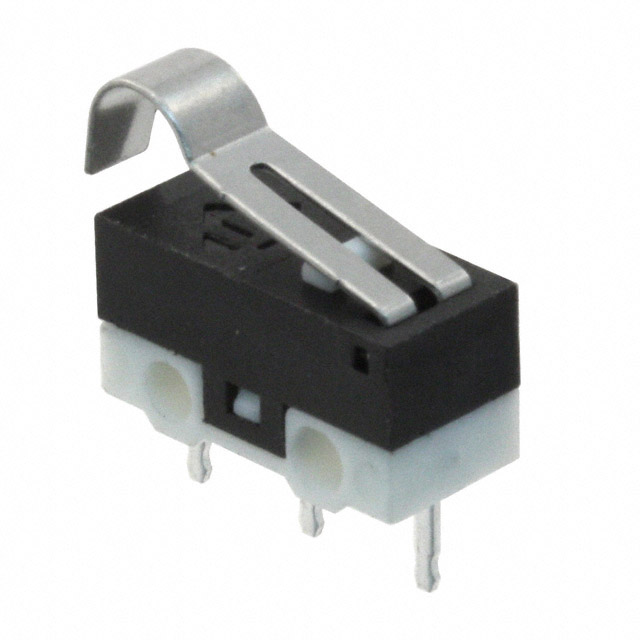

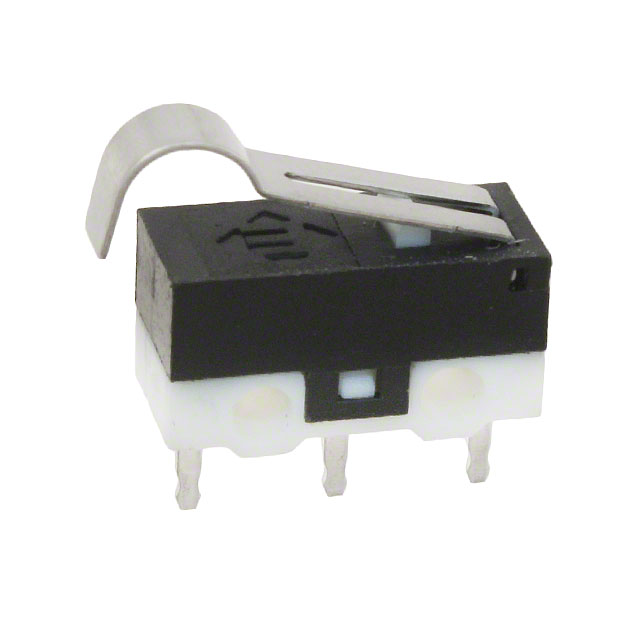

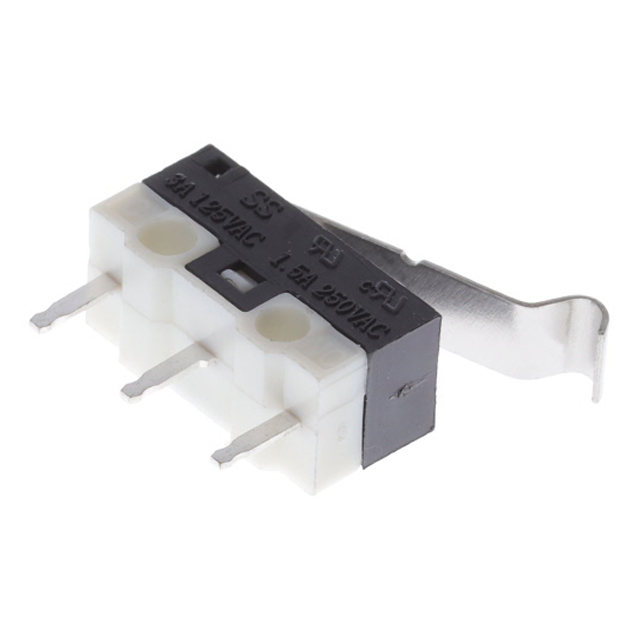

 E-Switch | Through Hole | -25 °C | 75 ░C | 30 gf | 125 V | Lever Simulated Roller | SPDT | 2 mm | 0.08 in | 1000000 Cycles | 10.8 mm | 0.425 in | On-Mom | 10 gf | 100000 Cycles | 3 A | PC Pin |

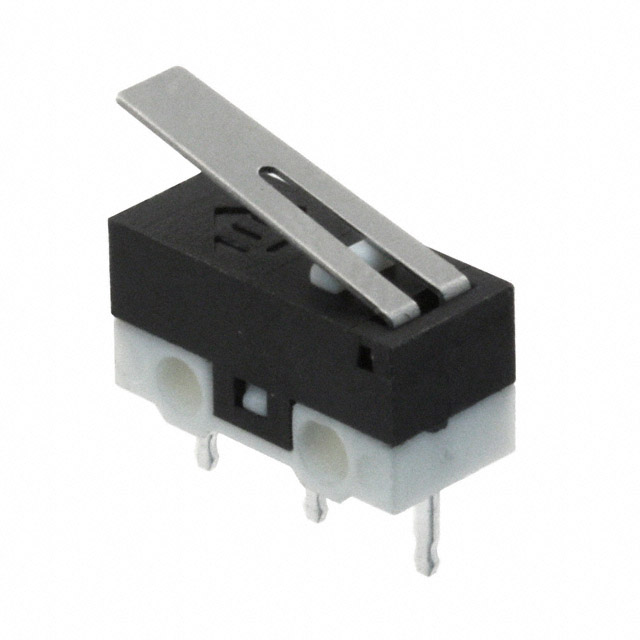

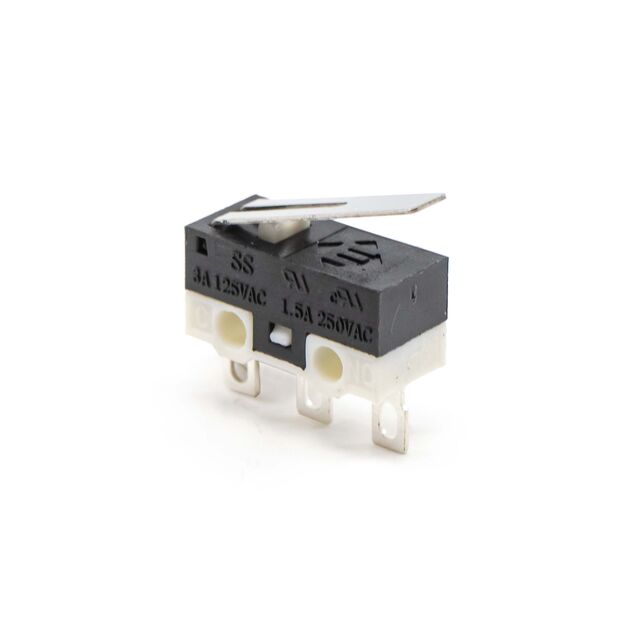

 E-Switch | Chassis Mount | -25 °C | 75 ░C | 20 gf | 125 V | Lever Straight | SPDT | 1.6 mm | 0.063 in | 1000000 Cycles | 8.8 mm | 0.345 in | On-Mom | 100000 Cycles | 3 A | Solder Lug | |
E-Switch | Chassis Mount | -25 °C | 75 ░C | 35 gf | 125 V | Lever Straight | SPDT | 1.6 mm | 0.063 in | 1000000 Cycles | 8.8 mm | 0.346 in | On-On | 10 gf | 100000 Cycles | 3 A | Solder Lug |
E-Switch | Right Angle Through Hole | -25 °C | 75 ░C | 130 gf | 125 V | Round (Pin Plunger) | SPDT | 0.35 mm | 0.014 in | 1000000 Cycles | 7 mm | 0.276 in | On-On | 60 gf | 100000 Cycles | 3 A | PC Pin |
