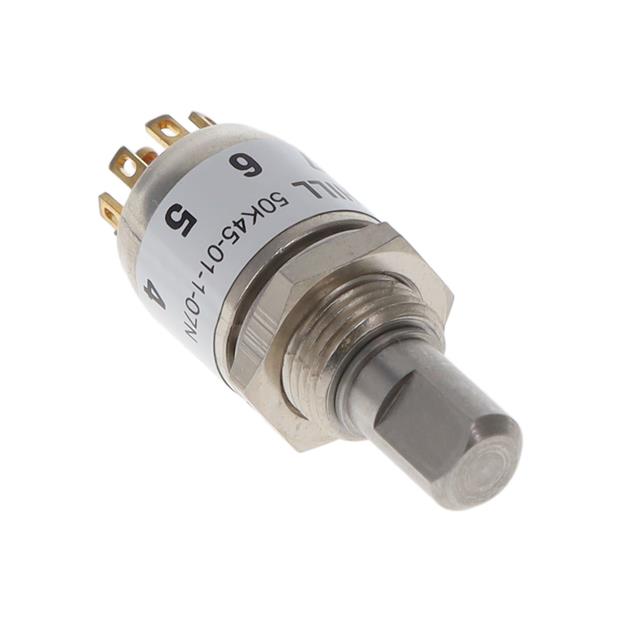

50K45 Series
Manufacturer: Grayhill Inc.
Beta
⌘K
SWITCH ROTARY 5POS 150MA 115V
| Part | Panel Cutout Dimensions [diameter] | Index Stops | Current Rating (Amps) | Depth Behind Panel [custom] | Circuit per Deck | Number of Positions | Voltage Rating - AC | Actuator Type | Number of Decks [custom] | Mounting Type | Number of Poles per Deck | Voltage Rating - DC | Contact Timing | Termination Style | Angle of Throw | Contact Finish | Actuator Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Grayhill Inc. | 9.65 mm | Fixed | 150 mA 200 mA | 18.77 mm | SP5T | 5 | 115 V | Flatted (6.35mm Dia) | 1 | Panel Mount | 1 | 28 V | Non-Shorting (BBM) | Solder Lug | 45 ° | Gold | 9.53 mm |
Grayhill Inc. | 9.65 mm | Fixed | 150 mA 200 mA | 18.77 mm | SP6T | 6 | 115 V | Flatted (6.35mm Dia) | 1 | Panel Mount | 1 | 28 V | Non-Shorting (BBM) | Solder Lug | 45 ° | Gold | 9.53 mm |
Grayhill Inc. | 9.65 mm | Fixed | 150 mA 200 mA | 18.77 mm | SP3T | 115 V | Flatted (6.35mm Dia) | 1 | Panel Mount | 1 | 28 V | Non-Shorting (BBM) | Solder Lug | 45 ° | Gold | 9.53 mm | |
Grayhill Inc. | 9.65 mm | Fixed | 150 mA 200 mA | 18.77 mm | DP4T | 4 | 115 V | Flatted (6.35mm Dia) | 1 | Panel Mount | 2 | 28 V | Non-Shorting (BBM) | Solder Lug | 45 ° | Gold | 9.53 mm |
 Grayhill Inc. | 9.65 mm | Continuous | 150 mA 200 mA | 18.77 mm | SP8T | 8 | 115 V | Flatted (6.35mm Dia) | 1 | Panel Mount | 1 | 28 V | Non-Shorting (BBM) | Solder Lug | 45 ° | Gold | 9.53 mm |
 Grayhill Inc. | 9.65 mm | Fixed | 150 mA 200 mA | 18.77 mm | SP7T | 7 | 115 V | Flatted (6.35mm Dia) | 1 | Panel Mount | 1 | 28 V | Non-Shorting (BBM) | Solder Lug | 45 ° | Gold | 9.53 mm |
