M80-867 Series

Catalog

CONNECTOR, HEADER, 16POS, 2ROW, 2MM

Part	Contact Finish Thickness - Post [custom]	Contact Finish Thickness - Post [custom]	Mated Stacking Heights	Material Flammability Rating	Number of Positions Loaded	Contact Finish Thickness - Mating [custom]	Contact Finish Thickness - Mating [custom]	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Contact Finish - Mating	Fastening Type	Row Spacing - Mating	Row Spacing - Mating	Insulation Color	Pitch - Mating	Pitch - Mating	Shrouding	Voltage Rating	Contact Type	Insulation Material	Contact Length - Post	Contact Length - Post	Number of Rows [custom]	Contact Shape	Mounting Type	Current Rating (Amps)	Style	Contact Finish - Post	Number of Positions	Connector Type	Contact Material	Insulation Height [z]	Insulation Height [z]	Number of Positions [custom]
Harwin Inc. M80-8671622	118.1 µin	3 µm	7.23 mm 7.85 mm 10.2 mm 13.51 mm	UL94 V-0	All	29.5 µin	0.75 µm	-55 C	125 °C	Solder	Gold	Latch Lock	2 mm	0.079 in	Black	0.079 "	2 mm	Shrouded - 4 Wall	800 V	Male Pin	Polyester Glass Filled	0.118 in	3 mm	2	Circular	Through Hole	2.2 A	Board to Board Cable	Tin-Lead	16	Header	Phosphor Bronze	0.219 in	5.56 mm

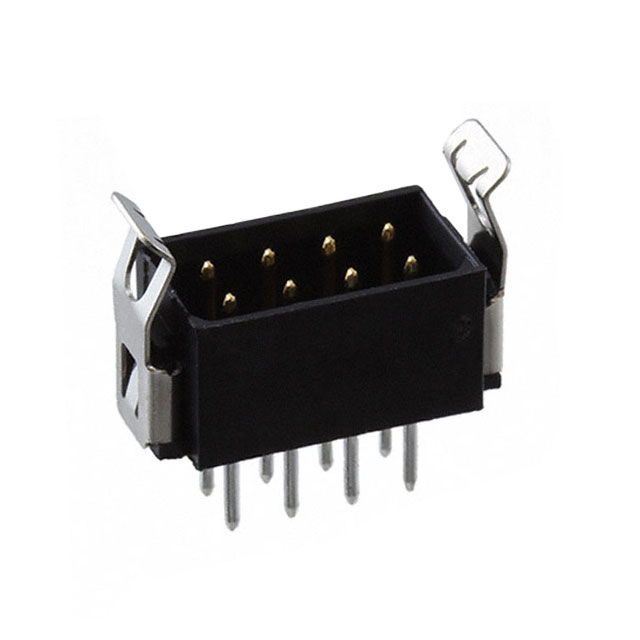

Harwin Inc. M80-8670822	118.1 µin	3 µm	7.23 mm 7.85 mm 10.2 mm 13.51 mm	UL94 V-0	All	29.5 µin	0.75 µm	-55 C	125 °C	Solder	Gold	Latch Lock	2 mm	0.079 in	Black	0.079 "	2 mm	Shrouded - 4 Wall	800 V	Male Pin	Polyester Glass Filled	0.118 in	3 mm	2	Circular	Through Hole	2.2 A	Board to Board Cable	Tin-Lead	8	Header	Phosphor Bronze	0.219 in	5.56 mm
Harwin Inc. M80-8670622	118.1 µin	3 µm	7.23 mm 7.85 mm 10.2 mm 13.51 mm	UL94 V-0	All	29.5 µin	0.75 µm	-55 C	125 °C	Solder	Gold	Latch Lock	2 mm	0.079 in	Black	0.079 "	2 mm	Shrouded - 4 Wall	800 V	Male Pin	Polyester Glass Filled	0.118 in	3 mm	2	Circular	Through Hole	2.2 A	Board to Board Cable	Tin-Lead	6	Header	Phosphor Bronze	0.219 in	5.56 mm
Harwin Inc. M80-8671422	118.1 µin	3 µm	7.23 mm 7.85 mm 10.2 mm 13.51 mm	UL94 V-0	All	29.5 µin	0.75 µm	-55 C	125 °C	Solder	Gold	Latch Lock	2 mm	0.079 in	Black	0.079 "	2 mm	Shrouded - 4 Wall	800 V	Male Pin	Polyester Glass Filled	0.118 in	3 mm	2	Circular	Through Hole	2.2 A	Board to Board Cable	Tin-Lead	14	Header	Phosphor Bronze	0.219 in	5.56 mm
Harwin Inc. M80-8673422	118.1 µin	3 µm	7.23 mm 7.85 mm 10.2 mm 13.51 mm	UL94 V-0	All	29.5 µin	0.75 µm	-55 C	125 °C	Solder	Gold	Latch Lock	2 mm	0.079 in	Black	0.079 "	2 mm	Shrouded - 4 Wall	800 V	Male Pin	Polyester Glass Filled	0.118 in	3 mm	2	Circular	Through Hole	2.2 A	Board to Board Cable	Tin-Lead		Header	Phosphor Bronze	0.219 in	5.56 mm	34
Harwin Inc. M80-8672022	118.1 µin	3 µm	7.23 mm 7.85 mm 10.2 mm 13.51 mm	UL94 V-0	All	29.5 µin	0.75 µm	-55 C	125 °C	Solder	Gold	Latch Lock	2 mm	0.079 in	Black	0.079 "	2 mm	Shrouded - 4 Wall	800 V	Male Pin	Polyester Glass Filled	0.118 in	3 mm	2	Circular	Through Hole	2.2 A	Board to Board Cable	Tin-Lead	20	Header	Phosphor Bronze	0.219 in	5.56 mm
Harwin Inc. M80-8670422	118.1 µin	3 µm	7.23 mm 7.85 mm 10.2 mm 13.51 mm	UL94 V-0	All	29.5 µin	0.75 µm	-55 C	125 °C	Solder	Gold	Latch Lock	2 mm	0.079 in	Black	0.079 "	2 mm	Shrouded - 4 Wall	800 V	Male Pin	Polyester Glass Filled	0.118 in	3 mm	2	Circular	Through Hole	2.2 A	Board to Board Cable	Tin-Lead	4	Header	Phosphor Bronze	0.219 in	5.56 mm

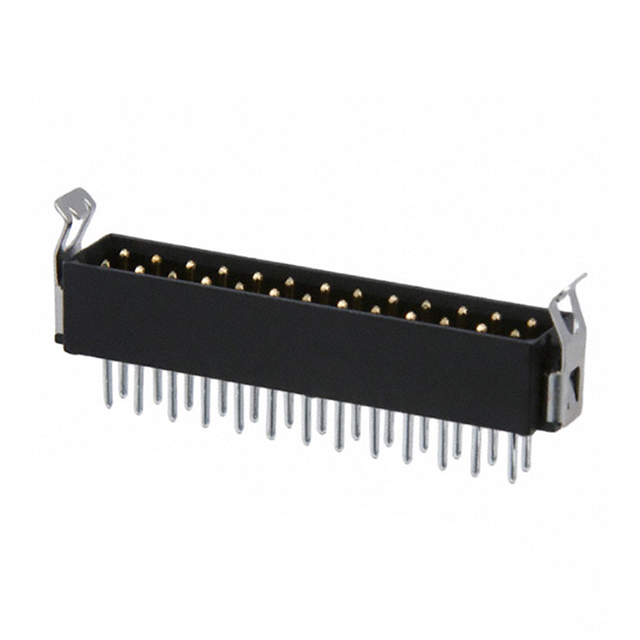

Harwin Inc. M80-8672622	118.1 µin	3 µm	7.23 mm 7.85 mm 10.2 mm 13.51 mm	UL94 V-0	All	29.5 µin	0.75 µm	-55 C	125 °C	Solder	Gold	Latch Lock	2 mm	0.079 in	Black	0.079 "	2 mm	Shrouded - 4 Wall	800 V	Male Pin	Polyester Glass Filled	0.118 in	3 mm	2	Circular	Through Hole	2.2 A	Board to Board Cable	Tin-Lead	26	Header	Phosphor Bronze	0.219 in	5.56 mm

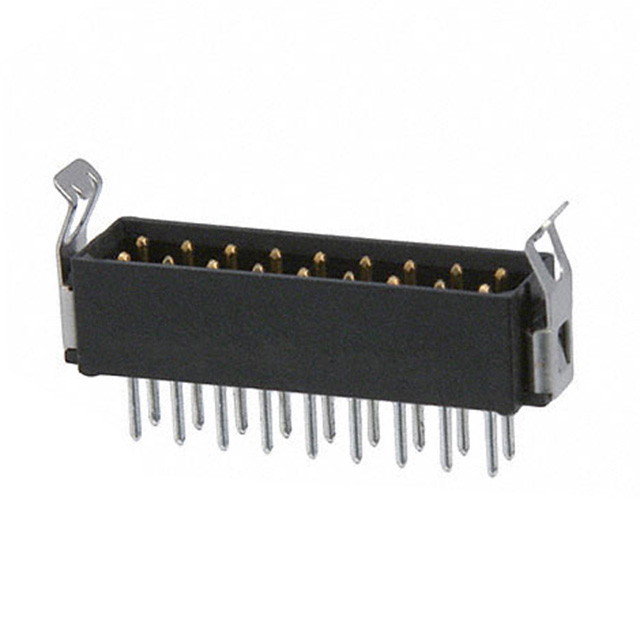

Harwin Inc. M80-8671822	118.1 µin	3 µm	7.23 mm 7.85 mm 10.2 mm 13.51 mm	UL94 V-0	All	29.5 µin	0.75 µm	-55 C	125 °C	Solder	Gold	Latch Lock	2 mm	0.079 in	Black	0.079 "	2 mm	Shrouded - 4 Wall	800 V	Male Pin	Polyester Glass Filled	0.118 in	3 mm	2	Circular	Through Hole	2.2 A	Board to Board Cable	Tin-Lead	18	Header	Phosphor Bronze	0.219 in	5.56 mm

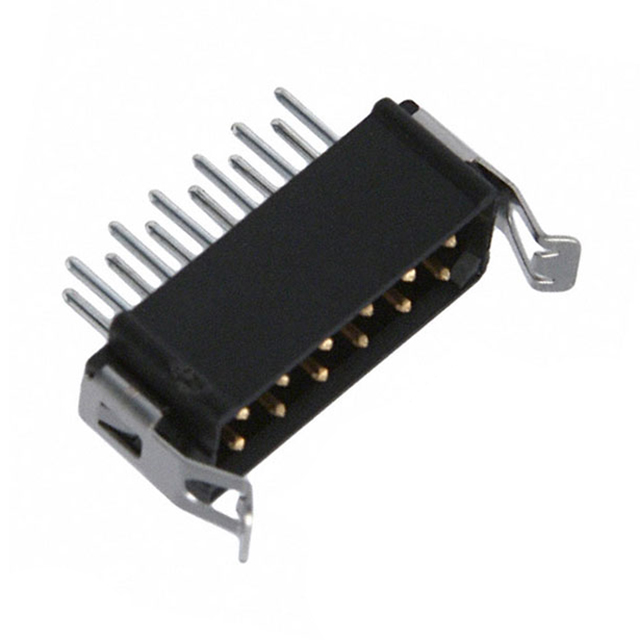

Harwin Inc. M80-8671222	118.1 µin	3 µm	7.23 mm 7.85 mm 10.2 mm 13.51 mm	UL94 V-0	All	29.5 µin	0.75 µm	-55 C	125 °C	Solder	Gold	Latch Lock	2 mm	0.079 in	Black	0.079 "	2 mm	Shrouded - 4 Wall	800 V	Male Pin	Polyester Glass Filled	0.118 in	3 mm	2	Circular	Through Hole	2.2 A	Board to Board Cable	Tin-Lead	12	Header	Phosphor Bronze	0.219 in	5.56 mm
