MLW3018 Series

Catalog

SWITCH ROCKER SPDT 5A 125V

Part	Electrical Life	Mechanical Life	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Mounting Type	Voltage Rating - DC	Circuit	Voltage Rating - AC	Termination Style	Actuator Marking	Switch Function	Features	Approval Agency	Color - Actuator/Cap	Actuator Type	Operating Temperature [Max]	Operating Temperature [Min]	Current Rating (Amps)	Panel Cutout Dimensions [custom]	Panel Cutout Dimensions	Illumination Type, Color	Illumination Voltage (Nominal)
NKK Switches MLW3018-00-LC-1A	10000 Cycles	30000 Steps	16.7 mm	18.7 mm	Panel Mount Snap-In	30 V	SPDT	125 V	Solder Lug	No Marking	Mom-Off-Mom	Epoxy Sealed Terminals	UL	Red	Concave (Curved)	50 °C	-10 °C	3 A 5 A
NKK Switches MLW3018-00PG-1A	10000 Cycles	30000 Steps	16.7 mm	18.7 mm	Panel Mount Snap-In	30 V	SPDT	125 V	Solder Lug	No Marking	Mom-Off-Mom	Epoxy Sealed Terminals	UL	Blue	Paddle	50 °C	-10 °C	3 A 5 A
NKK Switches MLW3018-00-RB-2B	10000 Cycles	30000 Steps			Panel Mount Snap-In	30 V	SPDT	125 V	Solder Lug	No Marking	Mom-Off-Mom	Epoxy Sealed Terminals	UL	White	Concave (Curved)	50 °C	-10 °C	3 A 5 A	19.2 mm˛	19.2 mm²
NKK Switches MLW3018-F-SF-1A	10000 Cycles	30000 Steps	16.7 mm	18.7 mm	Panel Mount Snap-In	30 V	SPDT	125 V	Solder Lug	No Marking	Mom-Off-Mom	Epoxy Sealed Terminals	UL	Green	Sculptured - Illuminated	50 °C	-10 °C	3 A 5 A			Green LED	2.1 VDC

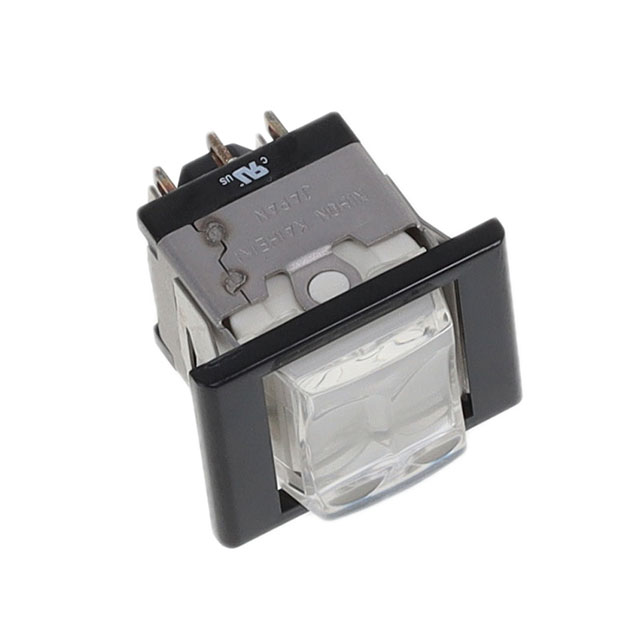

NKK Switches MLW3018-E-SB-1A	10000 Cycles	30000 Steps	16.7 mm	18.7 mm	Panel Mount Snap-In	30 V	SPDT	125 V	Solder Lug	No Marking	Mom-Off-Mom	Epoxy Sealed Terminals	UL	White	Sculptured - Illuminated	50 °C	-10 °C	3 A 5 A			LED Yellow	2 VDC

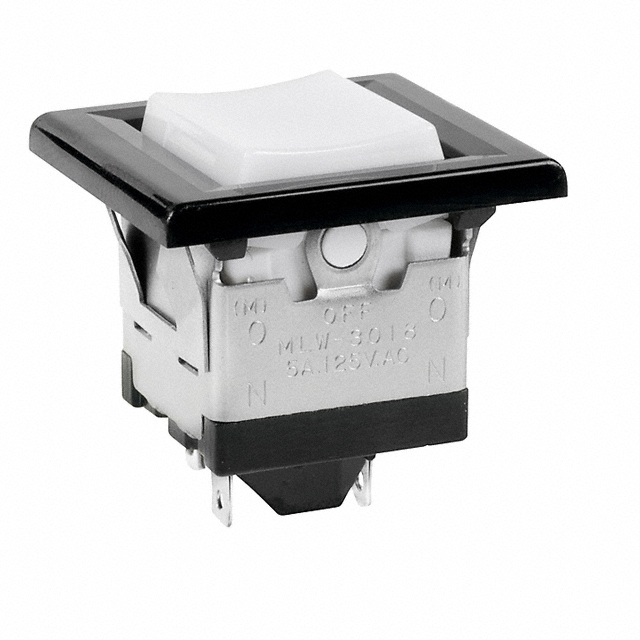

NKK Switches MLW3018-28-RB-2A	10000 Cycles	30000 Steps			Panel Mount Snap-In	30 V	SPDT	125 V	Solder Lug	No Marking	Mom-Off-Mom	Epoxy Sealed Terminals	UL	White	Concave (Curved) - Illuminated	50 °C	-10 °C	3 A 5 A		19.2 mm²	Incandescent White	28 VAC
NKK Switches MLW3018-00-RB-1A	10000 Cycles	30000 Steps	16.7 mm	18.7 mm	Panel Mount Snap-In	30 V	SPDT	125 V	Solder Lug	No Marking	Mom-Off-Mom	Epoxy Sealed Terminals	UL	White	Concave (Curved)	50 °C	-10 °C	3 A 5 A
NKK Switches MLW3018-F-LB-1A	10000 Cycles	30000 Steps	16.7 mm	18.7 mm	Panel Mount Snap-In	30 V	SPDT	125 V	Solder Lug	No Marking	Mom-Off-Mom		UL	White	Concave (Curved) - Illuminated	50 °C	-10 °C	3 A 5 A			Green LED	2.1 VDC
NKK Switches MLW3018-00-RA-1A	10000 Cycles	30000 Steps	16.7 mm	18.7 mm	Panel Mount Snap-In	30 V	SPDT	125 V	Solder Lug	No Marking	Mom-Off-Mom	Epoxy Sealed Terminals	UL	Black	Concave (Curved)	50 °C	-10 °C	3 A 5 A
