7002-1541 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

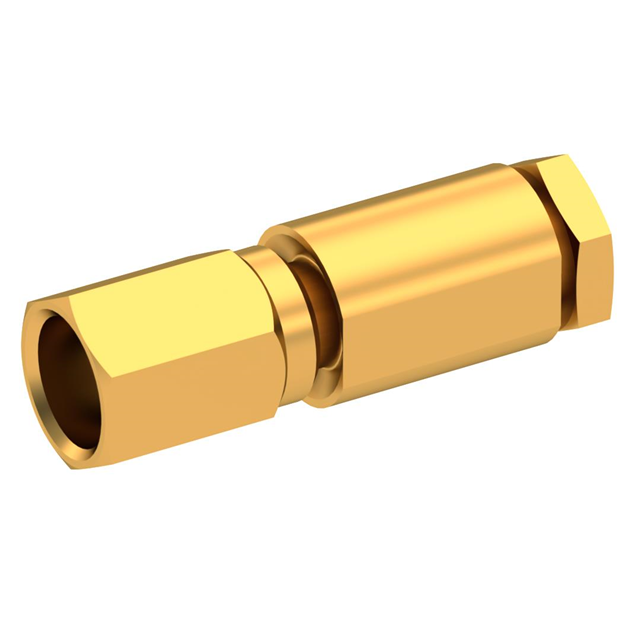

SSMC F STR NA SD .086
| Part | Dielectric Material | Center Contact Plating | Mating Cycles | Body Material | Operating Temperature [Min] | Operating Temperature [Max] | Body Finish | Voltage Rating | Fastening Type | Cable Group | Center Contact Material | Connector Type | Connector Style | Mounting Type | Impedance | Contact Termination | Number of Ports | Shield Termination | Housing Color | Frequency - Max [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | Polytetrafluoroethylene (PTFE) | Gold | 500 | Beryllium Copper | -65 ░C | 165 °C | Gold | 250 V | Threaded | RG-405 (.085" Semi Rigid) | Beryllium Copper | Female Socket Plug | SSMC | Free Hanging (In-Line) | 50 Ohms | Solder | 1 | Clamp | Gold | 12.4 GHz |
