1274AS Series

Catalog

INDUCTOR, 2.2UH, 9.5A, 30%, SHIELDED

Part	Shielding	Material - Core	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	DC Resistance (DCR) [Max]	Inductance Frequency - Test	Current - Saturation (Isat)	Tolerance	Inductance	Package / Case	Type	Current Rating (Amps)	Mounting Type	DC Resistance (DCR)	Operating Temperature [Max]	Operating Temperature [Min]
Murata Electronics 1274AS-H-2R2N=P3	Shielded	Ferrite	0.394 in	0.394 in	10 mm	10 mm	0.197 in	5 mm	9.6 mOhm	100 kHz	12.6 A	30 %	2.2 µH	Nonstandard	Drum Core Wirewound	8 A	Surface Mount

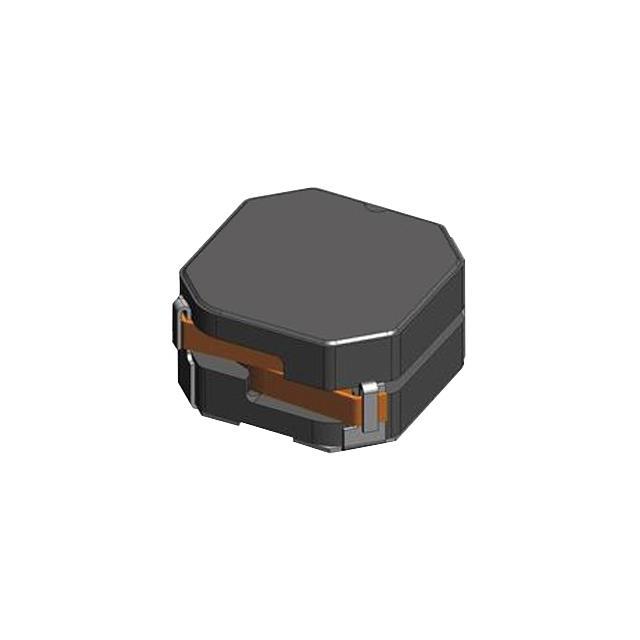

Murata Electronics 1274AS-H-5R6N=P3
Murata Electronics 1274AS-H-1R5N=P3	Shielded	Ferrite	0.394 in	0.394 in	10 mm	10 mm	0.197 in	5 mm	7.7 mOhm	100 kHz	15.3 A	30 %	1.5 µH	Nonstandard	Drum Core Wirewound	8.9 A	Surface Mount
Murata Electronics 1274AS-H-330M=P3	Shielded	Ferrite	0.394 in	0.394 in	10 mm	10 mm	0.197 in	5 mm	93.6 mOhm	100 kHz	3.5 A	20 %	33 µH	Nonstandard	Drum Core Wirewound	2.5 A	Surface Mount
Murata Electronics 1274AS-H-150M=P3	Shielded	Ferrite	0.394 in	0.394 in	10 mm	10 mm	0.197 in	5 mm	42.3 mOhm	100 kHz	5.1 A	20 %	15 µH	Nonstandard	Drum Core Wirewound	3.9 A	Surface Mount
Murata Electronics 1274AS-H-220M=P3	Shielded	Ferrite	0.394 in	0.394 in	10 mm	10 mm	0.197 in	5 mm		100 kHz	4.2 A	20 %	22 µH	Nonstandard	Drum Core Wirewound	2.9 A	Surface Mount	68.1 mOhm
Murata Electronics 1274AS-H-6R8N=P3	Shielded	Ferrite	0.394 in	0.394 in	10 mm	10 mm	0.197 in	5 mm		100 kHz	7.5 A	30 %	6.8 µH	Nonstandard	Drum Core Wirewound	5.4 A	Surface Mount	21.3 mOhm	85 °C	-40 C
Murata Electronics 1274AS-H-4R7N=P3	Shielded	Ferrite	0.394 in	0.394 in	10 mm	10 mm	0.197 in	5 mm		100 kHz	9.5 A	30 %	4.7 ÁH	Nonstandard	Drum Core Wirewound	6.7 A	Surface Mount	13.5 mOhm
Murata Electronics 1274AS-H-100M=P3	Shielded	Ferrite	0.394 in	0.394 in	10 mm	10 mm	0.197 in	5 mm		100 kHz	6.2 A	20 %	10 µH	Nonstandard	Drum Core Wirewound	4.4 A	Surface Mount
Murata Electronics 1274AS-H-3R3N=P3	Shielded	Ferrite	0.394 in	0.394 in	10 mm	10 mm	0.197 in	5 mm	11.4 mOhm	100 kHz	10.8 A	30 %	3.3 µH	Nonstandard	Drum Core Wirewound	7.4 A	Surface Mount
