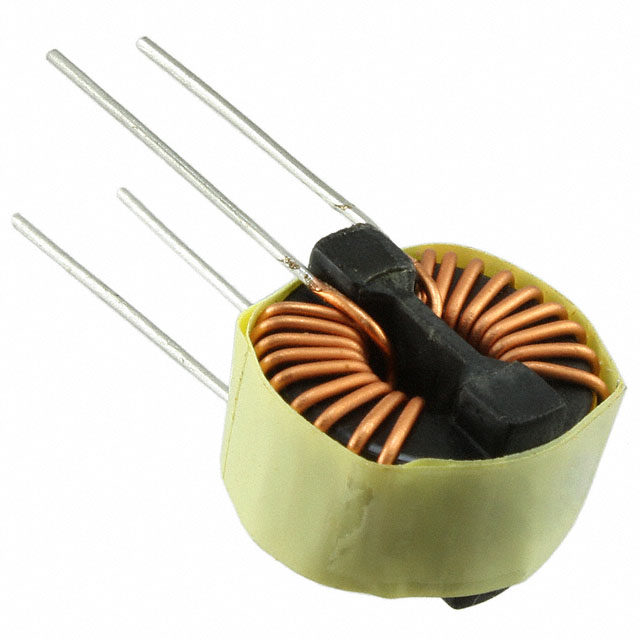

7110 Series
Manufacturer: Bourns Inc.
Beta
⌘K
CMC 510UH 3A 2LN TH
| Part | Height (Max) [Max] [diameter] | Height (Max) [Max] [diameter] | Inductance @ Frequency | DC Resistance (DCR) (Max) [Max] | Number of Lines | Current Rating (Max) [Max] | Operating Temperature [Min] | Operating Temperature [Max] | Size / Dimension [diameter] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [diameter] | Package / Case | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Bourns Inc. | 17.78 mm | 0.7 in | 1 kHz 510 µH | 20 mOhm | 2 | 3 A | -55 C | 105 ░C | 0.7 in | 13.97 mm | 0.55 in | 17.78 mm | Vertical No Base 4 PC Pin | Through Hole |
