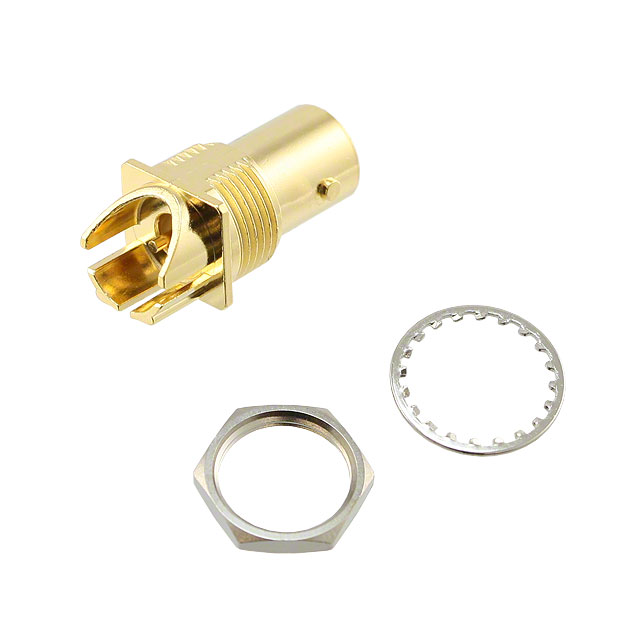

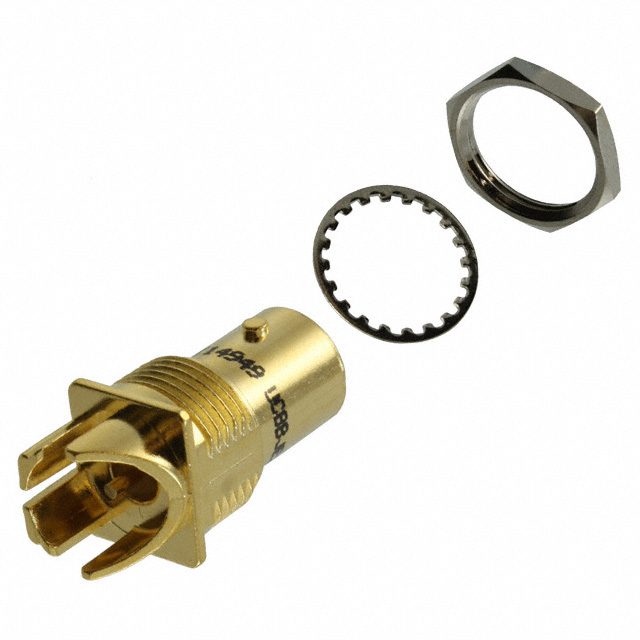

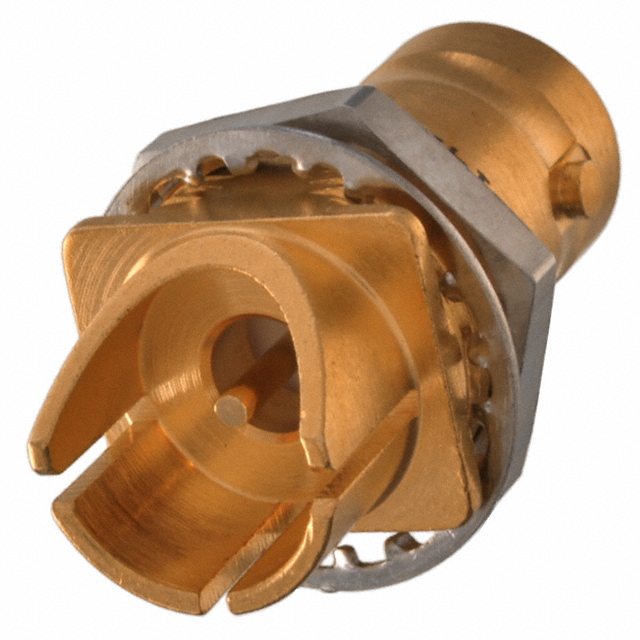

UCBBJE20 Series
Manufacturer: Cinch Connectivity Solutions Trompeter
Beta
⌘K
CONN BNC JACK STR 75OHM EDGE MNT
| Part | Includes | Dielectric Material | Body Finish | Operating Temperature [Min] | Operating Temperature [Max] | Body Material | Voltage Rating | Center Contact Plating | Shield Termination | Contact Termination | Mounting Feature | Number of Ports | Fastening Type | Connector Type | Frequency - Max [Max] | Impedance | Connector Style | Mounting Type | Housing Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Cinch Connectivity Solutions Trompeter | 1 Connector 1 Lockwasher 1 Nut | Polytetrafluoroethylene (PTFE) | Gold | -65 ░C | 165 °C | Brass | 500 V | Gold | Solder | Solder | Bulkhead - Front Side Nut | 1 | Bayonet Lock | Female Socket Jack | 4 GHz | 75 Ohms | BNC | Board Edge End Launch Panel Mount | Gold |
 Cinch Connectivity Solutions Trompeter | 1 Connector 1 Lockwasher 1 Nut | Polytetrafluoroethylene (PTFE) | Gold | -65 ░C | 165 °C | Brass | 500 V | Gold | Solder | Solder | Bulkhead - Front Side Nut | 1 | Bayonet Lock | Female Socket Jack | 4 GHz | 75 Ohms | BNC | Board Edge End Launch Panel Mount | Gold |
 Cinch Connectivity Solutions Trompeter | 1 Connector 1 Lockwasher 1 Nut | Polytetrafluoroethylene (PTFE) | Gold | -65 ░C | 165 °C | Brass | 500 V | Gold | Solder | Solder | Bulkhead - Front Side Nut | 1 | Bayonet Lock | Female Socket Jack | 4 GHz | 75 Ohms | BNC | Board Edge End Launch Panel Mount | Gold |
 Cinch Connectivity Solutions Trompeter | Nickel | -65 ░C | 165 °C | Brass | 500 V | Gold | Solder | Solder | 1 | Bayonet Lock | Female Socket Jack | 4 GHz | 75 Ohms | BNC | Board Edge End Launch | Silver |
