AMPMODU MTE Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

CONNECTOR HOUSING, MTE, PLUG, 4 POSITIONS, 2.54 MM, MTE HEADERS

...

Part	Number of Rows	Color	Number of Positions	Connector Type	Pitch	Pitch	Operating Temperature [Max]	Operating Temperature [Min]	Contact Termination	Contact Type	Mounting Type	Insulation Material	Fastening Type	Wire Gauge [Max]	Wire Gauge [Min]	Contact Finish	Cable Termination	Wire Type	Contact Finish Thickness	Contact Finish Thickness	Applications	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Post	Insulation Color	Contact Shape	Number of Positions Loaded	Contact Length - Post	Contact Length - Post	Contact Material	Current Rating (Amps)	Insulation Height [z]	Insulation Height [z]	Contact Finish - Mating	Termination	Pitch - Mating	Pitch - Mating	Contact Length - Mating	Contact Length - Mating	Style	Material Flammability Rating	Features	Shrouding	Overall Contact Length [x]	Overall Contact Length [x]	Insulation Height	Insulation Height	Pin or Socket
TE Connectivity AMP Connectors 103653-3	1	Black	4	Plug	0.1 "	2.54 mm	105 ░C	-65 ░C	Crimp	Male Pin	Free Hanging (In-Line)	Polybutylene Terephthalate (PBT)	Latch Holder
TE Connectivity AMP Connectors 104922-4	1	Black	5	Receptacle	0.1 "	2.54 mm				Female Socket	Free Hanging (In-Line)		Latch Lock	26 AWG	22 AWG	Tin	Crimp	Discrete	2.54 µm	100 µin
TE Connectivity AMP Connectors 5-103635-4	1		5	Header			105 ░C	-65 ░C		Male Pin	Right Angle Through Hole	Thermoplastic	Latch Holder								Automotive General Purpose Medical Telecommunications	2.54 µm	100 µin	0.38 µm	15 µin	Tin	Black	Square	All	0.13 "	3.3 mm	Brass	3 A	0.2 in	5.08 mm	Gold	Solder	0.1 "	2.54 mm	0.23 in	5.84 mm	Board to Board Cable	UL94 V-0	Keying Slot	Shrouded - 4 Wall
TE Connectivity AMP Connectors 103906-9	1		10	Header			105 ░C	-65 ░C		Male Pin	Right Angle Through Hole	Thermoplastic	Latch Holder											0.76 Ám	30 Áin	Tin-Lead	Black	Square	All	0.13 "	3.3 mm	Brass	3 A	0.2 in	5.08 mm	Gold	Solder	0.1 "	2.54 mm	0.23 in	5.84 mm	Board to Board Cable	UL94 V-0	Keying Slot	Shrouded - 4 Wall
TE Connectivity AMP Connectors 1-103957-0	1	Black	11	Receptacle	0.1 "	2.54 mm				Female Socket	Free Hanging (In-Line)		Latch Lock	26 AWG	22 AWG	Gold	IDC	Discrete Ribbon Cable	0.38 µm	15 µin																								Closed End
TE Connectivity AMP Connectors 5-104363-1	1		2	Header			105 ░C	-65 ░C		Male Pin	Through Hole	Thermoplastic	Latch Holder								Automotive General Purpose Medical Telecommunications	2.54 µm	100 µin	0.38 µm	15 µin	Tin	Black	Square	All	0.13 "	3.3 mm	Brass	3 A			Gold	Solder	0.1 "	2.54 mm	0.23 in	5.84 mm	Board to Board Cable	UL94 V-0	Keying Slot	Shrouded - 4 Wall	13.97 mm	0.55 in	13.6 mm	0.535 in

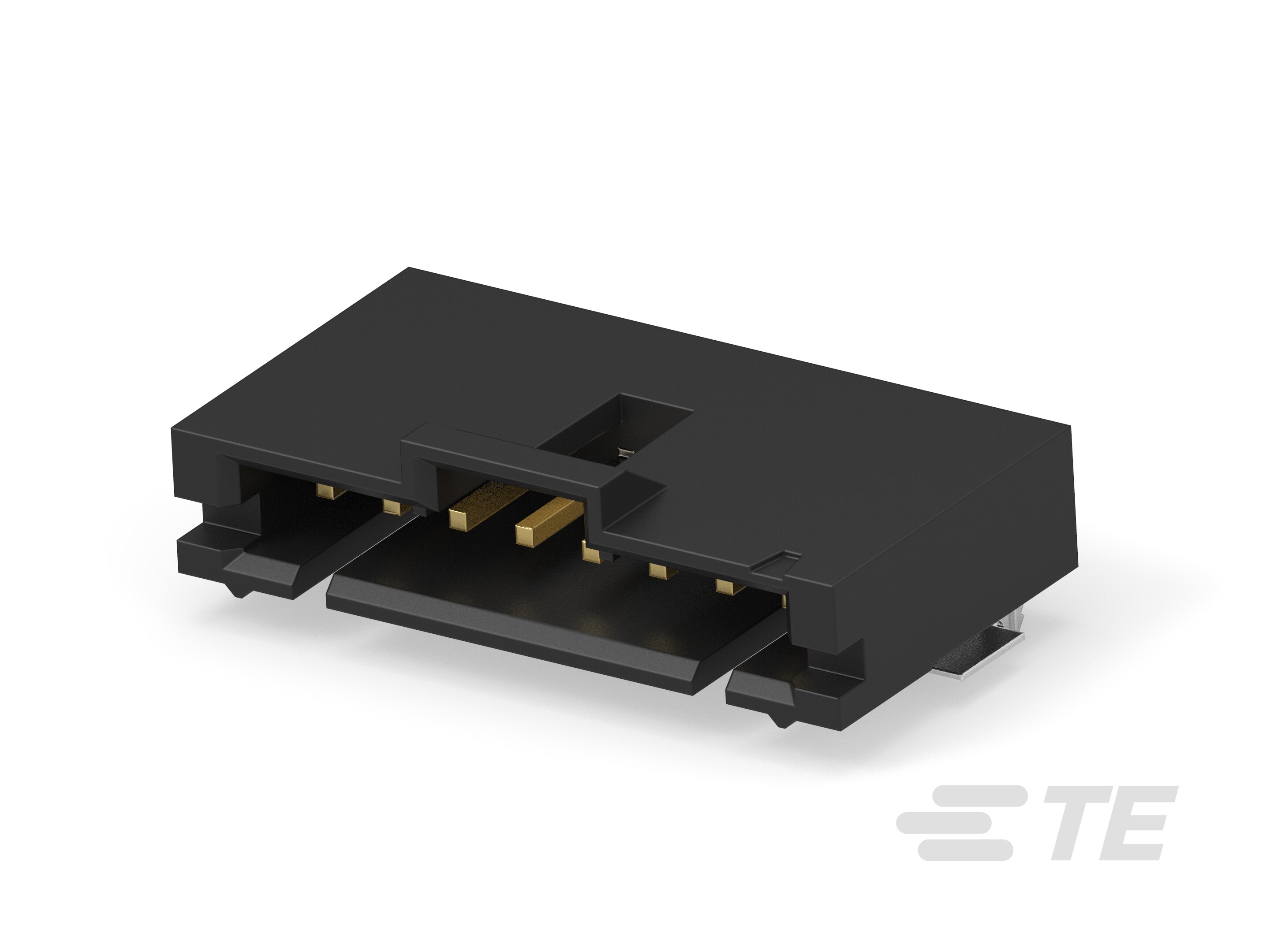

TE Connectivity AMP Connectors 5-147323-7	1		8	Header			105 ░C	-65 ░C		Male Pin	Right Angle Surface Mount	Thermoplastic	Latch Holder											0.76 Ám	30 Áin	Tin	Black	Square	All			Brass	3 A	0.2 in	5.08 mm	Gold	Solder	0.1 "	2.54 mm	0.23 in	5.84 mm	Board to Board Cable	UL94 V-0	Board Lock Keying Slot Solder Retention	Shrouded - 4 Wall
TE Connectivity AMP Connectors 5-104505-3									Crimp					26 AWG	22 AWG	Tin			2.54 µm	100 µin																														Pin
TE Connectivity AMP Connectors 5-103671-4	1		5	Header			105 ░C	-65 ░C		Male Pin	Through Hole	Liquid Crystal Polymer (LCP)	Latch Holder								Automotive General Purpose Medical Telecommunications	2.54 µm	100 µin	2.54 çm	100 çin	Tin	Black	Square	All	0.13 "	3.3 mm	Brass		0.2 in	5.08 mm		Solder	0.1 "	2.54 mm	0.23 in	5.84 mm	Board to Board Cable	UL94 V-0	Board Lock Keying Slot	Shrouded - 4 Wall

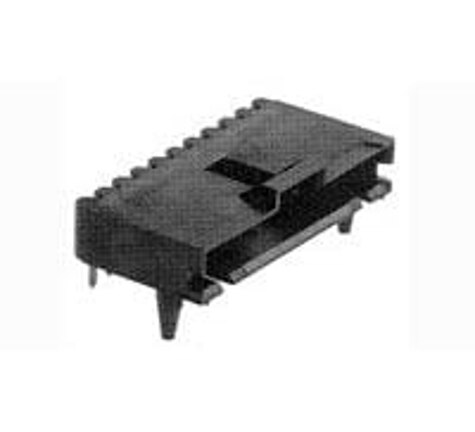

TE Connectivity AMP Connectors 5-104361-8	1		9	Header			105 ░C	-65 ░C		Male Pin	Right Angle Through Hole	Thermoplastic	Latch Holder											0.38 µm	15 µin	Tin	Black	Square	All	0.145 in	3.68 mm	Brass	3 A	0.2 in	5.08 mm	Gold	Solder	0.1 "	2.54 mm	0.23 in	5.84 mm	Board to Board Cable	UL94 V-0	Board Lock Keying Slot	Shrouded - 4 Wall
