JWM11R Series

Catalog

SWITCH ROCKER SPST 10A 125V

Part	Electrical Life	Mechanical Life	Features	Actuator Marking	Circuit	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Actuator Type	Termination Style	Switch Function	Voltage Rating - AC	Ingress Protection	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Approval Agency	Color - Actuator/Cap	Current Rating (Amps)

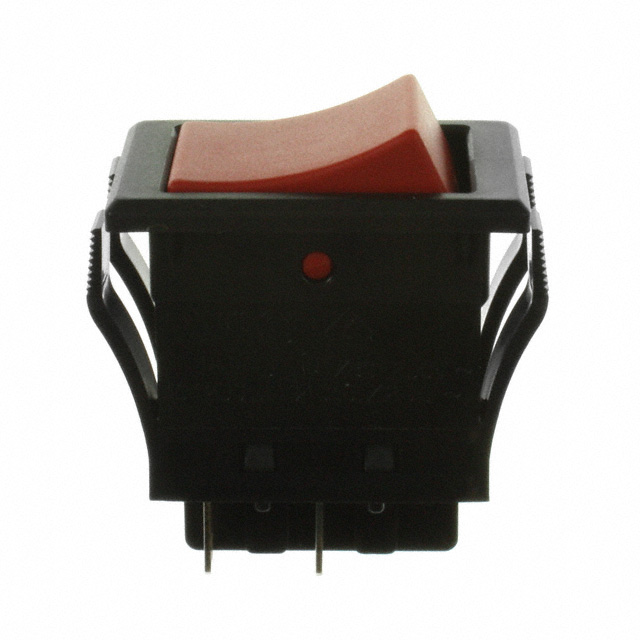

NKK Switches JWM11RCA/UCV	25000 Steps	25000 Steps	Epoxy Sealed Terminals	No Marking	SPST	15.4 mm	24 mm	Concave (Curved)	Solder Quick Connect - 0.110" (2.8mm)	On-Off	125 V	Dust Proof	Panel Mount Snap-In	-25 °C	70 °C	CSA UL VDE	Red	10 A
NKK Switches JWM11RC1A	25000 Steps	25000 Steps	Epoxy Sealed Terminals	O I	SPST	15.4 mm	24 mm	Concave (Curved)	Solder Quick Connect - 0.110" (2.8mm)	On-Off	125 V	Dust Proof	Panel Mount Snap-In	-25 °C	70 °C	CSA UL VDE	Red	10 A
NKK Switches JWM11RB2B	25000 Steps	25000 Steps	Epoxy Sealed Terminals	O -	SPST	15.4 mm	24 mm	Concave (Curved)	Solder Quick Connect - 0.110" (2.8mm)	On-Off	125 V	Dust Proof	Panel Mount Snap-In	-25 °C	70 °C	CSA UL VDE	Ivory	10 A
NKK Switches JWM11RA2H/UCV	25000 Steps	25000 Steps	Epoxy Sealed Terminals	O -	SPST	15.4 mm	24 mm	Concave (Curved)	Solder Quick Connect - 0.110" (2.8mm)	On-Off	125 V	Dust Proof	Panel Mount Snap-In	-25 °C	70 °C	CSA UL VDE	Black	10 A

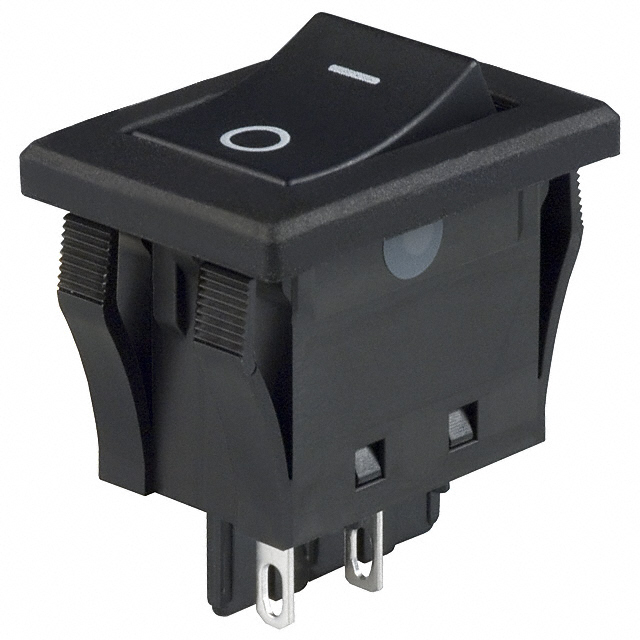

NKK Switches JWM11RA1A	25000 Steps	25000 Steps	Epoxy Sealed Terminals	O I	SPST	15.4 mm	24 mm	Concave (Curved)	Solder Quick Connect - 0.110" (2.8mm)	On-Off	125 V	Dust Proof	Panel Mount Snap-In	-25 °C	70 °C	CSA UL VDE	Black	10 A

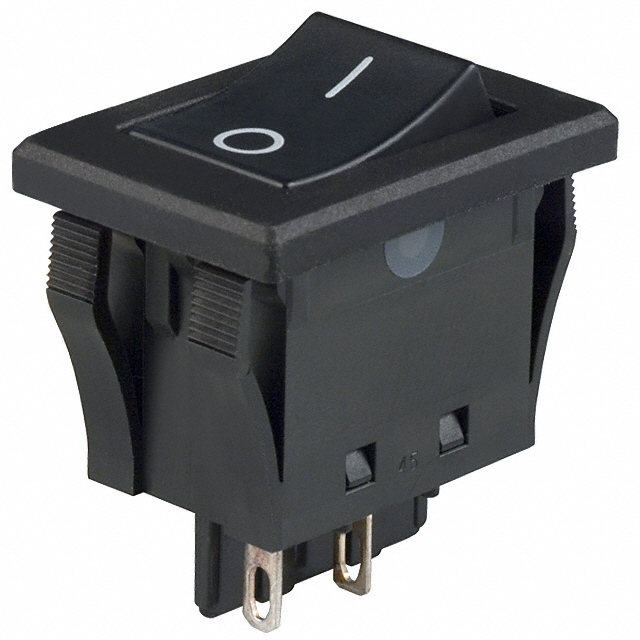

NKK Switches JWM11RA2A	25000 Steps	25000 Steps	Epoxy Sealed Terminals	O -	SPST	15.4 mm	24 mm	Concave (Curved)	Solder Quick Connect - 0.110" (2.8mm)	On-Off	125 V	Dust Proof	Panel Mount Snap-In	-25 °C	70 °C	CSA UL VDE	Black	10 A

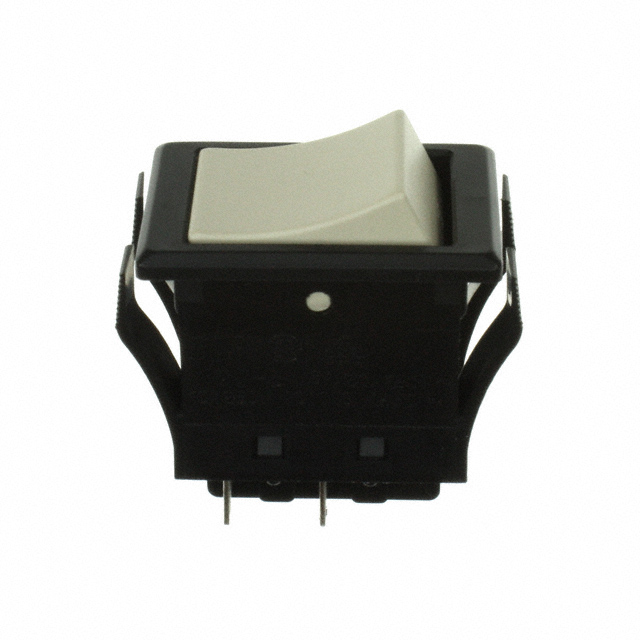

NKK Switches JWM11RBA/UCV	25000 Steps	25000 Steps	Epoxy Sealed Terminals	No Marking	SPST	15.4 mm	24 mm	Concave (Curved)	Solder Quick Connect - 0.110" (2.8mm)	On-Off	125 V	Dust Proof	Panel Mount Snap-In	-25 °C	70 °C	CSA UL VDE	Ivory	10 A

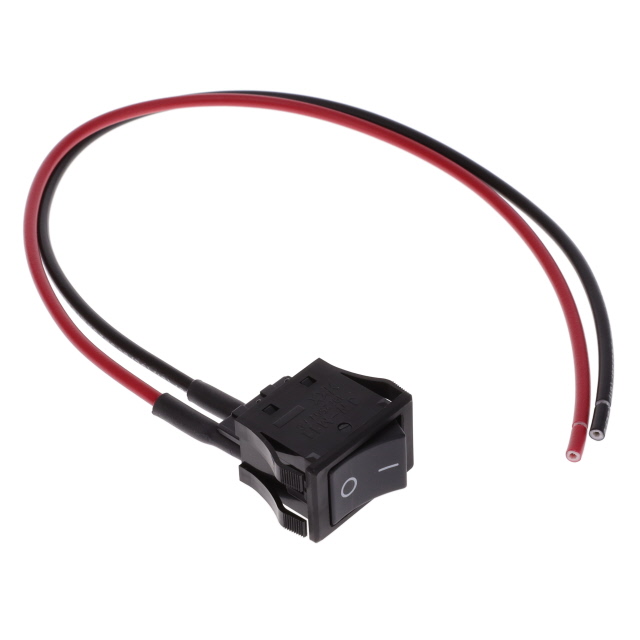

NKK Switches JWM11RA2A/UCV-WL	25000 Steps	25000 Steps		O -	SPST	15.4 mm	24 mm	Concave (Curved)	Wire Leads	On-Off	125 V	Dust Proof	Panel Mount Snap-In	-25 °C	70 °C	CSA UL VDE	Black	10 A

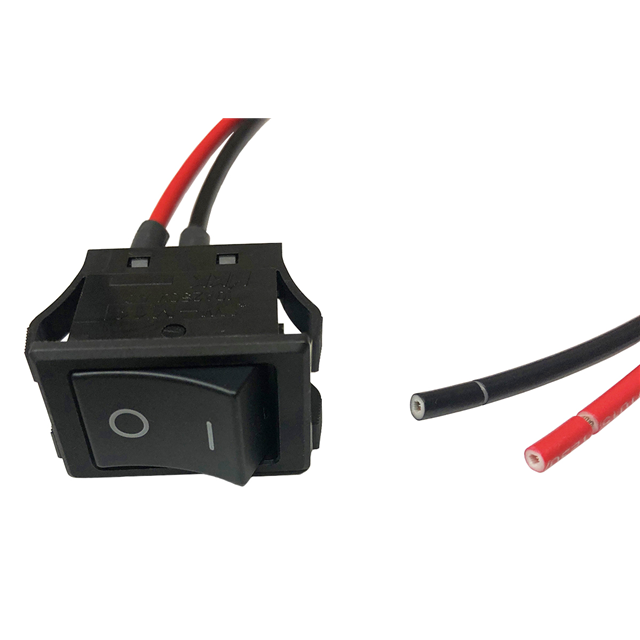

NKK Switches JWM11RA1A/UCV-WL	25000 Steps	25000 Steps		O I	SPST	15.4 mm	24 mm	Concave (Curved)	Wire Leads	On-Off	125 V	Dust Proof	Panel Mount Snap-In	-25 °C	70 °C	CSA UL VDE	Black	10 A
NKK Switches JWM11RBB/UCV	25000 Steps	25000 Steps	Epoxy Sealed Terminals	No Marking	SPST	15.4 mm	24 mm	Concave (Curved)	Solder Quick Connect - 0.110" (2.8mm)	On-Off	125 V	Dust Proof	Panel Mount Snap-In	-25 °C	70 °C	CSA UL VDE	Ivory	10 A
