ECQ-U3 Series

Manufacturer: Panasonic Industrial Automation Sales

Catalog

CAP FILM 10000PF 20% 300VAC RAD

Part	Lead Spacing	Lead Spacing	Package / Case	Mounting Type	Ratings	Dielectric Material	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Capacitance	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Tolerance	Operating Temperature [Max]	Operating Temperature [Min]	Applications	Termination	Voltage Rating - AC	Height - Seated (Max)	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Size / Dimension [y]
Panasonic Industrial Automation Sales ECQ-U3A103MGA	0.492 in	12.5 mm	Radial	Through Hole	X1	Polyester Metallized	12 mm	0.472 "	10000 pF	15 mm	0.197 "	0.591 in	5 mm	20 %	100 °C	-40 °C	EMI RFI Suppression	PC Pins	300 V
Panasonic Industrial Automation Sales ECQ-U3A104MGA	0.492 in	12.5 mm	Radial	Through Hole	X1	Polyester Metallized			100000 pF					20 %	100 °C	-40 °C	EMI RFI Suppression	PC Pins	300 V	15.5 mm	0.61 "
Panasonic Industrial Automation Sales ECQ-U3A153MG	0.492 in	12.5 mm	Radial	Through Hole	X1	Polyester Metallized	12 mm	0.472 "	15000 pF	15 mm	0.197 "	0.591 in	5 mm	20 %	100 °C	-40 °C	EMI RFI Suppression	PC Pins	300 V
Panasonic Industrial Automation Sales ECQ-U3A334MG	0.886 in	22.5 mm	Radial	Through Hole	X1	Polyester Metallized			0.33 µF	26 mm	0.354 in	1.024 in	9 mm	20 %	100 °C	-40 °C	EMI RFI Suppression	PC Pins	300 V		0.748 in	19 mm
Panasonic Industrial Automation Sales ECQ-U3A223MGA	0.492 in	12.5 mm	Radial	Through Hole	X1	Polyester Metallized	12 mm	0.472 "	0.022 µF	15 mm	0.197 "	0.591 in	5 mm	20 %	100 °C	-40 °C	EMI RFI Suppression	PC Pins	300 V

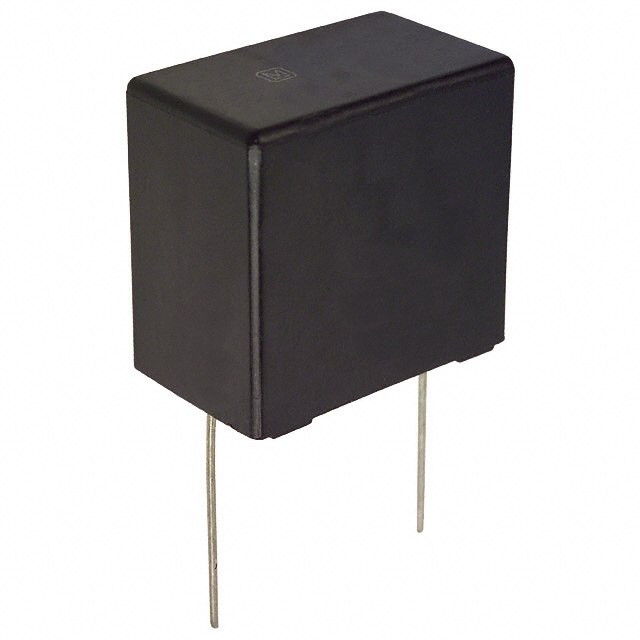

Panasonic Industrial Automation Sales ECQ-U3A105MGA	0.886 in	22.5 mm	Radial	Through Hole	X1	Polyester Metallized	30 mm	1.181 "	1 µF	1.063 " 27 mm			16.5 mm 16.51 mm	20 %	100 °C	-40 °C	EMI RFI Suppression	PC Pins	300 V

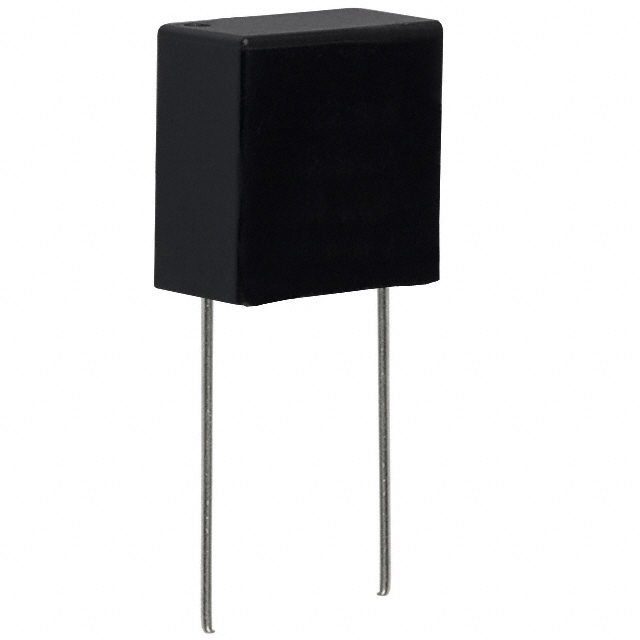

Panasonic Industrial Automation Sales ECQ-U3A224MG	0.591 in	15 mm	Radial	Through Hole	X1	Polyester Metallized		0.709 "	0.22 µF	18 mm	0.354 in	0.709 in		20 %	100 °C	-40 °C	EMI RFI Suppression	PC Pins	300 V			18 mm	9 mm
Panasonic Industrial Automation Sales ECQ-U3A333MG	0.492 in	12.5 mm	Radial	Through Hole	X1	Polyester Metallized	13.5 mm	0.532 "	0.033 çF	15 mm	0.236 in	0.591 in	6 mm	20 %	100 °C	-40 °C	EMI RFI Suppression	PC Pins	300 V
Panasonic Industrial Automation Sales ECQ-U3A104MG	0.492 in	12.5 mm	Radial	Through Hole	X1	Polyester Metallized			100000 pF					20 %	100 °C	-40 °C	EMI RFI Suppression	PC Pins	300 V	15.5 mm	0.61 "
Panasonic Industrial Automation Sales ECQ-U3A474MGA	0.886 in	22.5 mm	Radial	Through Hole	X1	Polyester Metallized			0.47 µF	26 mm	0.413 in	1.024 in	10.5 mm	20 %	100 °C	-40 °C	EMI RFI Suppression	PC Pins	300 V		0.807 "	20.5 mm
