745-015 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE SINGLE FML 15POS 0.100

Part	Termination Rows	Material - Insulation	Contact Type	Pitch	Pitch	Contact Finish Thickness	Contact Finish Thickness	Termination	Color	Contact Material	Contact Finish	Card Type	Card Thickness [Max]	Card Thickness [Min]	Mounting Type	Number of Positions	Number of Rows	Read Out	Operating Temperature [Min]	Operating Temperature [Max]	Gender	Number of Positions/Bay/Row

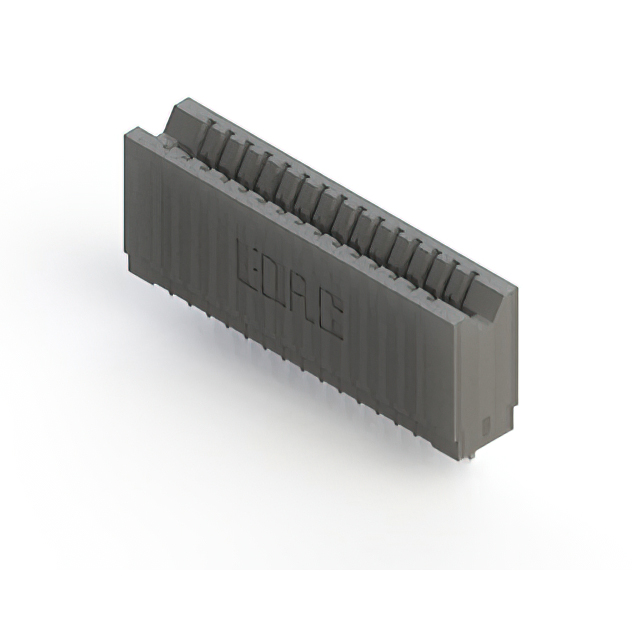

EDAC Inc. 745-015-522-106	1	Polyester Thermoplastic	Cantilever	0.1 "	2.54 mm	30 Áin	0.76 Ám	Press-Fit	Black	Copper Alloy	Gold	Non Specified - Single Edge	0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole	15	1	Single	-40 C	105 ░C	Female	15
EDAC Inc. 745-015-545-101	1	Polyester Thermoplastic	Cantilever	0.1 "	2.54 mm	30 Áin	0.76 Ám	Press-Fit	Black	Copper Alloy	Gold	Non Specified - Single Edge	0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole	15	1	Single	-40 C	105 ░C	Female	15
EDAC Inc. 745-015-522-101	1	Polyester Thermoplastic	Cantilever	0.1 "	2.54 mm	30 Áin	0.76 Ám	Press-Fit	Black	Copper Alloy	Gold	Non Specified - Single Edge	0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole	15	1	Single	-40 C	105 ░C	Female	15
EDAC Inc. 745-015-540-101	1	Polyester Thermoplastic	Cantilever	0.1 "	2.54 mm	30 Áin	0.76 Ám	Press-Fit Wire Wrap	Black	Copper Alloy	Gold	Non Specified - Single Edge	0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole	15	1	Single	-40 C	105 ░C	Female	15

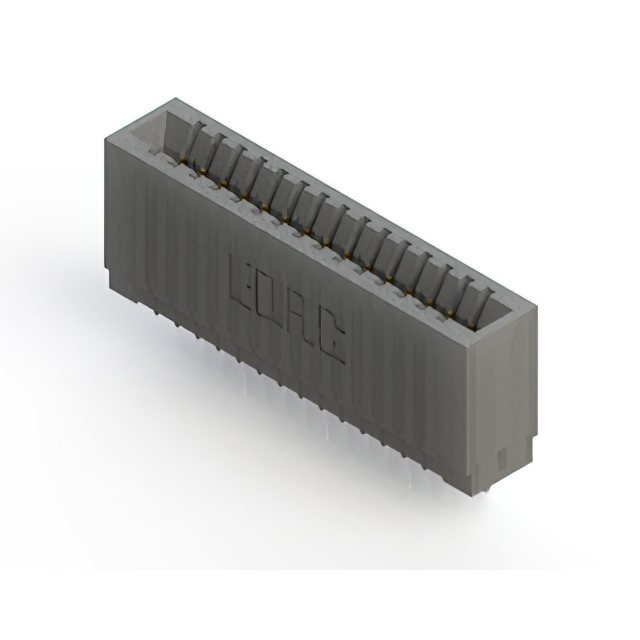

EDAC Inc. 745-015-525-101	1	Polyester Thermoplastic	Cantilever	0.1 "	2.54 mm	30 Áin	0.76 Ám	Press-Fit	Black	Copper Alloy	Gold	Non Specified - Single Edge	0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole	15	1	Single	-40 C	105 ░C	Female	15
EDAC Inc. 745-015-545-106	1	Polyester Thermoplastic	Cantilever	0.1 "	2.54 mm	30 Áin	0.76 Ám	Press-Fit	Black	Copper Alloy	Gold	Non Specified - Single Edge	0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole	15	1	Single	-40 C	105 ░C	Female	15
EDAC Inc. 745-015-541-106	1	Polyester Thermoplastic	Cantilever	0.1 "	2.54 mm	30 Áin	0.76 Ám	Press-Fit Wire Wrap	Black	Copper Alloy	Gold	Non Specified - Single Edge	0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole	15	1	Single	-40 C	105 ░C	Female	15
EDAC Inc. 745-015-520-106	1	Polyester Thermoplastic	Cantilever	0.1 "	2.54 mm	30 Áin	0.76 Ám	Press-Fit	Black	Copper Alloy	Gold	Non Specified - Single Edge	0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole	15	1	Single	-40 C	105 ░C	Female	15

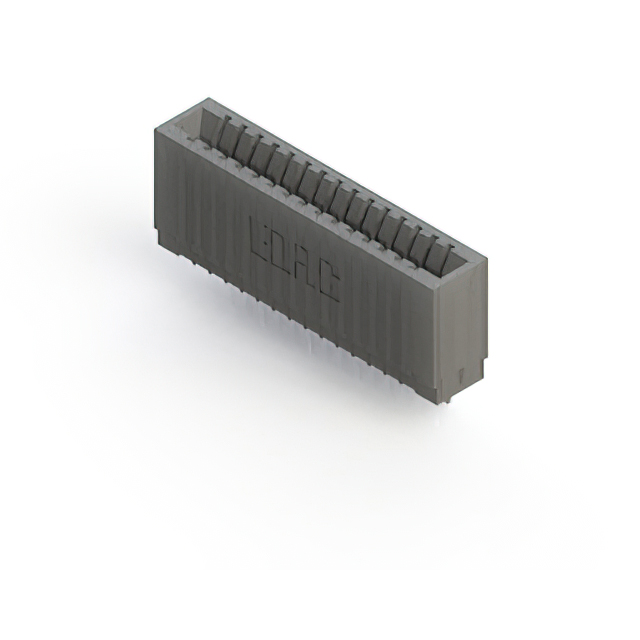

EDAC Inc. 745-015-541-101	1	Polyester Thermoplastic	Cantilever	0.1 "	2.54 mm	30 Áin	0.76 Ám	Press-Fit Wire Wrap	Black	Copper Alloy	Gold	Non Specified - Single Edge	0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole	15	1	Single	-40 C	105 ░C	Female	15
EDAC Inc. 745-015-525-106	1	Polyester Thermoplastic	Cantilever	0.1 "	2.54 mm	30 Áin	0.76 Ám	Press-Fit	Black	Copper Alloy	Gold	Non Specified - Single Edge	0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole	15	1	Single	-40 C	105 ░C	Female	15
