8168 Series
Manufacturer: Belden Inc.
Beta
⌘K

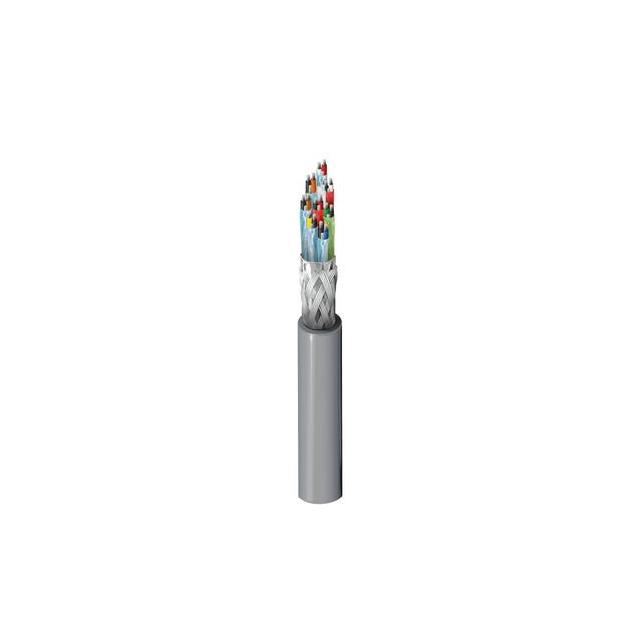

MULTI-PAIR 16COND 24AWG
| Part | Shield Coverage | Shield Material | Number of Conductors | Jacket Color | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Ratings | Jacket (Insulation) Material | Voltage | Conductor Strand [custom] | Conductor Strand [custom] | Usage | Length | Length | Wire Gauge | Conductor Insulation | Shield Type | Cable Type | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Conductor Material | Operating Temperature [Max] | Operating Temperature [Min] | Features | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | 65 % 100 % | Aluminum Copper Tinned | 16 | Chrome | 1.219 mm | 0.048 in | UL Style 2493 | Poly-Vinyl Chloride (PVC) | 300 VDC | 7 | 32 AWG | Computer | 304.8 m | 1000 ft | 24 AWG | Foam Polyethylene (FPE) | Braid Foil | Multi-Pair | 0.479 " | 12.17 mm | Copper Tinned | 60 °C | -40 C | Drain Wire | ||
Belden Inc. | 65 % 100 % | Aluminum Copper Tinned | 16 | Chrome | 1.219 mm | 0.048 in | UL Style 2493 | Poly-Vinyl Chloride (PVC) | 300 VDC | 7 | 32 AWG | Computer | 152.4 m | 500 ft | 24 AWG | Foam Polyethylene (FPE) | Braid Foil | Multi-Pair | 0.479 " | 12.17 mm | Copper Tinned | 60 °C | -40 C | Drain Wire | ||
 Belden Inc. | 65 % 100 % | Aluminum Copper Tinned | 16 | Chrome | 1.219 mm | 0.048 in | UL Style 2493 | Poly-Vinyl Chloride (PVC) | 7 | 32 AWG | Computer | 24 AWG | Foam Polyethylene (FPE) | Braid Foil | Multi-Pair | 0.479 " | 12.17 mm | Copper Tinned | 60 °C | -40 C | Drain Wire | 100 ft | 30.5 m |
