LB26SGW Series

Catalog

STANDARD SIZE PANEL SEAL PUSHBUTTON

Part	Mechanical Life	Electrical Life	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Color - Actuator/Cap	Voltage Rating - AC	Termination Style	Operating Temperature [Max]	Operating Temperature [Min]	Type	Illumination Type, Color	Actuator Marking	Mounting Type	Voltage Rating - DC	Switch Function	Circuit	Actuator Type	Illumination Voltage (Nominal)	Current Rating (Amps)
NKK Switches LB26SGW01-5C-JC	200000 Cycles	100000 Cycles	16.2 mm	16.2 mm	Clear	125 V	Solder Quick Connect - 0.110" (2.8mm)	50 °C	-25 °C	Illuminated Standard	LED Red	No Marking	Panel Mount Snap-In	30 V	On-On	DPDT	Button Square	1.9 VDC	3 A
NKK Switches LB26SGW01/U	200000 Cycles	100000 Cycles	16.2 mm	16.2 mm		125 V	Solder Quick Connect - 0.110" (2.8mm)	70 °C	-25 °C	Standard		No Marking	Panel Mount Snap-In	30 V	On-On	DPDT	Plunger for Cap		3 A

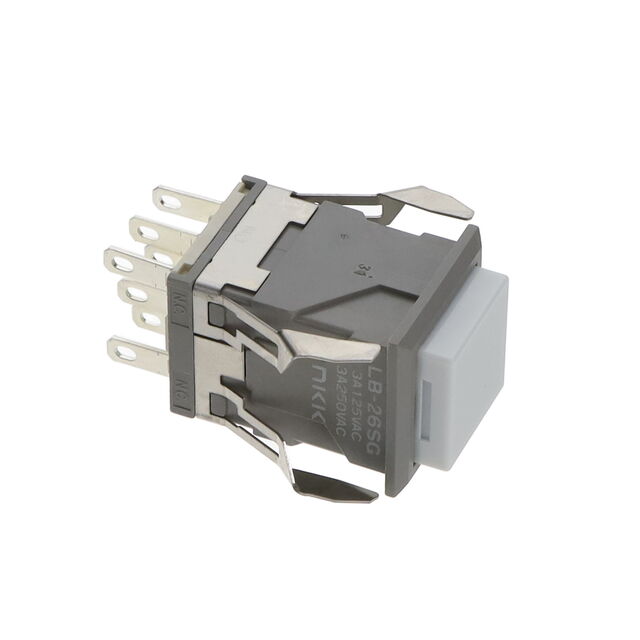

NKK Switches LB26SGW01-B	200000 Cycles	100000 Cycles	16.2 mm	16.2 mm	White	125 V	Solder Quick Connect - 0.110" (2.8mm)	70 °C	-25 °C	Standard		No Marking	Panel Mount Snap-In	30 V	On-On	DPDT	Button Square		3 A
NKK Switches LB26SGW01-5F-JF	200000 Cycles	100000 Cycles	16.2 mm	16.2 mm	Clear	125 V	Solder Quick Connect - 0.110" (2.8mm)	50 °C	-25 °C	Illuminated Standard	Green LED	No Marking	Panel Mount Snap-In	30 V	On-On	DPDT	Button Square	2.1 VDC	3 A
NKK Switches LB26SGW01-5C05-JC	200000 Cycles	100000 Cycles	16.2 mm	16.2 mm	Clear	125 V	Solder Quick Connect - 0.110" (2.8mm)	50 °C	-25 °C	Illuminated Standard	LED Red	No Marking	Panel Mount Snap-In	30 V	On-On	DPDT	Button Square	5 VDC	3 A
NKK Switches LB26SGW01-G	200000 Cycles	100000 Cycles	16.2 mm	16.2 mm	Blue	125 V	Solder Quick Connect - 0.110" (2.8mm)	70 °C	-25 °C	Standard		No Marking	Panel Mount Snap-In	30 V	On-On	DPDT	Button Square		3 A

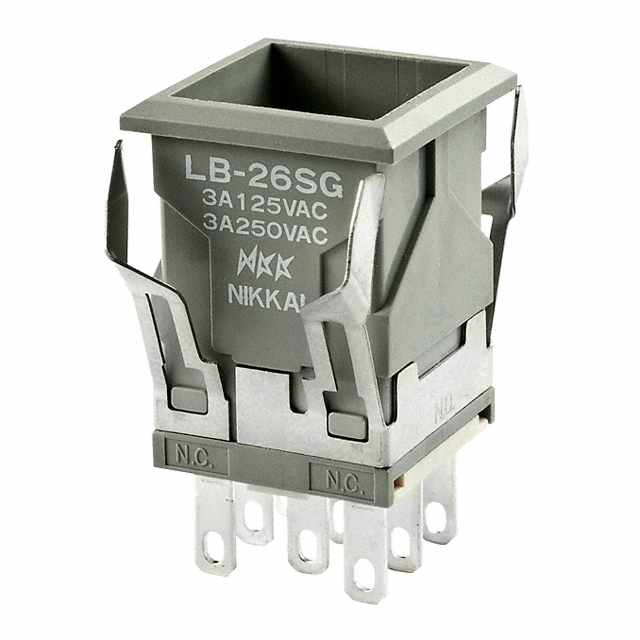

NKK Switches LB26SGW01	200000 Cycles	100000 Cycles	16.2 mm	16.2 mm		125 V	Solder Quick Connect - 0.110" (2.8mm)	70 °C	-25 °C	Standard		No Marking	Panel Mount Snap-In	30 V	On-On	DPDT	Plunger for Cap		3 A
NKK Switches LB26SGW01-A	200000 Cycles	100000 Cycles	16.2 mm	16.2 mm	Black	125 V	Solder Quick Connect - 0.110" (2.8mm)	70 °C	-25 °C	Standard		No Marking	Panel Mount Snap-In	30 V	On-On	DPDT	Button Square		3 A
